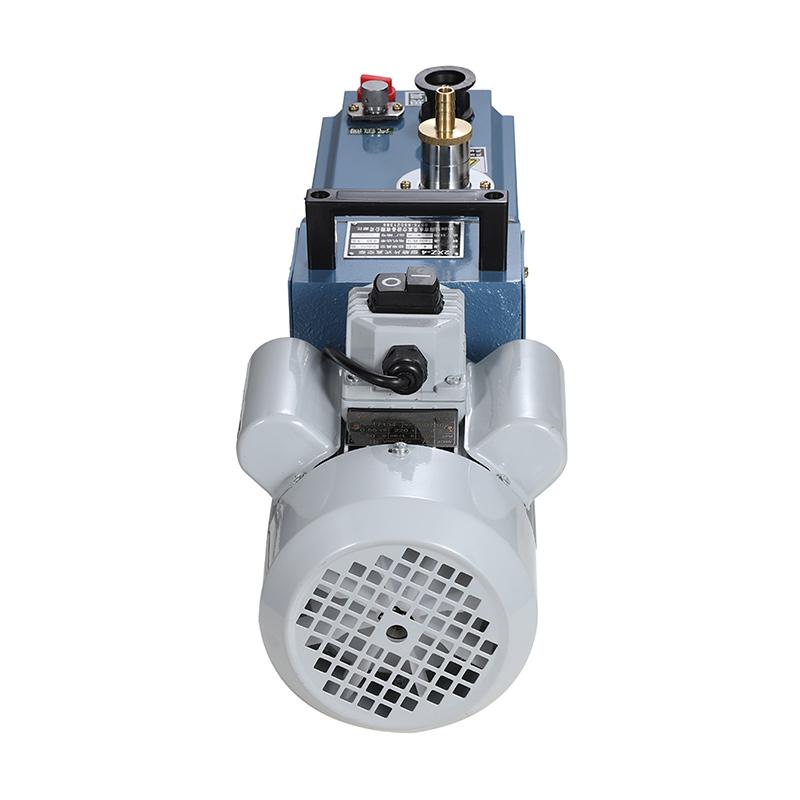

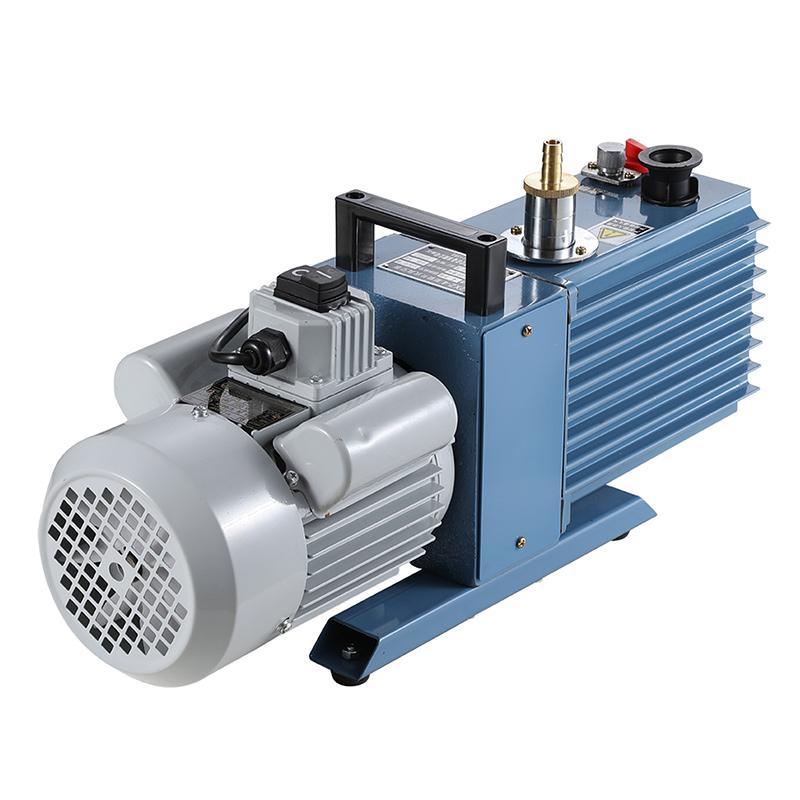

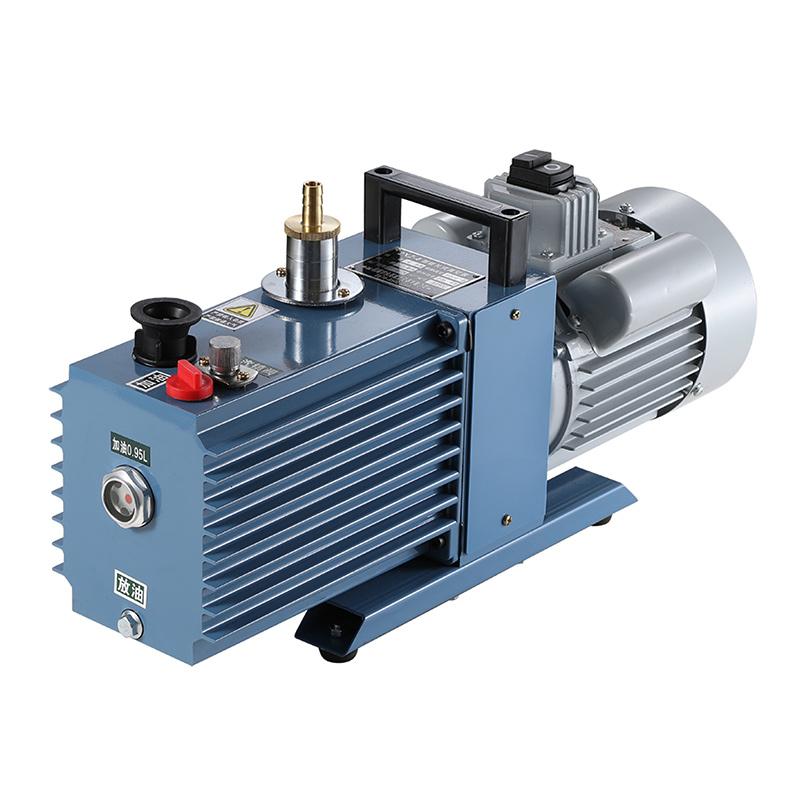

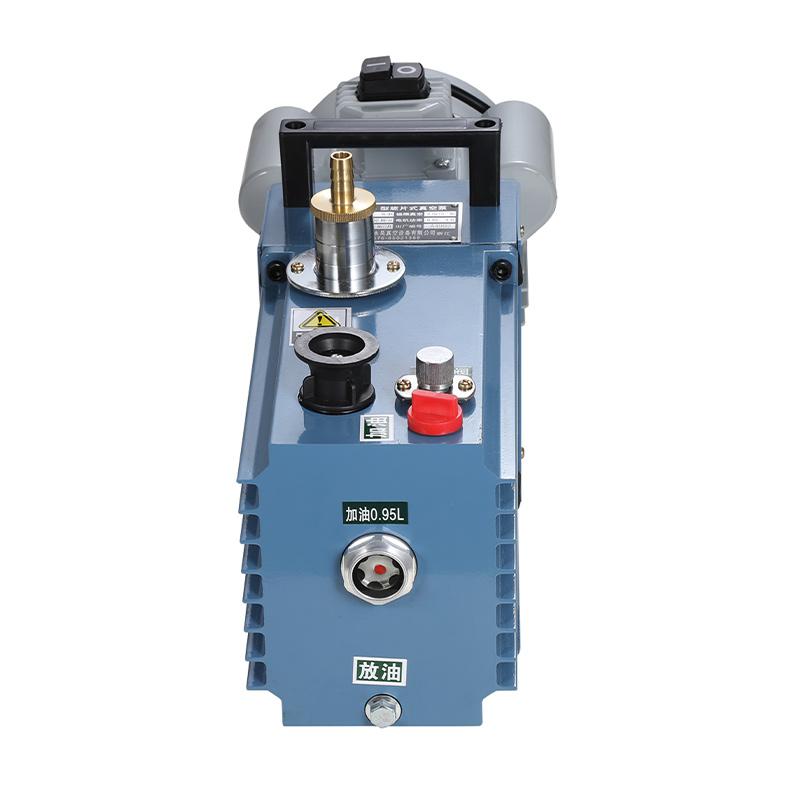

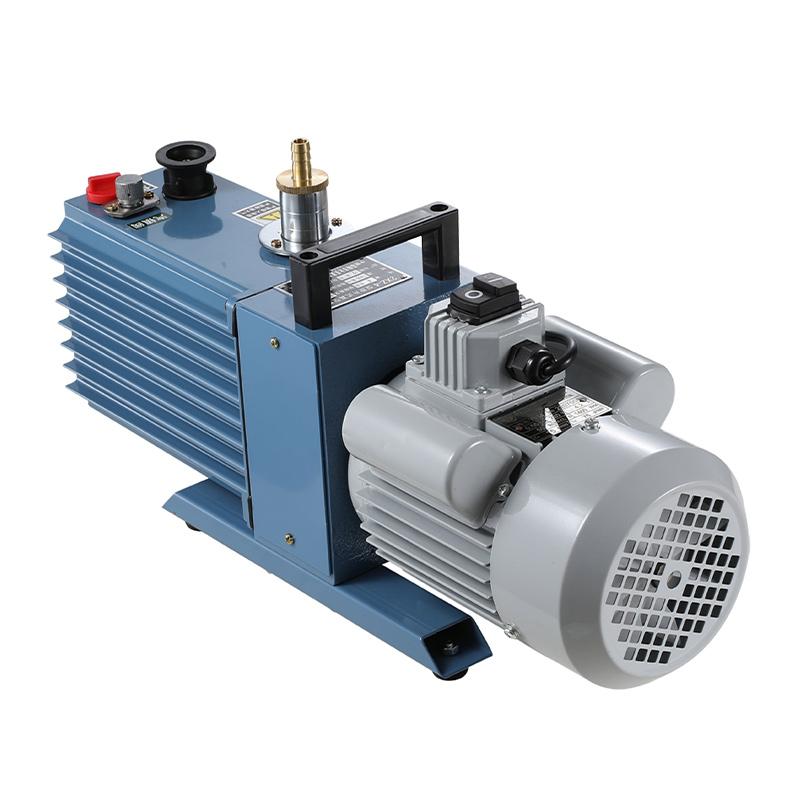

Yonghao vacuum 2XZ-4 direct-connected rotary vane Vacuum Pump 380V low noise and anti-oil return

2XZ-4（380V）

Direct-coupled rotary vane Vacuum Pump

The pumping speed is 4L/S, the noise is only 64dBA, the special gas ballast valve design is used to prevent the pump oil from mixing, and the automatic double anti-return oil device is equipped, which is small in size and light in weight.

Product Overview:

This series of pumps is the basic equipment used to pump gas from sealed containers. It can be used alone, or it can be used for booster pumps, diffusion pumps, molecular pump pre-pumps, maintenance pumps, bowl pumps for pre-pumps, vacuum drying, freeze drying, vacuum degassing, vacuum packaging, vacuum adsorption, vacuum forming, coating, food packaging, printing, sputtering, vacuum casting, instruments, instrument support, refrigerators, air conditioning lines and laboratories and other vacuum operations and supporting use.

Features

◆Low noise is achieved through thorough low-noise design and precise processing

◆Specially designed gas ballast valve is prepared to prevent pump oil mixing and extend the use time of pump oil

◆Designed with international similar products, small size, light weight, low noise, and easy start

◆It is equipped with an automatic double anti-oil return safety device, which does not return oil

◆It can be equipped with small diameter adapters, KF interfaces, and flange interfaces.

Product Use:

• Freeze dryer, rotary evaporator, vacuum dryer

• Centrifugal concentrator, glove box, tube furnace, double row tube

• Extraction, coating, and sputtering equipment

• A variety of high vacuum backing pumps

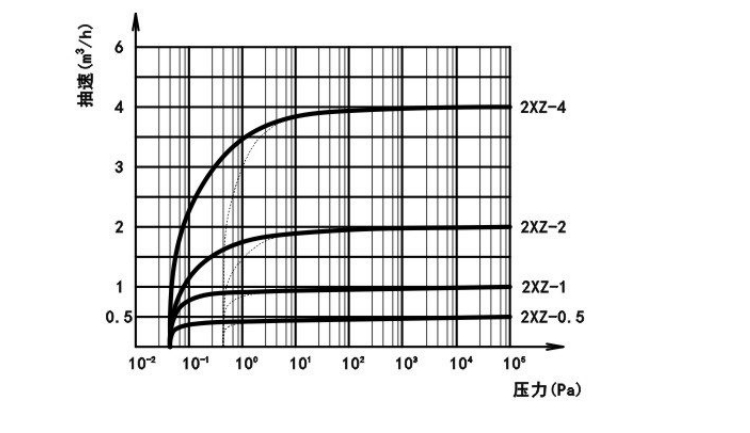

Pumping rate curve

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
