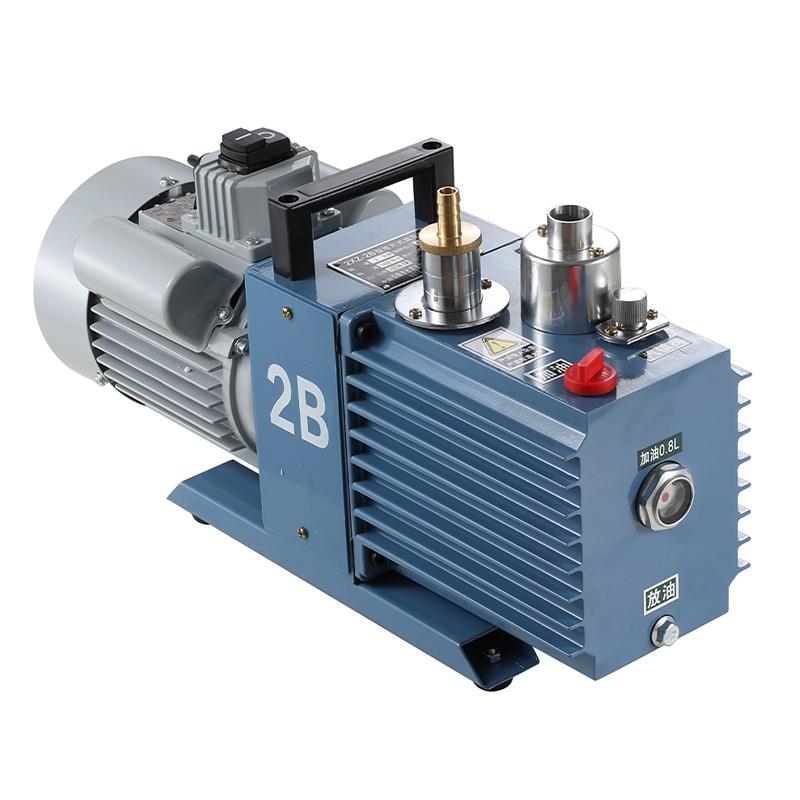

Yonghao vacuum 2XZ-2B direct-connected rotary vane Vacuum Pump 380V pumping speed 2L/S

2XZ-2B（380V）

Direct-coupled rotary vane Vacuum Pump

The pumping speed is 2L/S, the ultimate pressure is less than or equal to 6x10-1Pa, an oil pump forced oil inlet device is adopted, and a gas ballast valve is equipped to prevent the pump oil from mixing with water, which can operate continuously.

Product Overview:

This series of pumps is suitable for pumping air and other general gases. The oil pump is used to force the oil inlet, and the pressure at the inlet is ≤ 1.33x10^3, it can still operate continuously. It can be used alone, or can be used for booster pumps, diffusion pumps, molecular pump backing pumps, maintenance pumps, titanium pumps for pre-pumping, widely used in vacuum metallurgy, vacuum coating, vacuum drying, freeze drying, vacuum degassing, vacuum packaging, vacuum adsorption, vacuum forming, food packaging, printing, sputtering, vacuum casting, photovoltaic, aviation science and technology, chemical, electronics, refrigerators, air conditioning lines and laboratories and other vacuum operations and supporting use.

Features

Specially designed gas ballast valve is formulated to prevent pump oil mixing and extend the service life of pump oil

◆High pumping efficiency, high ultimate vacuum and long service life

◆Equipped with an automatic anti-oil return check valve, no oil return

◆It can be equipped with small diameter adapters, KF interfaces, and flange interfaces

◆When suctioning vapors, particles, and corrosive gases, auxiliary equipment must be installed at the inlet of the pump, such as condensers, dust collectors, etc

Product Use:

• Freeze dryer, rotary evaporator, vacuum dryer, cleaning machine

• Centrifugal concentrator, glove box, tube furnace, double row tube

• Extraction, coating, and sputtering equipment

• A variety of high vacuum backing pumps

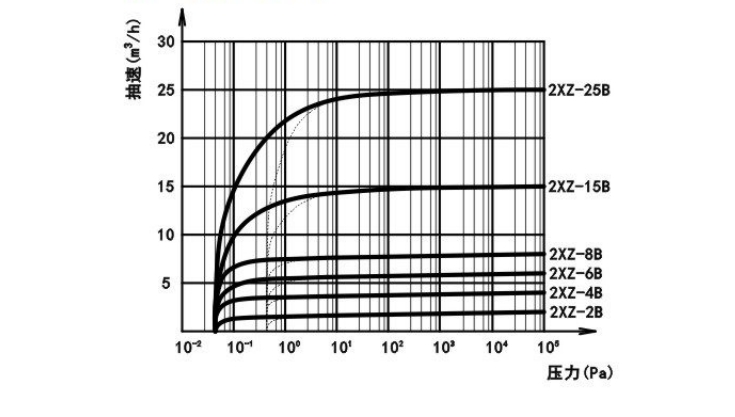

Pumping rate curve

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
