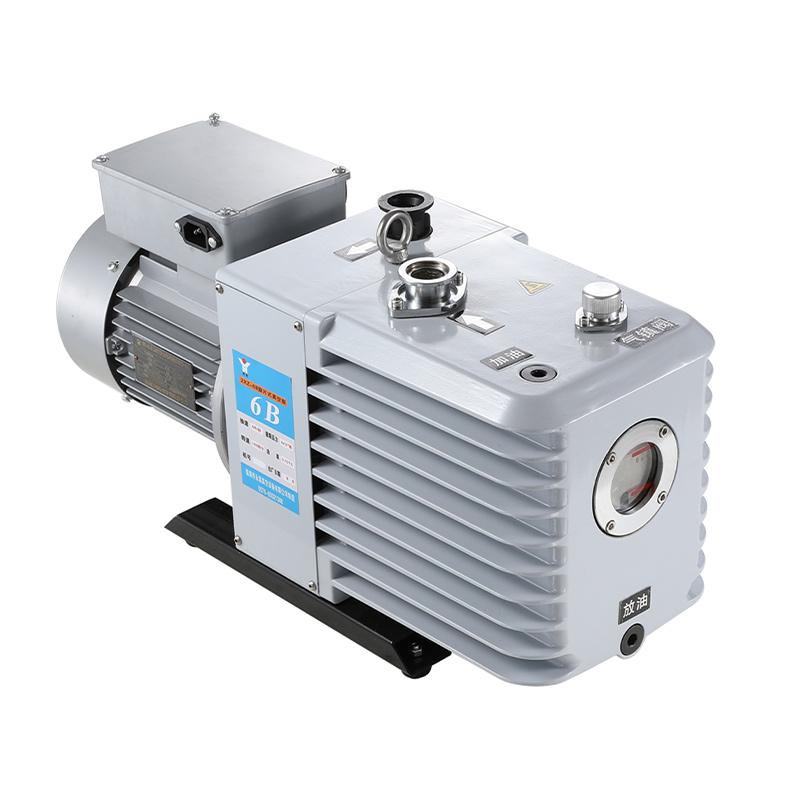

Yonghao vacuum 2XZ-6B direct-connected rotary vane Vacuum Pump, oil pump forced oil feeding device

SE
Pumping speed 6L/S, ultimate pressure ≤ 6x10-1Pa, equipped with gas ballast valve to prevent pump oil from mixing, can be connected to a variety of interfaces and adapted to a variety of auxiliary equipment.
$651.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con

YongHao vacuum 2XZ-6B（220V） Direct-coupled rotary vane Vacuum PumpSPEC

YongHao vacuum 2XZ-6B（220V） Direct-coupled rotary vane Vacuum PumpDetails

YongHao vacuum 2XZ-6B（220V） Direct-coupled rotary vane Vacuum PumpPacking list

SKU
NB050163
pumping speed
6(21.6)L/S(m3/h)
Ultimate pressure (pa) gas ballast
≤6x 10-1(0.006mbar)
Ultimate pressure (pa) open gas town
≤6 (0.06mbar)
Rotation speed 50Hz
1400(r/min)
Rotation speed 60Hz
1700(r/min)
Operating Voltage
220V
Motor Power
0.75Kw
Outer diameter of air inlet
Ф12/10(mm) KF-25
noise value
63dB(A)
oil Capacity
1.8-2.2L
Dimension
565x200x298mm
Gross Weight/Net Weight
44/40(KG)
2XZ-6B（220V）
Direct-coupled rotary vane Vacuum Pump
Pumping speed 6L/S, ultimate pressure ≤ 6x10-1Pa, equipped with gas ballast valve to prevent pump oil from mixing, can be connected to a variety of interfaces and adapted to a variety of auxiliary equipment.
Yonghao vacuum 2XZ-6B direct-connected rotary vane Vacuum Pump, oil pump forced oil feeding device Picture

Product Overview:

This series of pumps is suitable for pumping air and other general gases. The oil pump is used to force the oil inlet, and the pressure at the inlet is ≤ 1.33x10^3, it can still operate continuously. It can be used alone, or can be used for booster pumps, diffusion pumps, molecular pump backing pumps, maintenance pumps, titanium pumps for pre-pumping, widely used in vacuum metallurgy, vacuum coating, vacuum drying, freeze drying, vacuum degassing, vacuum packaging, vacuum adsorption, vacuum forming, food packaging, printing, sputtering, vacuum casting, photovoltaic, aviation science and technology, chemical, electronics, refrigerators, air conditioning lines and laboratories and other vacuum operations and supporting use.

Features

Specially designed gas ballast valve is formulated to prevent pump oil mixing and extend the service life of pump oil

◆High pumping efficiency, high ultimate vacuum and long service life

◆Equipped with an automatic anti-oil return check valve, no oil return

◆It can be equipped with small diameter adapters, KF interfaces, and flange interfaces

◆When suctioning vapors, particles, and corrosive gases, auxiliary equipment must be installed at the inlet of the pump, such as condensers, dust collectors, etc

Product Use:

  • Freeze dryer, rotary evaporator, vacuum dryer, cleaning machine

  • Centrifugal concentrator, glove box, tube furnace, double row tube

  • Extraction, coating, and sputtering equipment

  • A variety of high vacuum backing pumps

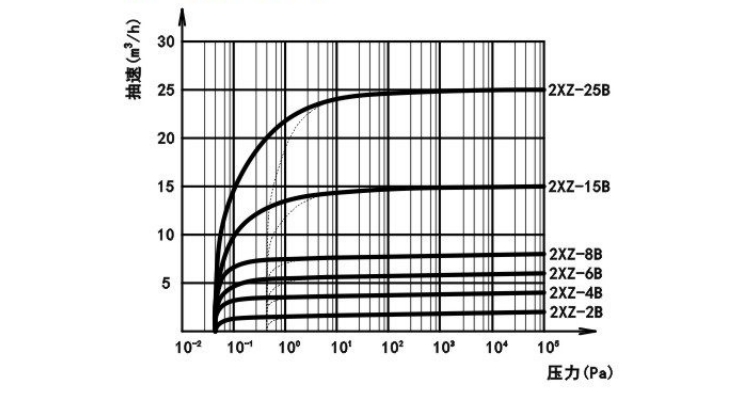

Pumping rate curve


Yonghao Vacuum 2XZ-6B(220V) Direct Connection Rotary Vane Vacuum Pump Details Figure 1

FAQ
QI want to buy a vacuum pump for vacuum drying in the laboratory. What would you recommend?
A 2XZ-6B direct-coupled rotary vane vacuum pump is recommended. Ultimate vacuum degree and high pumping efficiency make this pump suitable for applications such as vacuum drying that require stable removal of air and water vapor. It is equipped with a special gas ballast valve, which can effectively prevent water vapor from mixing into the pump oil, prolong the life of the pump oil, and ensure the continuity and Reliability of the drying process.
QOur company does vacuum coating, and we need to equip high-vacuum equipment with a front pump. Which one is suitable?
A 2XZ-6B is a suitable choice for scenarios that require high vacuum pre-pump, such as vacuum coating. Ultimate vacuum degree (less than 6 × 10 ^ Pa), it can quickly provide a good preparatory vacuum environment for main pumps such as molecular pumps or diffusion pumps. It has a reliable structure and an anti-return oil check valve to protect the main pump system. It is a commonly used pre-pump configuration in coating, sputtering and other processes.
