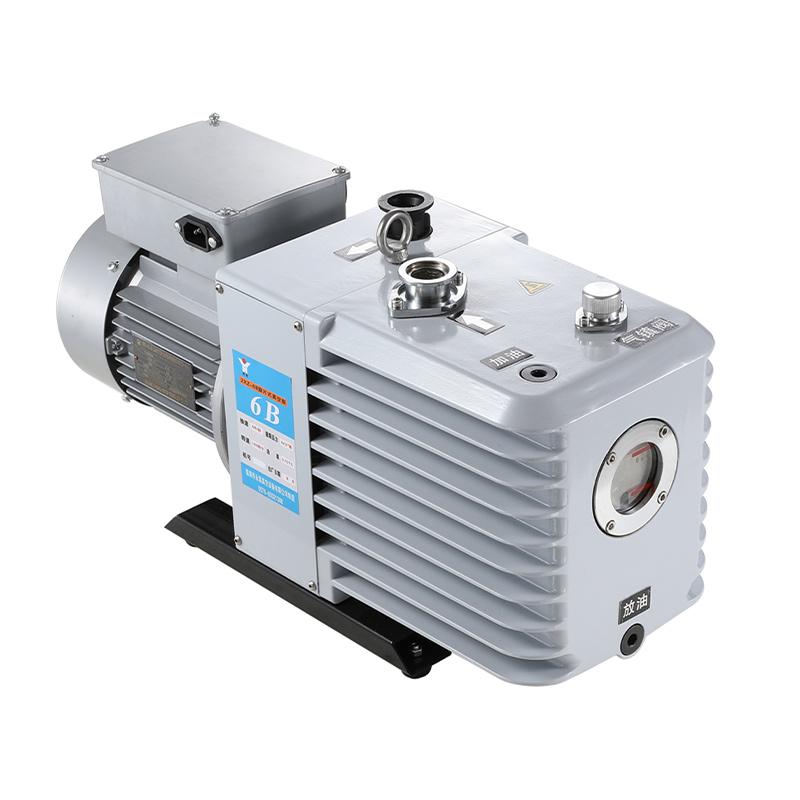

Yonghao vacuum 2XZ-6B direct-connected rotary vane Vacuum Pump 380V pumping speed 6L/S

The pumping speed is 6L/S, the ultimate pressure is ≤ 6x10-1Pa, and it is equipped with a gas ballast valve to prevent the pump oil from mixing with water. It can be adapted to a variety of interfaces to meet the needs of different Operating Conditions.

$626.00/set

PromotionLoading...

Coupon

Model：

2XZ-6B（380V）

Certificate

YongHao vacuum

Contact

Details SPEC Con

YongHao vacuum 2XZ-6B（380V） Direct-coupled rotary vane Vacuum PumpSPEC

YongHao vacuum 2XZ-6B（380V） Direct-coupled rotary vane Vacuum PumpDetails

YongHao vacuum 2XZ-6B（380V） Direct-coupled rotary vane Vacuum PumpPacking list

SKU: NB050164

pumping speed: 6(21.6)L/S(m3/h)

Ultimate pressure (pa) gas ballast: ≤6x 10-1(0.006mbar)

Ultimate pressure (pa) open gas town: ≤6 (0.06mbar)

Rotation speed 50Hz: 1400(r/min)

Rotation speed 60Hz: 1700(r/min)

Operating Voltage: 380V

Motor Power: 0.75Kw

Outer diameter of air inlet: Ф12/10(mm) KF-25

noise value: 63dB(A)

oil Capacity: 1.8-2.2L

Dimension: 565x200x298mm

Gross Weight/Net Weight: 44/40(KG)

2XZ-6B（380V）

Direct-coupled rotary vane Vacuum Pump

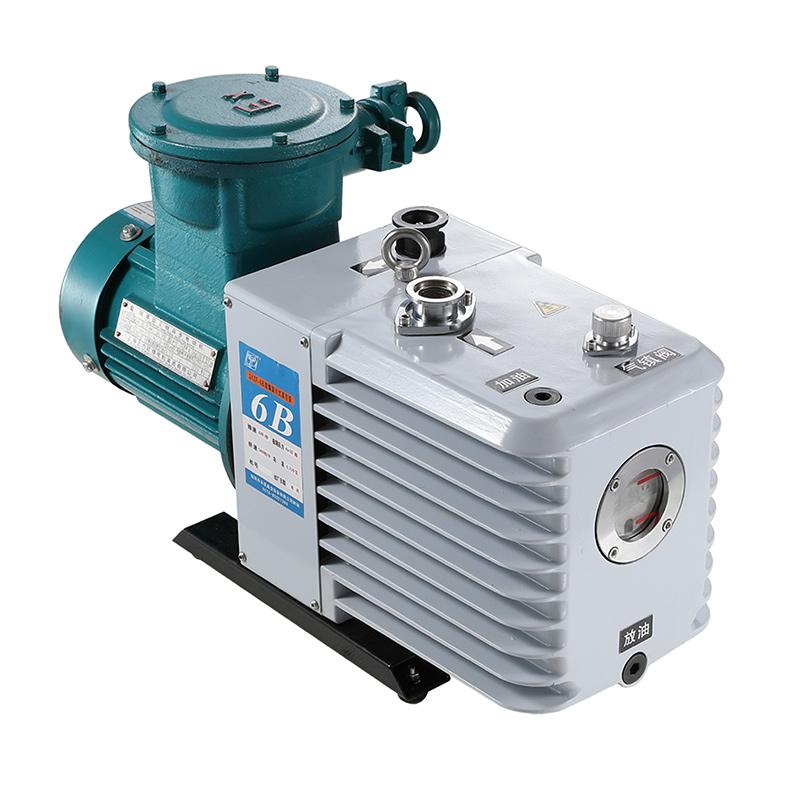

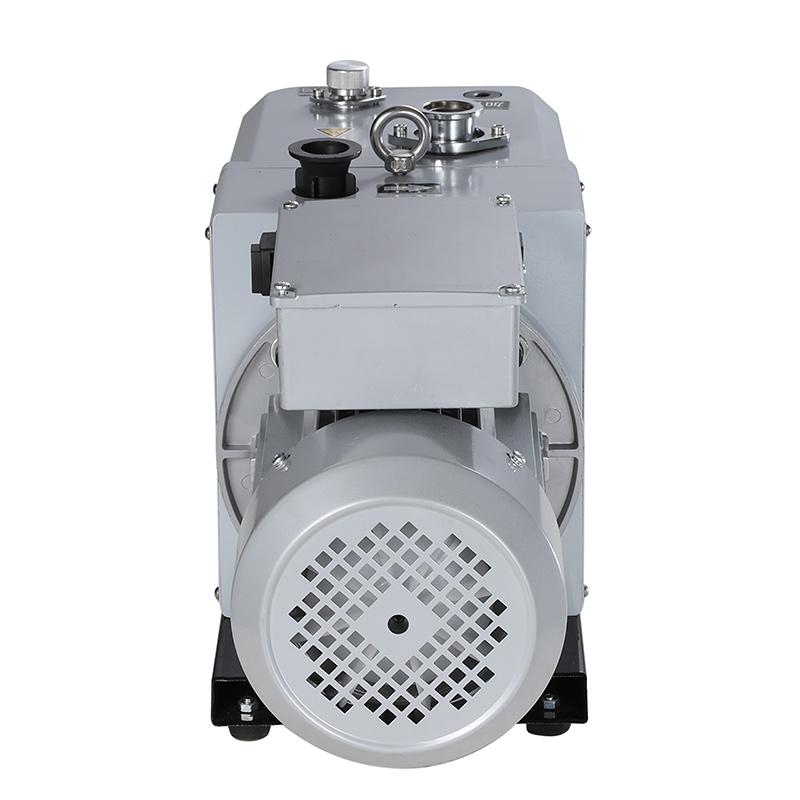

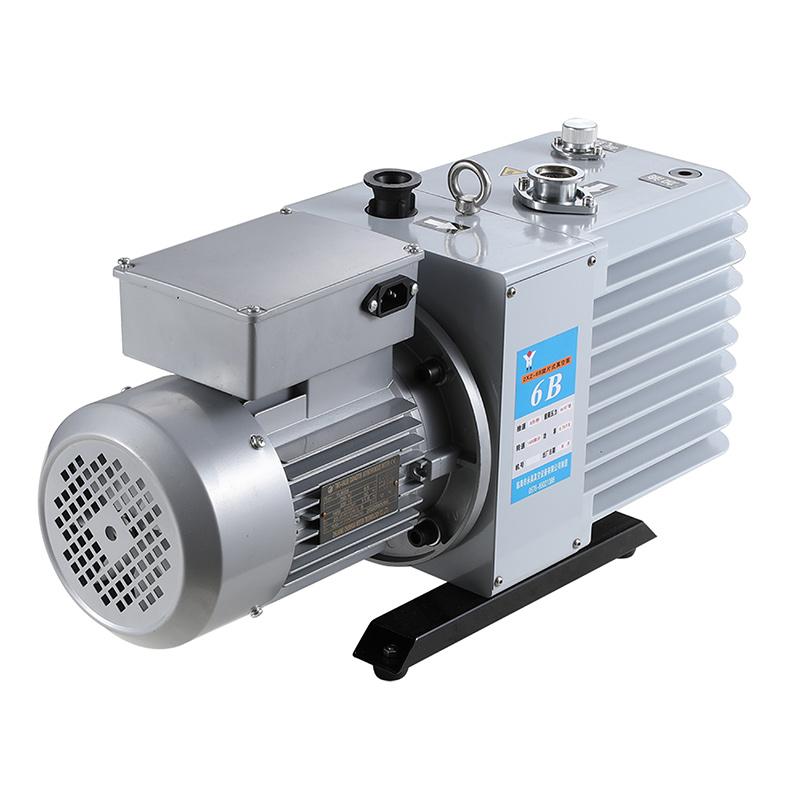

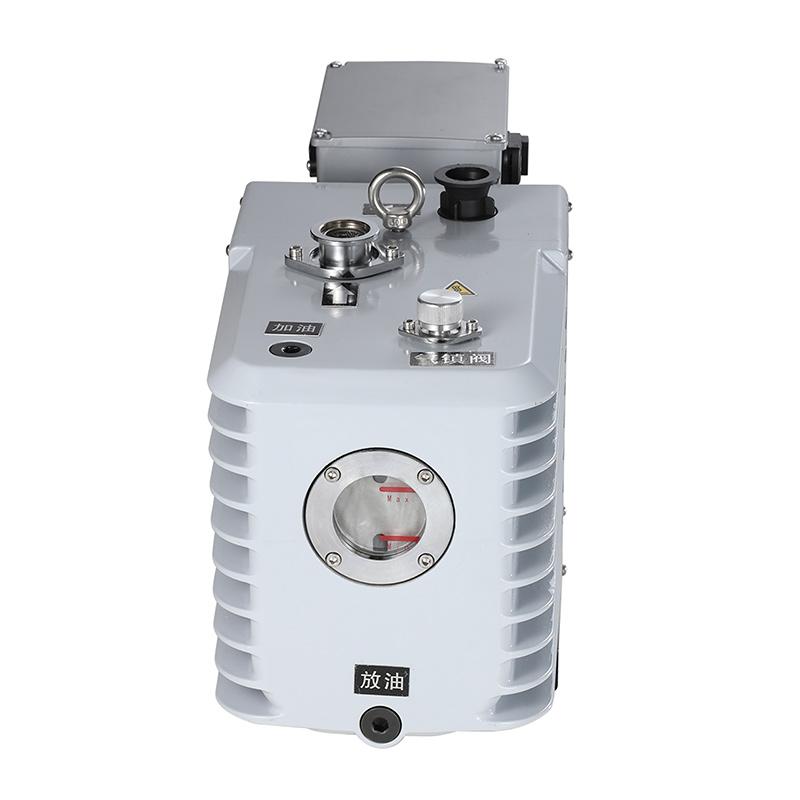

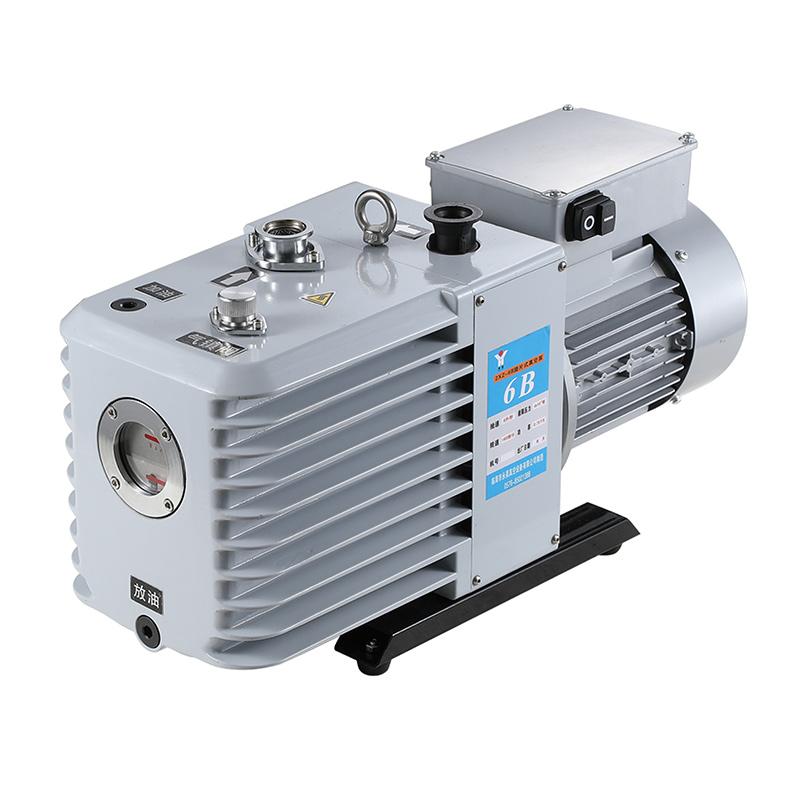

Yonghao vacuum 2XZ-6B direct-connected rotary vane Vacuum Pump 380V pumping speed 6L/S Picture

Product Overview:

This series of pumps is suitable for pumping air and other general gases. The advantage of using the oil pump forced oil inlet device can still operate continuously when the pressure of the inlet ≤ 1.33x10^3. It can be used alone, or can be used for booster pumps, diffusion pumps, molecular pump backing pumps, maintenance pumps, titanium pumps for pre-pumping, widely used in vacuum metallurgy, vacuum coating, vacuum drying, freeze drying, vacuum degassing, vacuum packaging, vacuum adsorption, vacuum forming, food packaging, printing, sputtering, vacuum casting, photovoltaic, aviation science and technology, chemical, electronics, refrigerators, air conditioning lines and laboratories and other vacuum operations and supporting use.

Features

Specially designed gas ballast valve is formulated to prevent pump oil mixing and extend the service life of pump oil

◆High pumping efficiency, high ultimate vacuum and long service life

◆Equipped with an automatic anti-oil return check valve, no oil return

◆It can be equipped with small diameter adapters, KF interfaces, and flange interfaces

◆When suctioning vapors, particles, and corrosive gases, auxiliary equipment must be installed at the inlet of the pump, such as condensers, dust collectors, etc

Product Use:

Freeze dryer, rotary evaporator, vacuum dryer, cleaning machine
Centrifugal concentrator, glove box, tube furnace, double row tube
Extraction, coating, and sputtering equipment
A variety of high vacuum backing pumps

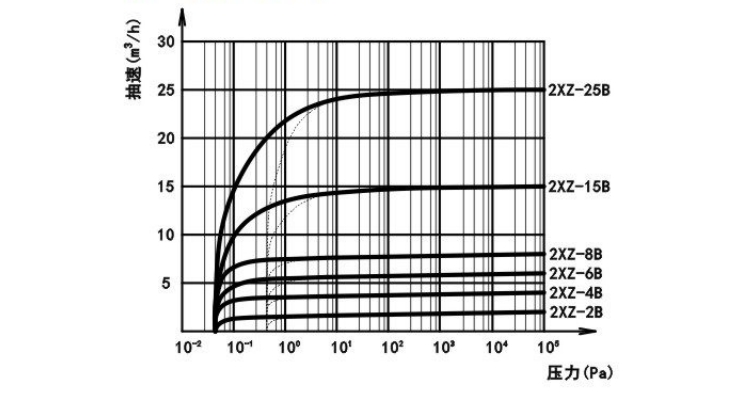

Pumping rate curve

Yonghao Vacuum 2XZ-6B(380V) Direct Rotary Vane Vacuum Pump Details Figure 1
