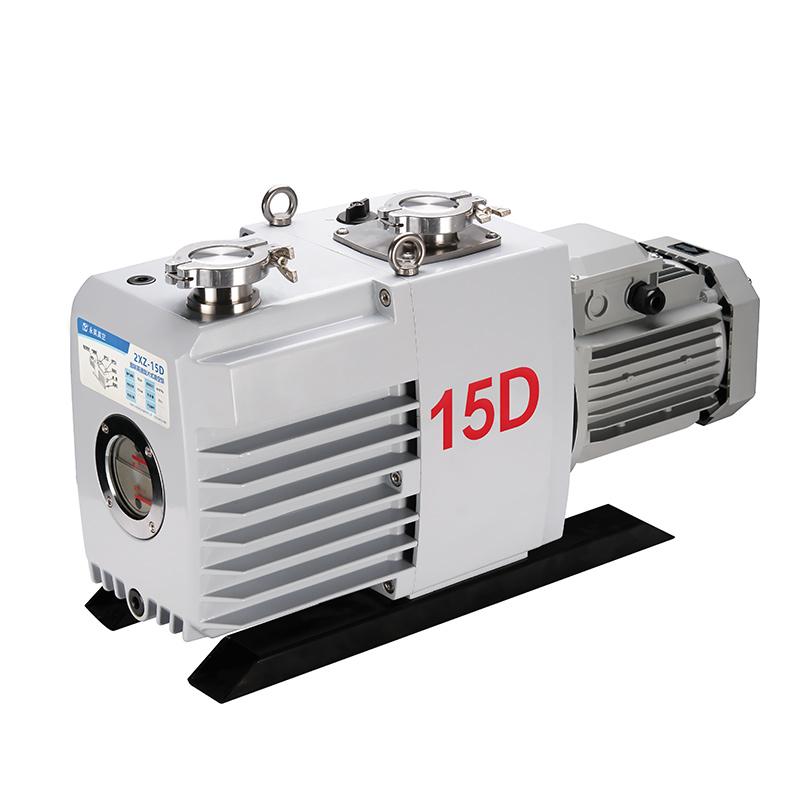

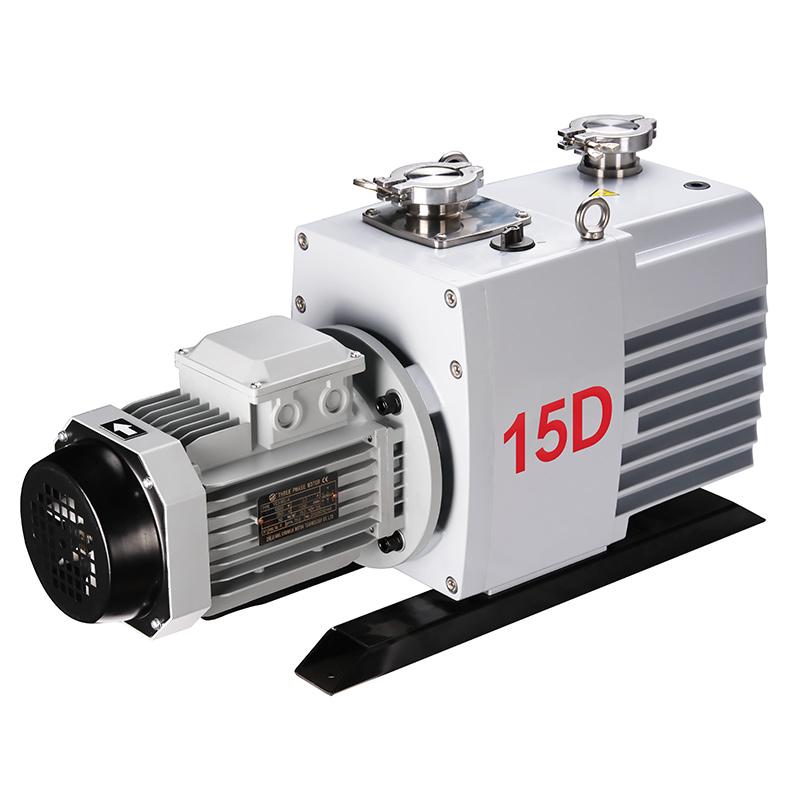

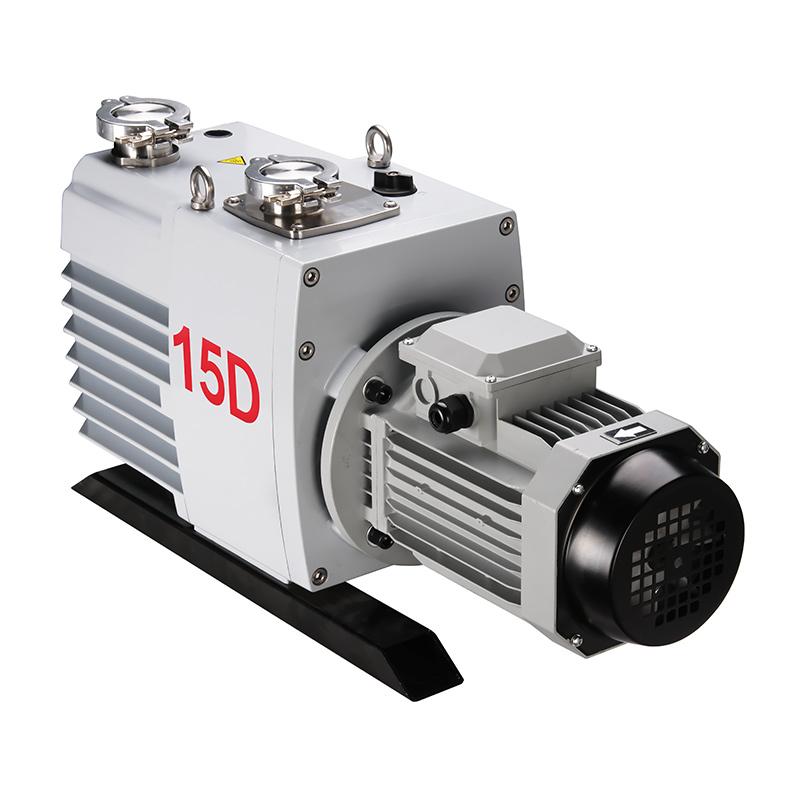

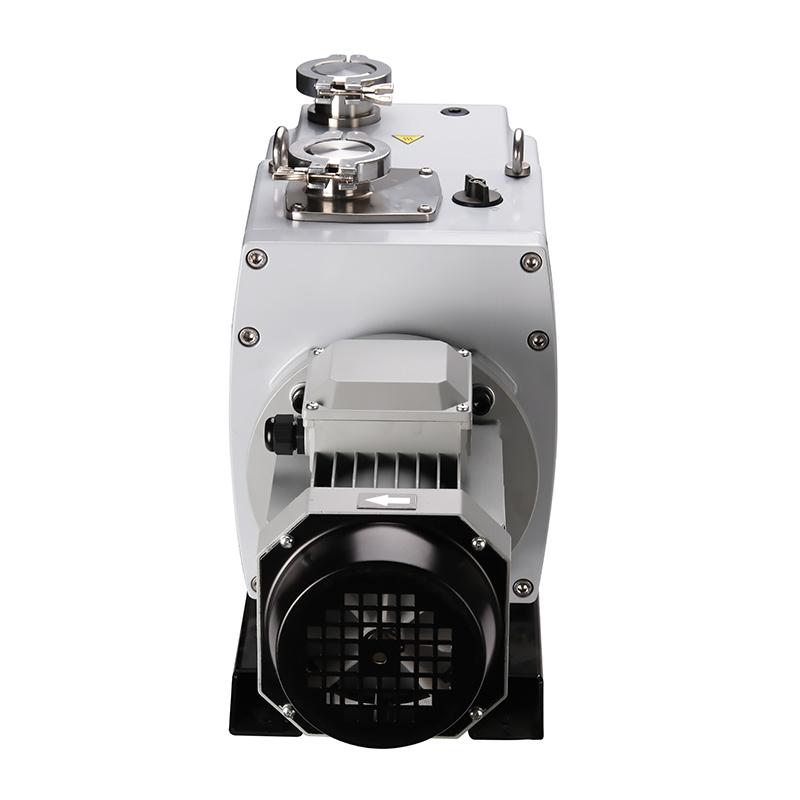

Yonghao vacuum 2XZ-15D direct-connected rotary vane Vacuum Pump, pumping speed 15L/S

Pumping speed up to 15L/S, Ultimate Vacuum ≤ 5x10 ^ -1Pa, equipped with gas ballast valve to prevent pump oil mixing, can be equipped with a variety of interfaces to adapt to different equipment needs.

$1061.00/set

PromotionLoading...

Coupon

Model：

2XZ-15D

Certificate

YongHao vacuum

Contact

Details SPEC Con

YongHao vacuum 2XZ-15D Direct-coupled rotary vane Vacuum PumpSPEC

YongHao vacuum 2XZ-15D Direct-coupled rotary vane Vacuum PumpDetails

YongHao vacuum 2XZ-15D Direct-coupled rotary vane Vacuum PumpPacking list

SKU: NB050166

pumping speed: 15(54)L/S(m3/h)

Ultimate pressure (pa) gas ballast: ≤5x 10-1(0.005mbar)

Ultimate pressure (pa) open gas town: ≤5 (0.05mbar)

Rotation speed: 1400(r/min)

Operating Voltage: 220/380V

Motor Power: 1.5Kw

Outer diameter of air inlet: KF-40

Air outlet diameter (outer diameter): KF-40

noise value: 64dB(A)

oil Capacity: 2.9L

Dimension: 715x230x360mm

Gross Weight/Net Weight: 70/65(KG)

2XZ-15D

Direct-coupled rotary vane Vacuum Pump

Product Overview:

This pump is a product improved by our company on the basis of the original B type, which is the third generation upgraded pump, which is suitable for suction air and other general gases. The advantage of using the oil pump forced oil inlet device can still operate continuously when the pressure of the inlet ≤ 1.33x10^3. It can be used alone, or can be used for booster pumps, diffusion pumps, molecular pumps for backing pumps, maintenance pumps, titanium pumps for pre-pumping, widely used in vacuum metallurgy, vacuum coating, vacuum drying, freeze drying, vacuum degassing, vacuum packaging, vacuum adsorption, vacuum forming, food packaging, printing, injection, vacuum casting, photovoltaic, aviation science and technology, chemical, electronics, refrigerators, air conditioning assembly line characteristics and laboratories and other vacuum operations and supporting use.

Features

◆Specially designed gas ballast valve is prepared to prevent pump oil mixing and extend the use time of pump oil

◆High pumping efficiency, high ultimate vacuum and long service life

◆Equipped with an automatic anti-oil return check valve, no oil return

◆It can be equipped with small diameter adapters, KF interfaces, and flange interfaces

◆When suctioning vapors, particles, and corrosive gases, auxiliary equipment must be installed at the inlet of the pump, such as condensers, dust collectors, etc.

Product Use:

Freeze dryer, rotary evaporator, vacuum dryer, cleaning machine
Centrifugal concentrator, glove box, tube furnace, double row tube
Extraction, coating, and sputtering equipment
A variety of high vacuum backing pumps

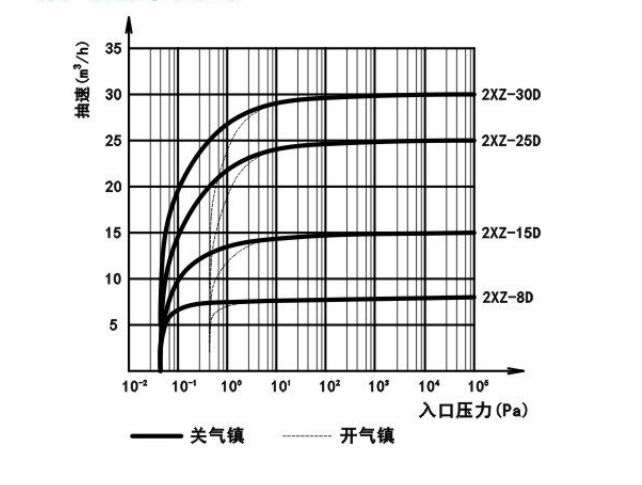

Pumping rate curve

Yonghao Vacuum 2XZ-15D Direct Connection Rotary Vane Vacuum Pump Details Figure 1
