Yonghao vacuum 2XZ-25D direct-coupled rotary vane Vacuum Pump, pumping speed 25L/S ultimate pressure 0.005mbar

2XZ-25D

Direct-coupled rotary vane Vacuum Pump

The pumping speed is 25L/S, the ultimate pressure is 0.005mbar, and it is equipped with a gas ballast valve to prevent the pump oil from mixing with water. It is equipped with an automatic anti-return oil check valve, which can be adapted to a variety of interfaces.

Product Overview:

This pump is a product improved by our company on the basis of the original B type, which is the third generation upgraded pump, which is suitable for suction air and other general gases. The advantage of using the oil pump forced oil inlet device can still operate continuously when the pressure of the inlet ≤ 1.33x10^3. It can be used alone, or can be used for booster pumps, diffusion pumps, molecular pumps for backing pumps, maintenance pumps, titanium pumps for pre-pumping, widely used in vacuum metallurgy, vacuum coating, vacuum drying, freeze drying, vacuum degassing, vacuum packaging, vacuum adsorption, vacuum forming, food packaging, printing, injection, vacuum casting, photovoltaic, aviation science and technology, chemical, electronics, refrigerators, air conditioning assembly line characteristics and laboratories and other vacuum operations and supporting use.

Features

◆Specially designed gas ballast valve is prepared to prevent pump oil mixing and extend the use time of pump oil

◆High pumping efficiency, high ultimate vacuum and long service life

◆Equipped with an automatic anti-oil return check valve, no oil return

◆It can be equipped with small diameter adapters, KF interfaces, and flange interfaces

◆When suctioning vapors, particles, and corrosive gases, auxiliary equipment must be installed at the inlet of the pump, such as condensers, dust collectors, etc.

Product Use:

• Freeze dryer, rotary evaporator, vacuum dryer, cleaning machine

• Centrifugal concentrator, glove box, tube furnace, double row tube

• Extraction, coating, and sputtering equipment

• A variety of high vacuum backing pumps

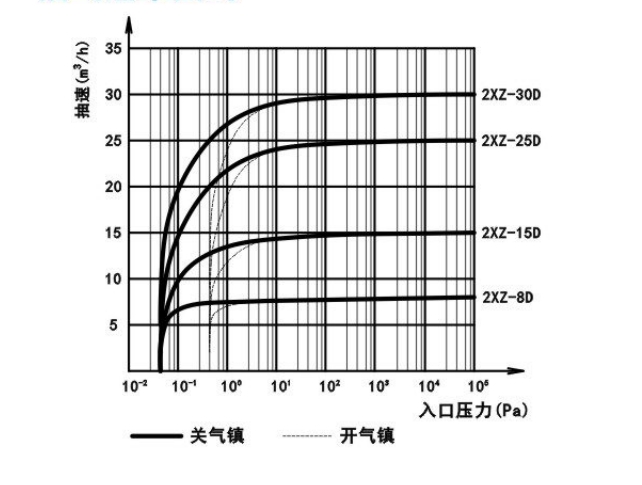

Pumping rate curve

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
