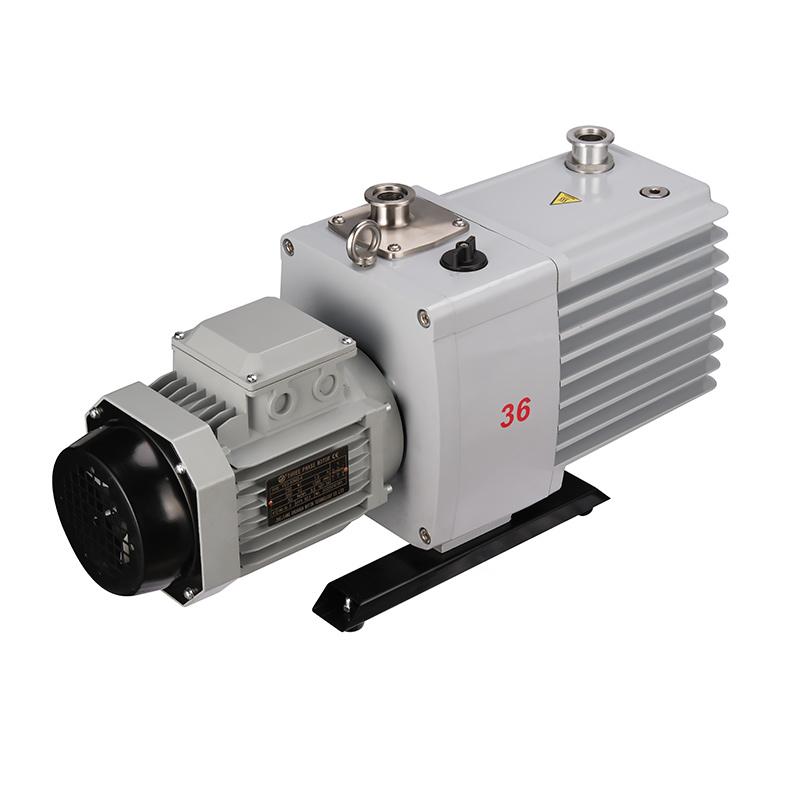

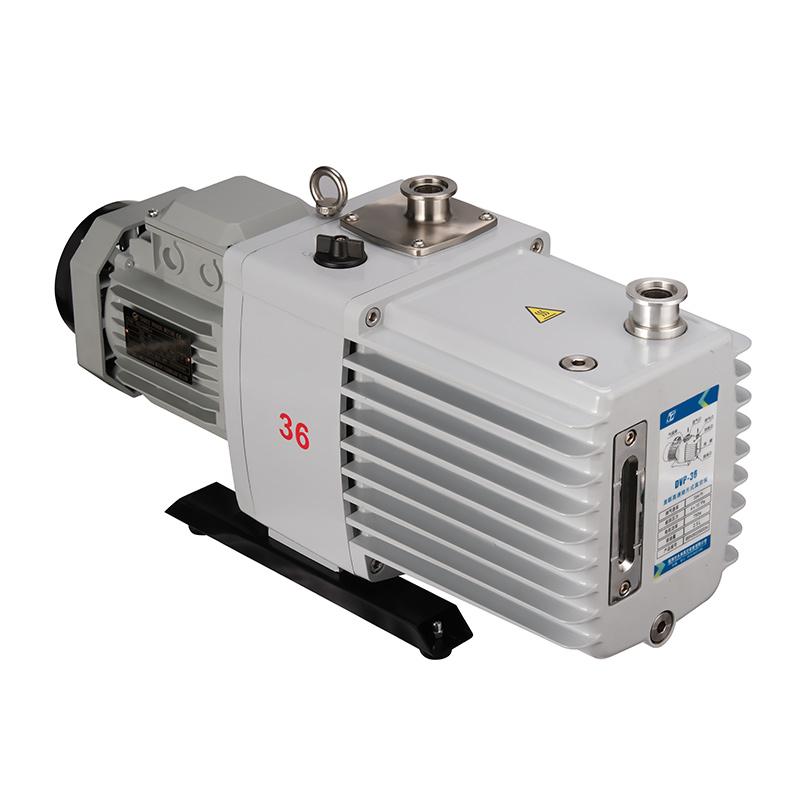

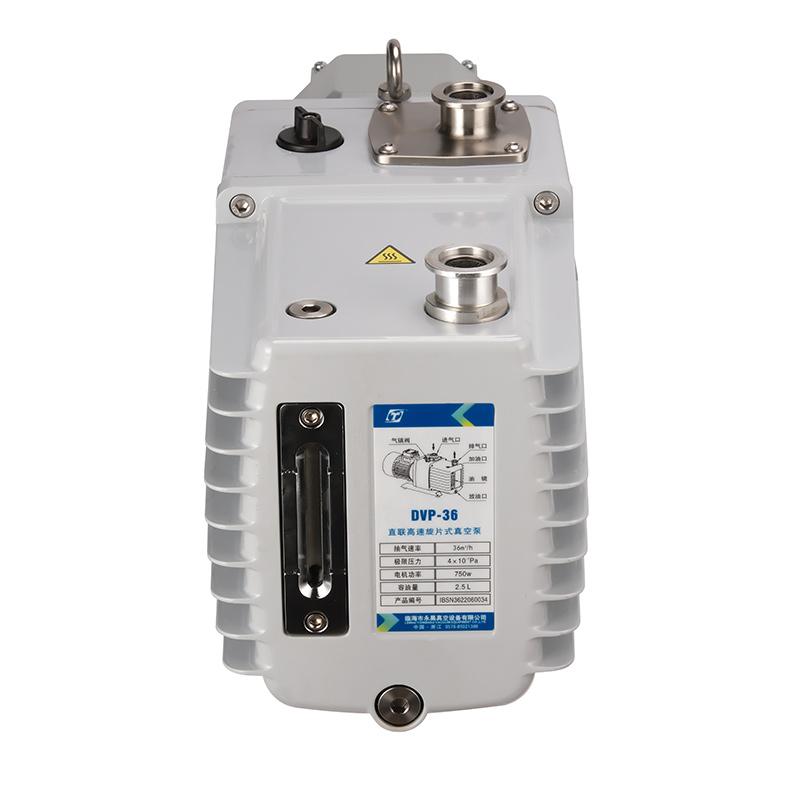

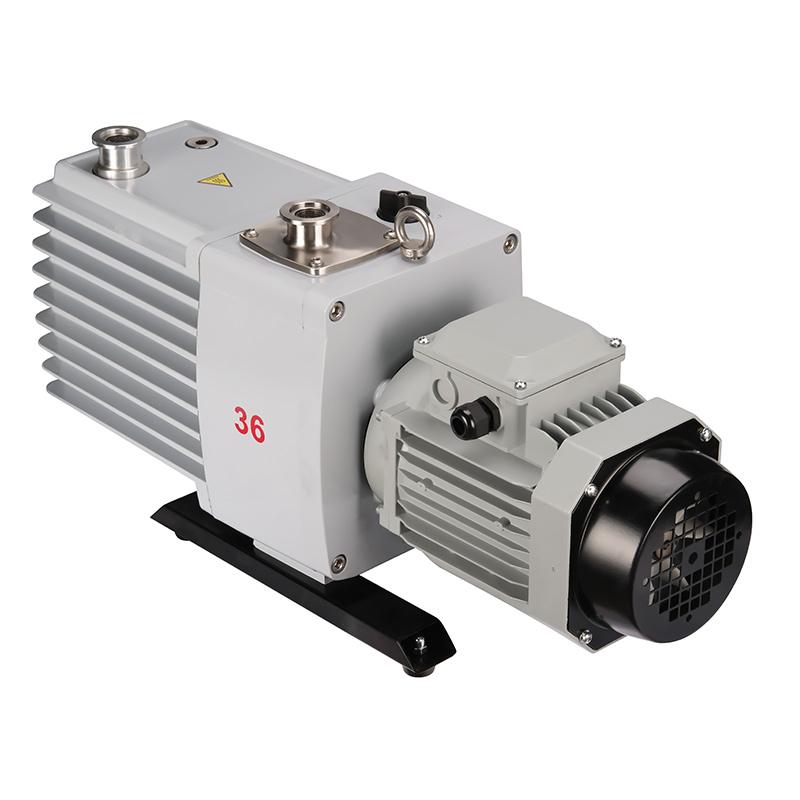

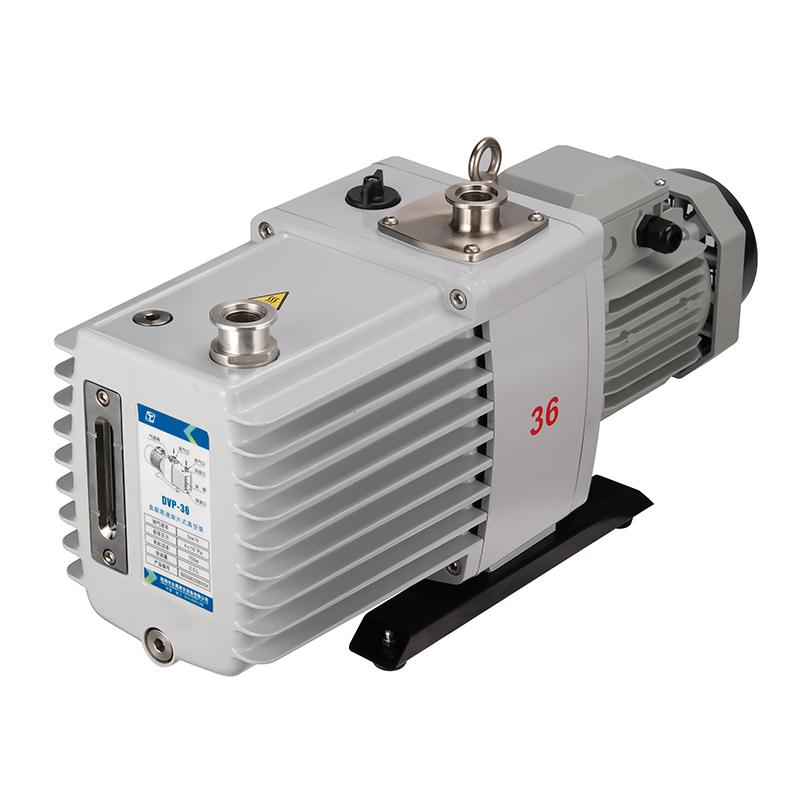

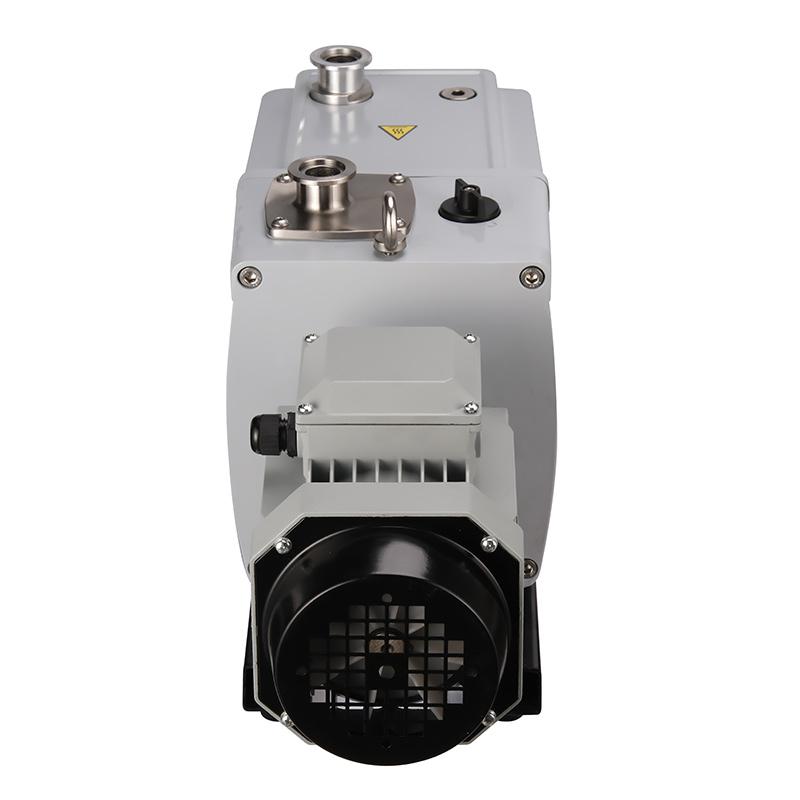

Yonghao vacuum DVP-36 DVP high-speed direct-coupled rotary vane Vacuum Pump, pumping rate 36m ³/h
SE
DVP-36
YongHao vacuum DVP-36 DVP high speed direct-coupled rotary vane Vacuum PumpSPEC
YongHao vacuum DVP-36 DVP high speed direct-coupled rotary vane Vacuum PumpDetails
YongHao vacuum DVP-36 DVP high speed direct-coupled rotary vane Vacuum PumpPacking list
- SKU
- NB050172
- Pumping rate 50Hz
- 36(m3/h)
- Pumping rate 60Hz
- 44(m3/h)
- Ultimate pressure (pa) gas ballast
- ≤5x 10-1(0.005mbar)
- Ultimate pressure (pa) open gas town
- ≤5 (0.05mbar)
- Rotation speed 50Hz
- 1440(r/min)
- Rotation speed 60Hz
- 1720(r/min)
- Power supply Voltage
- 220/380V
- Motor Power
- 1.1/0.75Kw
- Air inlet interface
- KF-25/40
- Air outlet interface
- KF-25
- noise value
- 58dB(A)
- oil Capacity
- 2.2L
- Pump oil temperature rise
- ≯45（℃）
- Dimension
- 568x195x310mm
- Gross Weight/Net Weight
- 44/42(KG)
Product Overview:
DVP series pump is a high-speed direct-connected rotary vane Vacuum Pump, with few parts, high reliability, silence and extremely high ultimate vacuum stability as the design positioning, through the use of the world's advanced integral pump body structure, forced oil pump lubrication control system, exhaust system in all positions, and special gas ballast valve action to achieve the Vacuum Pump to maintain good reliable performance under different use conditions.
Features
Extremely high ultimate vacuum level
With a unique exhaust device
Special air ballast valves are designed to accelerate the extraction of steam without contaminating the oil
Complete built-in air inlet check valve system to protect the vacuum system and from oil contamination when stopping work
Constant pressure oil circulation oil supply system protection
The number of parts is small, which is easy to repair and maintain
Extremely low noise.
Applications:
Chemical, freezing, drying, packaging, adsorption, coating, photovoltaic support, semiconductor, electronics, food hygiene, printing, ceramic support, scientific research, college laboratories, laboratories and other fields.
use
Refrigerator assembly line, air conditioner, water dispenser automatic control line, lighting
Vacuum Drying Oven, freeze dryer, double row tube, tube furnace, glove box
Rotary evaporator, centrifugal concentrator, cleaning machine
A variety of high vacuum backing pumps
Extraction, coating, and sputtering equipment

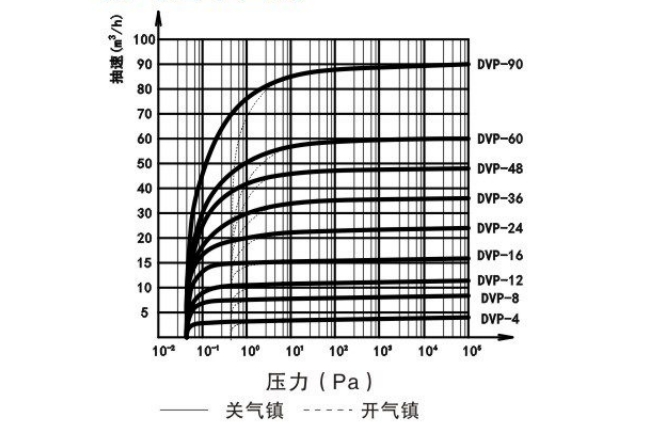

Pumping rate curve
