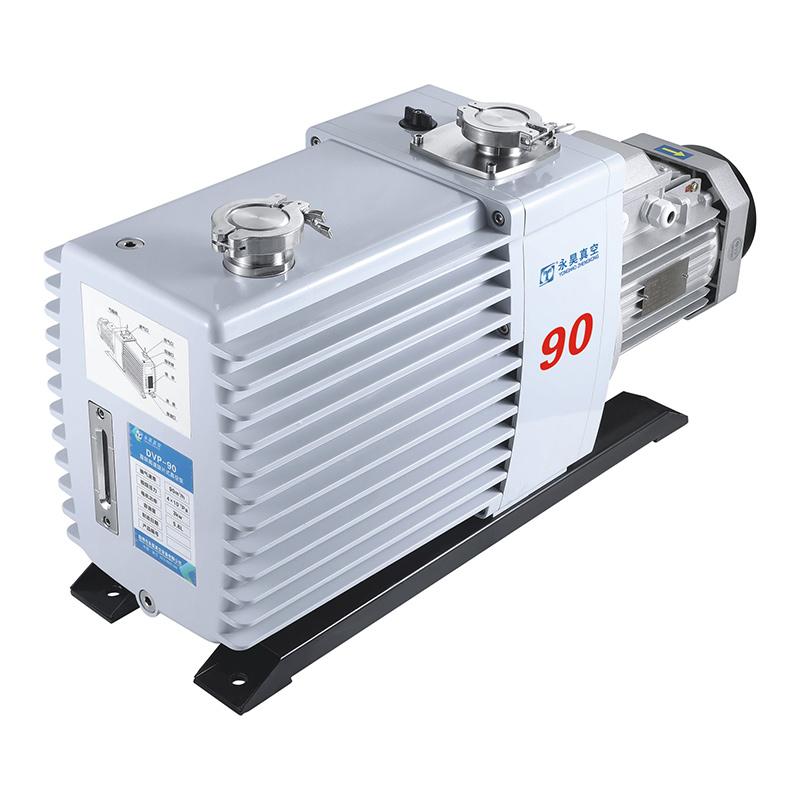

Yonghao vacuum DVP-90 DVP high speed direct-coupled rotary vane Vacuum Pump, high Rotation speed mute

Adopting integral pump structure and forced oil pump lubrication Control system, the pumping rate is 50Hz up to 90m ³/h, the ultimate pressure is as low as 0.005mbar, the noise is only 58dBA, and the parts are few and easy to maintain.

$2168.00/set

PromotionLoading...

Coupon

Model：

DVP-90

Certificate

YongHao vacuum

Contact

Details SPEC Con

YongHao vacuum DVP-90 DVP high speed direct-coupled rotary vane Vacuum PumpSPEC

YongHao vacuum DVP-90 DVP high speed direct-coupled rotary vane Vacuum PumpDetails

YongHao vacuum DVP-90 DVP high speed direct-coupled rotary vane Vacuum PumpPacking list

SKU: NB050175

Pumping rate 50Hz: 90(m3/h)

Pumping rate 60Hz: 108(m3/h)

Ultimate pressure (pa) gas ballast: ≤5x 10-1(0.005mbar)

Ultimate pressure (pa) open gas town: ≤5 (0.05mbar)

Rotation speed 50Hz: 1440(r/min)

Rotation speed 60Hz: 1720(r/min)

Power supply Voltage: 380V

Motor Power: 3Kw

Air inlet interface: KF-40

Air outlet interface: KF-40

noise value: 58dB(A)

oil Capacity: 5.5L

Pump oil temperature rise: ≯45（℃）

Dimension: 813x270x402mm

Gross Weight/Net Weight: 120/107(KG)

DVP-90

DVP high speed direct-coupled rotary vane Vacuum Pump

Product Overview:

DVP series pump is a high-speed direct-connected rotary vane Vacuum Pump, with few parts, high reliability, silence and extremely high ultimate vacuum stability as the design positioning, through the use of the world's advanced integral pump body structure, forced oil pump lubrication control system, exhaust system in all positions, and special gas ballast valve action to achieve the Vacuum Pump to maintain good reliable performance under different use conditions.

Features

Extremely high ultimate vacuum level
With a unique exhaust device
Special air ballast valves are designed to accelerate the extraction of steam without contaminating the oil
Complete built-in air inlet check valve system to protect the vacuum system and from oil contamination when stopping work
Constant pressure oil circulation oil supply system protection
The number of parts is small, which is easy to repair and maintain
Extremely low noise.

Applications:

Chemical, freezing, drying, packaging, adsorption, coating, photovoltaic support, semiconductor, electronics, food hygiene, printing, ceramic support, scientific research, college laboratories, laboratories and other fields.

use

Refrigerator assembly line, air conditioner, water dispenser automatic control line, lighting

Vacuum Drying Oven, freeze dryer, double row tube, tube furnace, glove box

Rotary evaporator, centrifugal concentrator, cleaning machine

A variety of high vacuum backing pumps

Extraction, coating, and sputtering equipment

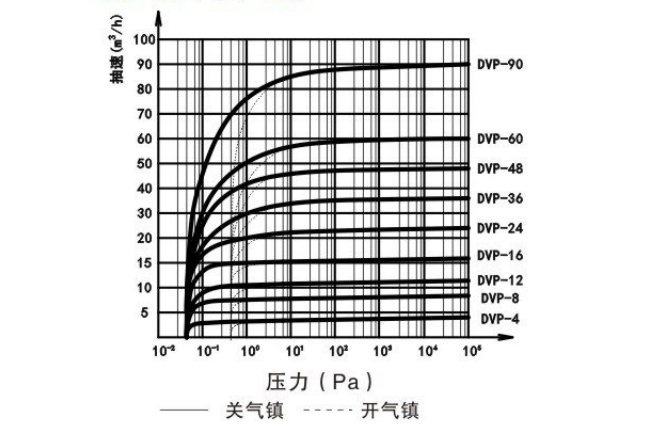

Pumping rate curve

Yonghao Vacuum DVP-90 DVP High Speed Direct Rotary Vane Vacuum Pump Details Figure 1
