Yonghao vacuum 2XZF-6B explosion-proof rotary vane Vacuum Pump, explosion-proof logo ExdIBT4

SE
Using flameproof, burning seal, intrinsically safe composite explosion-proof technology treatment, safe and reliable. Pumping speed 6L/S, ultimate pressure ≤ 6x10-1Pa, suitable for flammable and explosive environment.
$787.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con

YongHao vacuum 2XZF-6B Explosion-proof rotary vane Vacuum PumpSPEC

YongHao vacuum 2XZF-6B Explosion-proof rotary vane Vacuum PumpDetails

YongHao vacuum 2XZF-6B Explosion-proof rotary vane Vacuum PumpPacking list

SKU
NB050180
Extraction
6（21.6）L/S(m3/h)
Ultimate pressure (pa) gas ballast
≤6x 10-1(0.006mbar)
Ultimate pressure (pa) open gas town
≤6 (0.06mbar)
Rotation speed
1400(r/min)
Motor Power
0.75Kw
Power supply Voltage
380(V/50HZ)
Inlet diameter (DN)
Ф12/10 KF-25
noise value
64dB(A)
oil Capacity
1-1.2L
Dimension
651x266x324mm
Gross Weight/Net Weight
65/62(KG)
2XZF-6B
Explosion-proof rotary vane Vacuum Pump
Using flameproof, burning seal, intrinsically safe composite explosion-proof technology treatment, safe and reliable. Pumping speed 6L/S, ultimate pressure ≤ 6x10-1Pa, suitable for flammable and explosive environment.

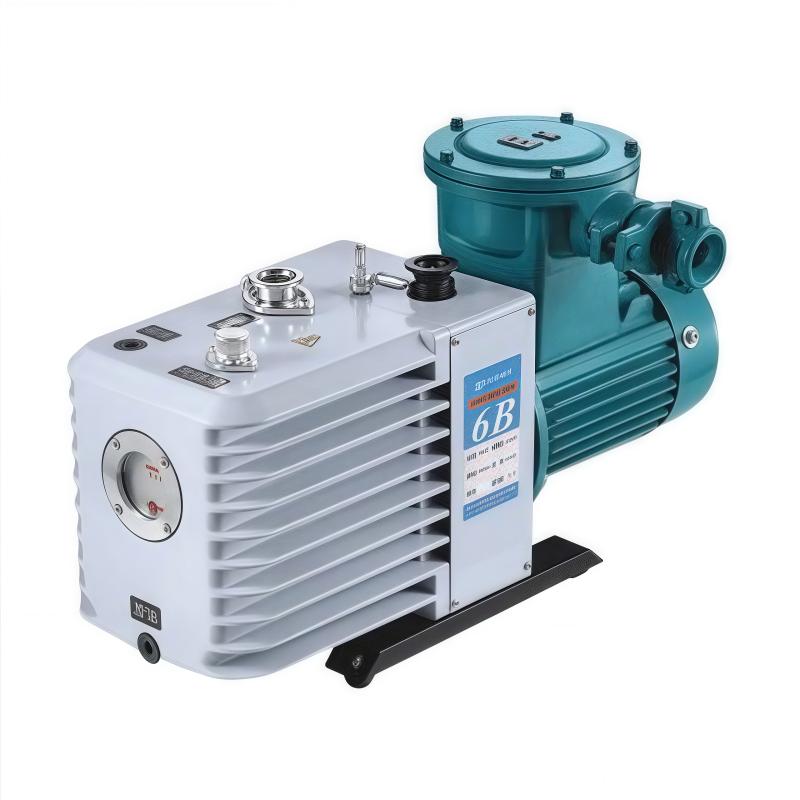

Yonghao vacuum 2XZF-6B explosion-proof rotary vane Vacuum Pump, explosion-proof logo ExdIBT4 Picture

Product Overview:

This series of pumps is the equipment for extracting gas from flammable and explosive hazardous places with explosion-proof grades IA and 1B and temperature groups TI-T4, which is suitable for places where explosive gas mixtures exist, and is also used in the environment of coal mines underground (non-mining faces) where methane or coal dust exists. It is widely used in petroleum, chemical, military, explosives, scientific research, mines, oil depots, liquefied gas stations, gas pipelines, aerospace, laboratories and other related fields.

Features

  • Small size, light weight, low noise

  • It is equipped with an air ballast valve to remove a small amount of water vapor

  • Specially equipped with explosion-proof constant temperature Drying Oven

  • Explosion-proof mark: ExdIBT4

  • This pump adopts explosion-proof, burn-sealed, intrinsically safe composite explosion-proof technology, which is safe and reliable.

FAQ
QOur laboratory needs to handle flammable and explosive gases. Is there a suitable vacuum pump recommended?
A 2XZF-6B explosion-proof rotary vane vacuum pump is recommended. This pump is specially designed for explosion-proof environment, using explosion-proof, burning-sealed, intrinsically safe composite explosion-proof technology, explosion-proof logo is ExdIBT4, which can safely remove flammable and explosive gases of IA, 1B grade, TI-T4 temperature group, suitable for laboratories and other places with explosive gas mixtures.
QNeed to deal with flammable solvents, are there any explosion-proof vacuum pumps recommended?
A Hao 2XZF-6B explosion-proof rotary vane pump has passed the national explosion-proof certification (ExdIBT4), which is specially used in flammable and explosive environments. The composite explosion-proof technology can safely extract the organic solvent vapor in the laboratory and avoid the danger of spark.
QWhat pump should be selected for vacuuming in a chemical plant? It must be explosion-proof.
A 2XZF-6B is very suitable for chemical explosion-proof places. It meets IA/IB explosion-proof standards, with its own gas ballast valve to handle a small amount of water vapor, and 380V industrial voltage matches workshop electricity. Compact (65cm long) but with a pumping speed of 21.6m ³/h, it can meet the vacuum needs of Reaction Kettle.
QWhat are the options for explosion-proof vacuum equipment in coal mines?
A This 2XZF-6B is designed for coal mine environments, allowing for use in methane and coal dust environments. The 64dB low noise is suitable for underground operations, the explosion-proof motor is completely isolated from spark risk, and the structure is robust. Net weight 62kg is easy to carry and install underground.
