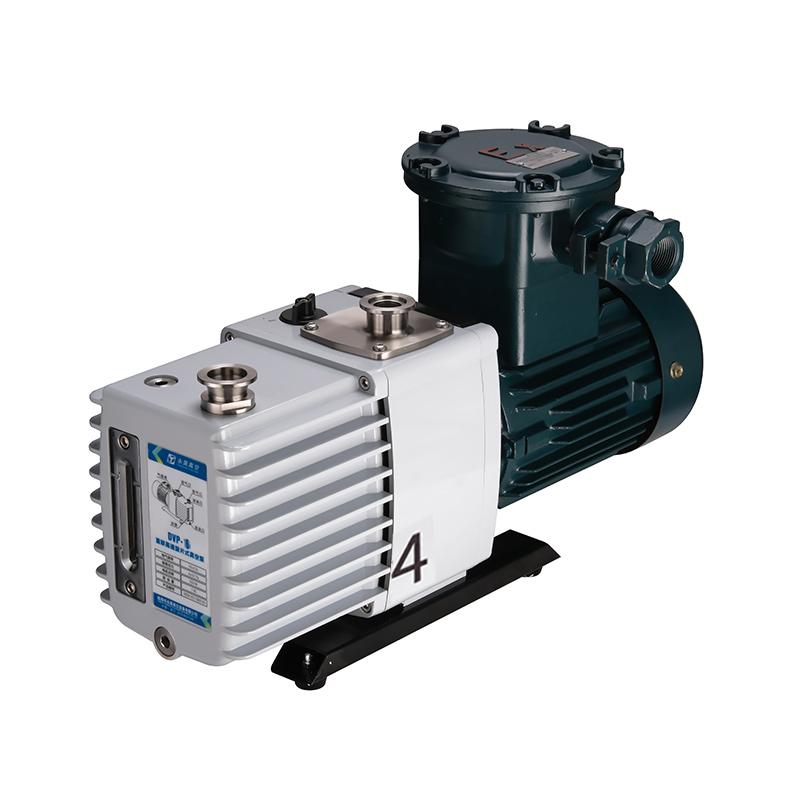

Yonghao vacuum DVPF-4 explosion-proof two-stage rotary vane Vacuum Pump Explosion-proof level ExdIBT4
SEAdopting flameproof composite technology, safe and reliable, with anti-suction valve and gas ballast valve, pumping speed 4m ³/h, limit pressure 0.005mbar, suitable for flammable and explosive environment.
$787.00/set
PromotionLoading...
Coupon
Model：
DVPF-4
YongHao vacuum DVPF-4 Explosion-proof two-stage rotary vane Vacuum PumpSPEC
YongHao vacuum DVPF-4 Explosion-proof two-stage rotary vane Vacuum PumpDetails
YongHao vacuum DVPF-4 Explosion-proof two-stage rotary vane Vacuum PumpPacking list
- SKU
- NB050183
- pumping speed 50Hz
- 4(m3/h)
- Pumping speed 60Hz
- 4.8(m3/h)
- Ultimate pressure (pa) gas ballast
- ≤5x 10-1(0.005mbar)
- Ultimate pressure (pa) open gas town
- ≤5 (0.05mbar)
- Rotation speed 50Hz
- 1440(r/min)
- Rotation speed 60Hz
- 1720(r/min)
- Power supply Voltage
- 380V
- Motor Power
- 0.37Kw
- Air Intake Interface (DN)
- KF-25
- Air outlet interface (DN)
- KF-25
- noise value
- 58dB(A)
- oil Capacity
- 0.9L
- Pump oil temperature rise
- ≯45（℃）
- Dimension
- 532x225x350mm
- Gross Weight/Net Weight
- 28/26(KG)
DVPF-4
Explosion-proof two-stage rotary vane Vacuum Pump
Adopting flameproof composite technology, safe and reliable, with anti-suction valve and gas ballast valve, pumping speed 4m ³/h, limit pressure 0.005mbar, suitable for flammable and explosive environment.
Product Introduction
This series of pumps are the equipment for extracting gas from flammable and explosive hazardous places with explosion-proof grades IA, IB and TI-T4 groups, and are widely used in petroleum, chemical, military, explosives, scientific research, mines, oil depots, liquefied gas stations, gas pipelines, aerospace, laboratories and other related fields.
Features
An anti-backsuck valve is provided to prevent oil from being backsucked into the vacuum vessel during shutdown
It is equipped with air ballast valves to meet the vacuum requirements of different customers and the ability to handle water vapor
Explosion-proof mark: ExdIBT4
This pump adopts explosion-proof, burning, intrinsically safe composite explosion-proof technology, safe and reliable
FAQ
QIt is necessary to prevent oil from being poured into the vacuum container during shutdown
A
DVPF-4 explosion-proof two-stage rotary vane vacuum pump is equipped with anti-reverse suction valve, which can effectively prevent oil from being sucked into the vacuum container during shutdown, ensuring equipment safety and service life.
QWater vapor needs to be processed and the vacuum degree can be adjusted
A
The pump is equipped with a gas ballast valve, which can meet the requirements of different vacuum degrees and can effectively handle water vapor. The ultimate pressure is less than or equal to 0.005mbar when the gas is closed and less than or equal to 0.05mbar when the gas is opened.
