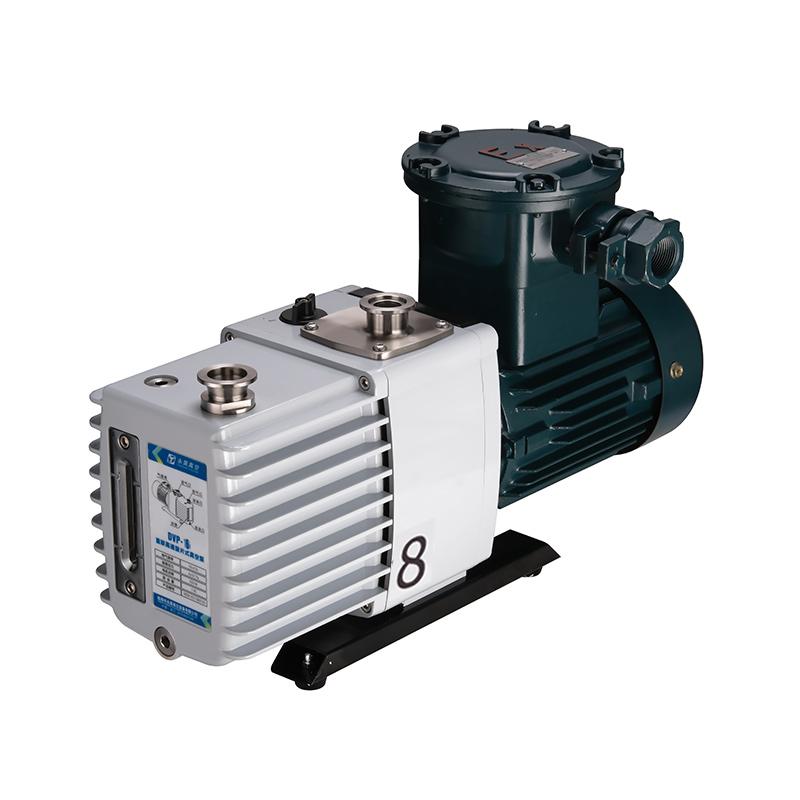

Yonghao vacuum DVPF-8 explosion-proof two-stage rotary vane Vacuum Pump, pumping speed 8m3/h
SEUsing flameproof, burning seal, intrinsically safe composite explosion-proof technology, pumping speed 8m3/h, ultimate pressure 0.005mbar, with anti-suction valve and gas ballast valve, to adapt to different vacuum requirements.
$850.00/set
PromotionLoading...
Coupon
Model：
DVPF-8
YongHao vacuum DVPF-8 Explosion-proof two-stage rotary vane Vacuum PumpSPEC
YongHao vacuum DVPF-8 Explosion-proof two-stage rotary vane Vacuum PumpDetails
YongHao vacuum DVPF-8 Explosion-proof two-stage rotary vane Vacuum PumpPacking list
- SKU
- NB050184
- pumping speed 50Hz
- 8(m3/h)
- Pumping speed 60Hz
- 9.6(m3/h)
- Ultimate pressure (pa) gas ballast
- ≤5x 10-1(0.005mbar)
- Ultimate pressure (pa) open gas town
- ≤5 (0.05mbar)
- Rotation speed 50Hz
- 1440(r/min)
- Rotation speed 60Hz
- 1720(r/min)
- Power supply Voltage
- 380V
- Motor Power
- 0.37Kw
- Air Intake Interface (DN)
- KF-25
- Air outlet interface (DN)
- KF-25
- noise value
- 58dB(A)
- oil Capacity
- 0.9L
- Pump oil temperature rise
- ≯45（℃）
- Dimension
- 532x225x350mm
- Gross Weight/Net Weight
- 28/26(KG)
DVPF-8
Explosion-proof two-stage rotary vane Vacuum Pump
Using flameproof, burning seal, intrinsically safe composite explosion-proof technology, pumping speed 8m3/h, ultimate pressure 0.005mbar, with anti-suction valve and gas ballast valve, to adapt to different vacuum requirements.
Product Introduction
This series of pumps are the equipment for extracting gas from flammable and explosive hazardous places with explosion-proof grades IA, IB and TI-T4 groups, and are widely used in petroleum, chemical, military, explosives, scientific research, mines, oil depots, liquefied gas stations, gas pipelines, aerospace, laboratories and other related fields.
Features
An anti-backsuck valve is provided to prevent oil from being backsucked into the vacuum vessel during shutdown
It is equipped with air ballast valves to meet the vacuum requirements of different customers and the ability to handle water vapor
Explosion-proof mark: ExdIBT4
This pump adopts explosion-proof, burning, intrinsically safe composite explosion-proof technology, safe and reliable
