Yonghao vacuum XFK-01 adsorption trap, active aluminum oxide adsorption trap, oil retention rate 99%

SE
The activated aluminum oxide ball is used as the adsorption medium, and the oil retention rate is as high as 99%. It is suitable for small rotary vane Vacuum Pumps with pumping speed ≤ 6L/s. The 304/316 stainless steel shell structure is simple and durable.
$141.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con

YongHao vacuum XFK-01 Adsorption trapSPEC

YongHao vacuum XFK-01 Adsorption trapDetails

YongHao vacuum XFK-01 Adsorption trapPacking list

SKU
NB050201
size
Ф3- Ф5
micropore diameter
500（um）
interface
KF-25
oil retention
99%
shape
small ball
getter
Activated aluminum oxide
Dimension
Ф60*280(mm)
XFK-01
Adsorption trap
The activated aluminum oxide ball is used as the adsorption medium, and the oil retention rate is as high as 99%. It is suitable for small rotary vane Vacuum Pumps with pumping speed ≤ 6L/s. The 304/316 stainless steel shell structure is simple and durable.

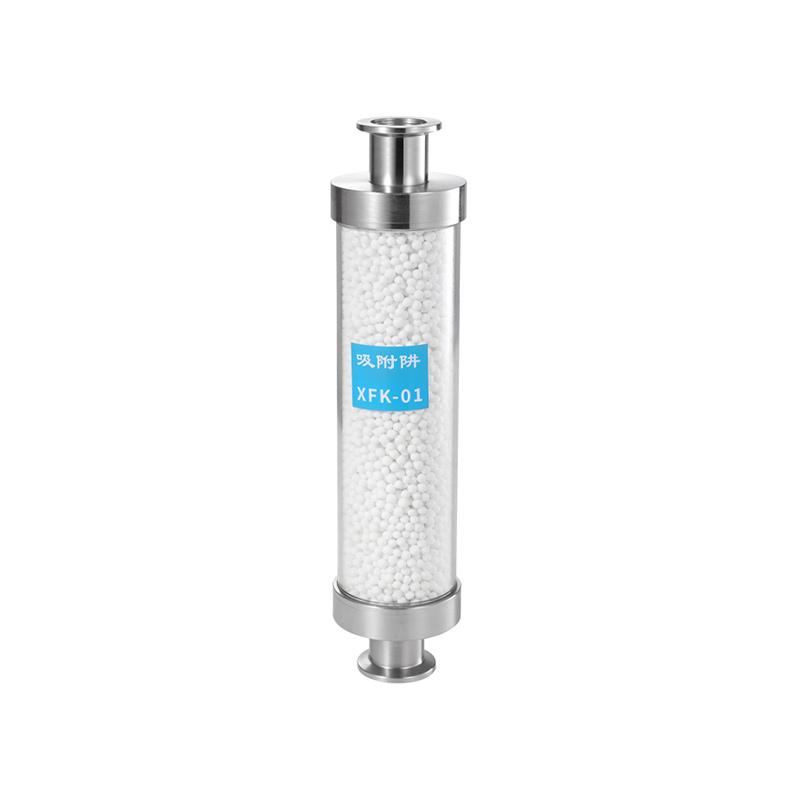

Yonghao vacuum XFK-01 adsorption trap, active aluminum oxide adsorption trap, oil retention rate 99% Picture

Product Overview:

Vacuum pumps are generally used to remove dry gas from sealed containers, but in actual use, the gas is more or less mixed with water vapor and other organic corrosive harmful gases that affect the service life of Vacuum Pump oil. During the operation of the Vacuum Pump, the negative pressure can easily cause the oil and gas of the Vacuum Pump to return to the vacuum container. The adsorption trap is installed in front of the Vacuum Pump inlet, and the activated alumina ball is used as the adsorption medium, which can adsorb the water vapor and chemically corrosive harmful gases in the pumped gas, and at the same time block the return of the Vacuum Pump oil and gas into the vacuum container, and its oil retention rate can reach more than 99%. Customers can choose according to the actual use of Vacuum Pumps. Activated alumina balls can be revived after heating and removing water, but the amount of this adsorption trap is small, so it is recommended to use alumina balls disposably.

Features

  • This suction trap is suitable for small rotary vane Vacuum Pumps with a pumping speed of ≤ 6L/s

  • Activated alumina balls Please use our special activated alumina balls

  • Activated alumina balls are replaced in time according to actual usage

  • Configuring a suction trap will slightly affect the pumping speed and vacuum level

  • 304/316 stainless steel housing

  • Simple structure and easy operation
