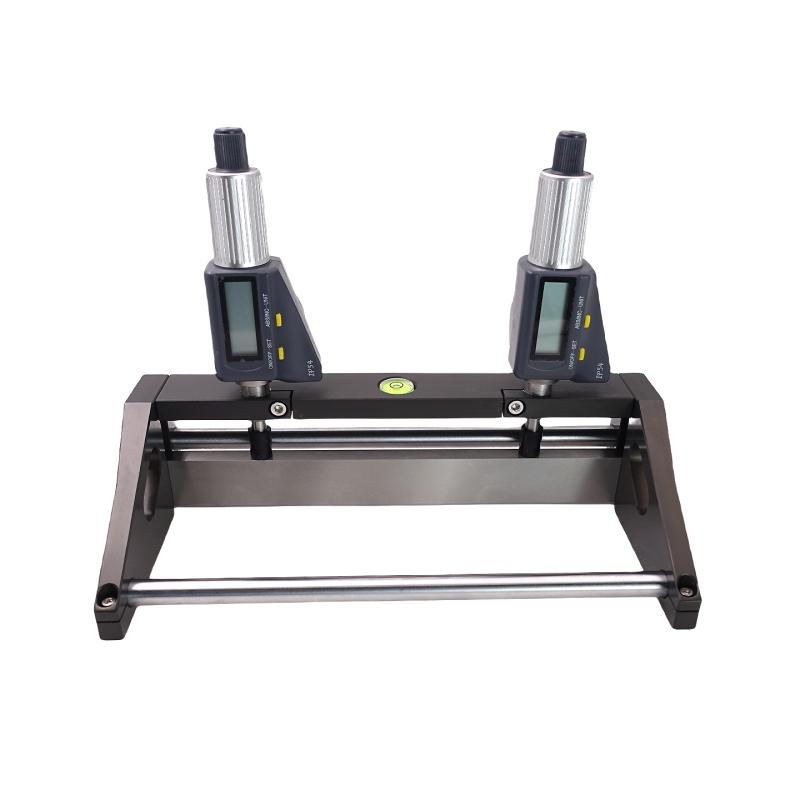

HuiNuo KTQ-350S Micrometer Applicator, magnetic drawdown blade application width 350mm

The magnetic detachable drawdown blade structure is easy to clean, the film thickness range is adjustable from 0 to 5000 μm, the application width is 350mm, and the drawdown blade accuracy is +/- 2 μm, which meets the needs of high viscosity material scraping.

$568.00/set

PromotionLoading...

Coupon

Model：

KTQ-350S

Certificate

HuiNuo

Chinese general agent

Contact

Details SPEC Con

HuiNuo KTQ-350S Adjustable Film ApplicatorSPEC

HuiNuo KTQ-350S Adjustable Film ApplicatorDetails

HuiNuo KTQ-350S Adjustable Film ApplicatorPacking list

SKU: NB050221

type: Removable drawdown blade

WFT: 0~5000μm

application width: 350mm

Drawdown blade Accuracy: ±2μm

Rack material process: Aluminum hard oxidation

Drawdown blade material process: Die steel

size: 310 * 100 * 50Mm (excluding differential head)

Net Weight: 1280g

differential head: green quantity

Drawdown blade straightness: ±2μm

Differential head Graduation interval: 10μm

KTQ-350S

Adjustable Film Applicator

Huinuo KTQ-350S Adjustable Preparer Details Figure 1

Huinuo KTQ-350S adjustable preparer details Figure 2

Huinuo KTQ-350S adjustable preparer details Figure 3

Huinuo KTQ-350S adjustable preparer details Figure 4

Details of Huinuo KTQ-350S adjustable preparer Figure 5

Details of Huinuo KTQ-350S adjustable preparer Figure 6

Product Introduction

Huinuo KTQ series adjustable wet film preparer is a new generation of scraper detachable Film Applicator developed by Huinuo, which meets the principle of differential gap scraping and adopts magnetic scraper design to solve the difficult cleaning problem caused by scraping of materials such as high viscosity and easy curing. This series of equipment offers a variety of coating widths from 50mm to 600mm to meet the needs of different application scenarios.

Product characteristics:

1. Magnetic detachable scraper structure, more convenient to clean

2. Precise thickness adjustment with blue differential head (scale and digital display optional)

3. The scraper is made of high-hardness mold steel, hard alumina frame, lightweight, wear-resistant and corrosion-resistant

4. The film thickness range is adjustable from 0~5000μm

5. Scraper accuracy± 2μm to 5μm (depending on the specific model, not false standard)

6. Provide 50-600mm multiple coating film widths to choose from, and support customization

Applications:

Coatings, ink R&D and quality inspection, lithium battery electrode preparation, optical film coating, adhesive testing, nanomaterials research
