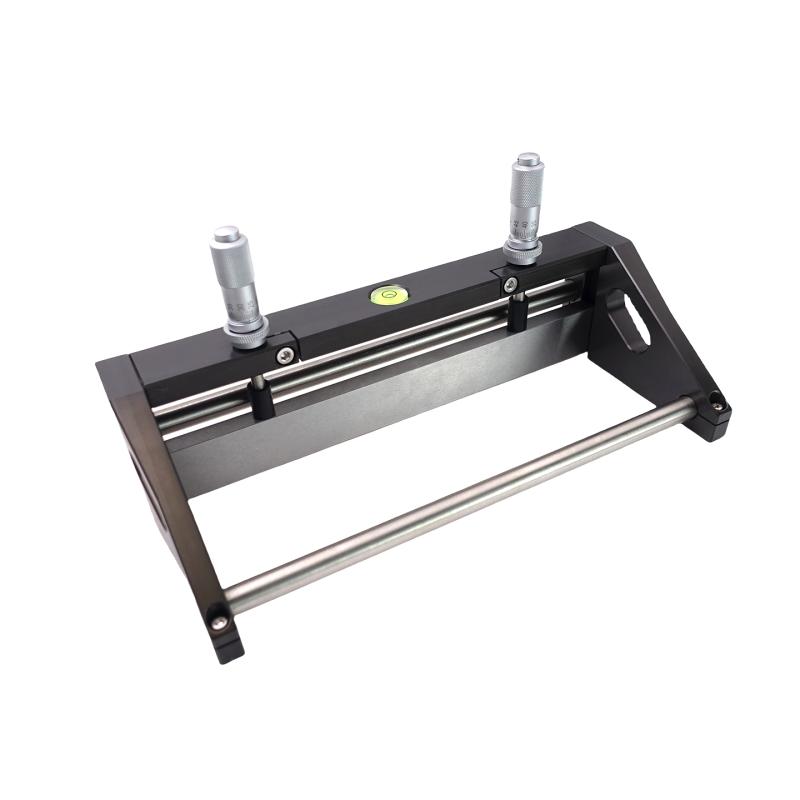

HuiNuo KTQ-350 Adjustable Preparation Film Applicator film thickness 0~5000μm

KTQ-350

Adjustable Film Applicator

Film thickness 0~5000μm adjustable, accuracy +/- 2μm, die steel drawdown blade with high Hardness and abrasion resistance, suitable for a variety of application widths.

Product Introduction

Huinuo adjustable preparer is a wet film preparer with adjustable coating thickness, there are two differentiators above the adjustable preparer, which can adjust the lower scraper in the upper and lower directions to control the gap by adjusting the two differentiators of the preparer, and the size of the gap is the thickness of the final coating. The adjustable wet film preparer is a scale differential head, which is displayed by the scale and the index value of the differential head is 10 μm. KTQ-S series tunable wet film preparer is a digital microscope splitter,The digital microscopic split head adjusts the index value1μm。

The coating film range of the adjustable preparer is adjustable from 0~5000 microns, coating filmprecision±2μm；The frame material isAluminum is hard oxidized, and the scraper material is mold steel。 Different adjustable Film Applicators have different form factors and different weights.

Features

1. Non-digital scale differential head, index value 10μm;

2. The mold steel scraper material has the advantages of high hardness, wear resistance and corrosion resistance;

3. A large range range, 0~5000 microns adjustable;

4. 50mm, 100mm, 150mm, 200mm, 250mm multiple coating widths can be selected;

5. The straightness of the blade of the scraper is ± 2μm

Packing list：Adjustable Applicator × 1, Certificate X1, Manual X1, Warranty Card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
