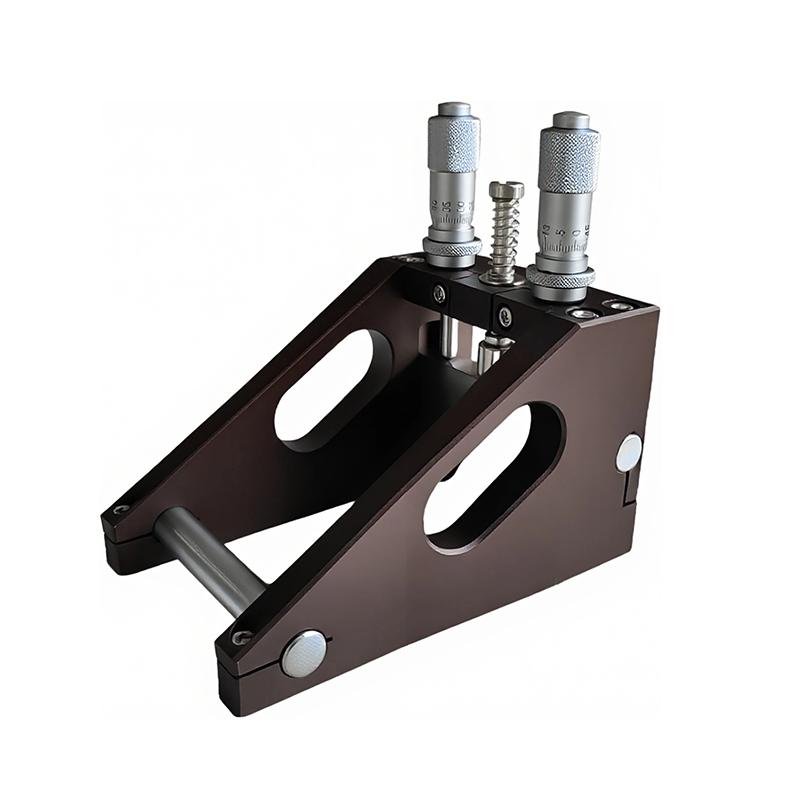

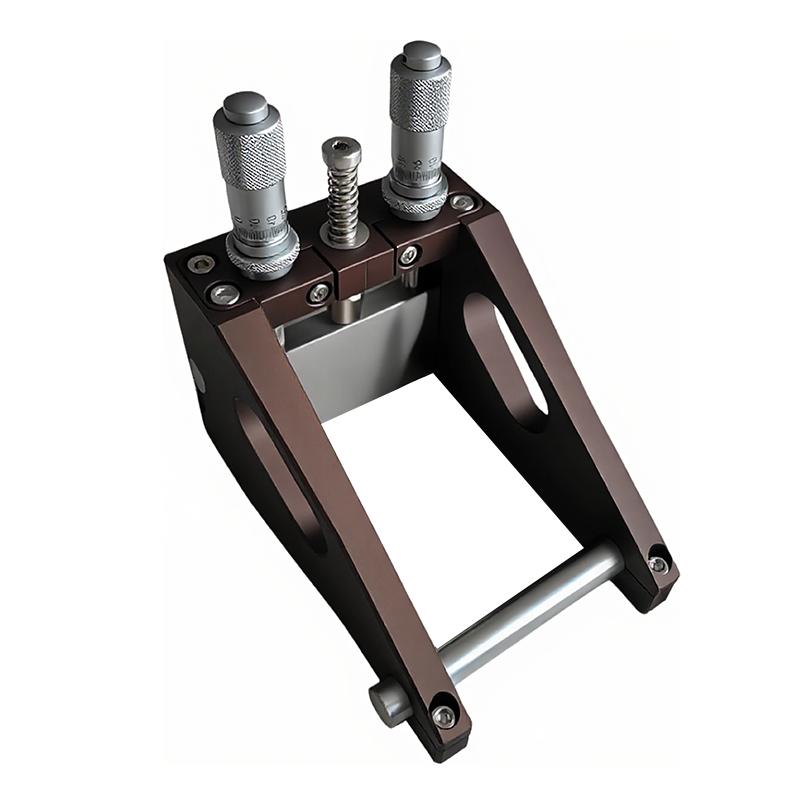

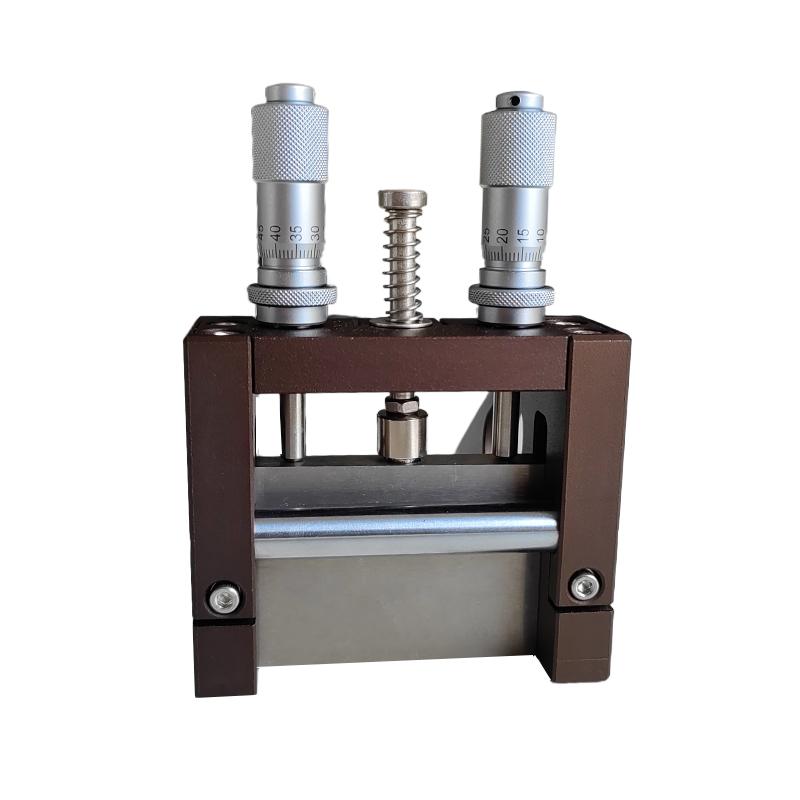

HuiNuo KTQ-55 Adjustable Coating Applicator Differential film Applicator 0-5000μm

KTQ-55

Adjustable Film Applicator

Magnetic detachable drawdown blade is easy to clean, scale differential head adjustment, Graduation 10μm; Die steel drawdown blade Hardness, wear resistance and corrosion resistance; film thickness 0-5000μm adjustable, drawdown blade straightness +/- 2μm.

Product Introduction

Huinuo adjustable preparer is a wet film preparer with adjustable coating thickness, and there are two differentiators above the adjustable preparer, which can be adjustedPreparerThe two differential heads can adjust the scraper below in the up and down directions to control the gap, and the size of the gap is the thickness of the final coating. KTQ series adjustable wet film preparer is a scale differential head, which is displayed by the scale and the index value of the differential head is 10μm； KTQ-S series tunable wet film preparer is a digital microscope splitter,Digital microscope split head adjustmentIndex value1μm。

The coating film range of the adjustable preparer is adjustable from 0~5000 microns, coating filmprecision±5μm；The frame material isAluminum is hard oxidized, and the scraper material is mold steel。 Different adjustable Film Applicators have different form factors and different weights.

Features

1. non-digital scale differential head,Index value10μm；

2. The mold steel scraper material has the advantages of high hardness, wear resistance and corrosion resistance;

3. A large range range, 0~5000 microns adjustable;

4. 50mm, 100mm, 150mm, 200mm, 250mm multiple coating widths can be selected;

5. The straightness of the blade of the scraper is ± 2μm

Packing list：Adjustable Applicator × 1, Certificate X1, Manual X1, Warranty Card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
