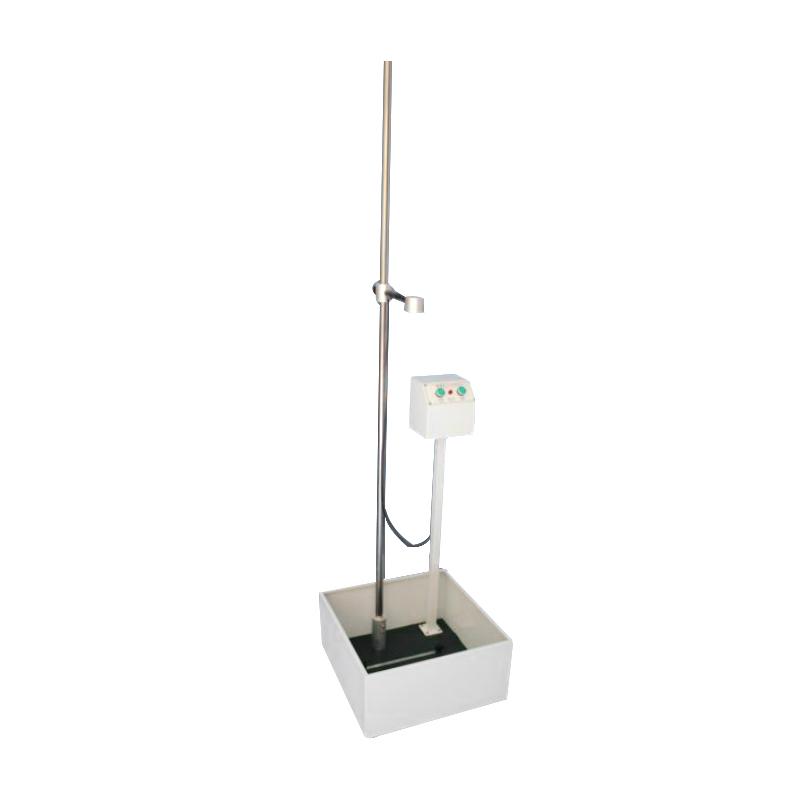

CHINA BLD-CJ21 (2M) Impact Tester Plastic, Ceramic, Acrylic fiberglass

BLD-CJ21(2M)

Drop Impact Tester

Test plastics, ceramics, acrylic, fiberglass and other materials, drop height 0-2000mm adjustable, in line with JIS-K6745, A5430 test standards.

Product Introduction

Drop ball impact Tester is a type of test for the firmness of plastics, ceramics, acrylic, glass fiber and other materials and coatings. This equipment complies with JIS-K6745 and A5430 test standards. This machine adjusts the steel ball of a certain weight to a certain height, so that the steel ball falls freely to hit the sample, and judges the quality of the test product according to the degree of damage.

Structural features:

The structural characteristics of the falling ball impact testing machine are as follows:

1. Ball Drop Device: The testing machine contains a specially designed ball drop device, usually consisting of a guide rail, release mechanism, and sphere. The mass and diameter of the sphere are determined based on the required impact energy and test criteria.

2. Height Adjustment System: The testing machine has an adjustable height system to control where the sphere falls freely to control the energy and position of the impact. Height adjustment is usually achieved using a spiral mechanism or air pressure control.

3. Test Bench: The testing machine features a stable test bench that supports and secures the sample to be tested. Test benches are usually anti-slip and shock-absorbing to ensure the stability and safety of the testing process.

4. Data Logging and Display System: The testing machine is equipped with a data logging and display system, which can record and display test data such as impact force, impact energy, and failure form in real time. This data is crucial for evaluating the impact resistance of materials.

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
