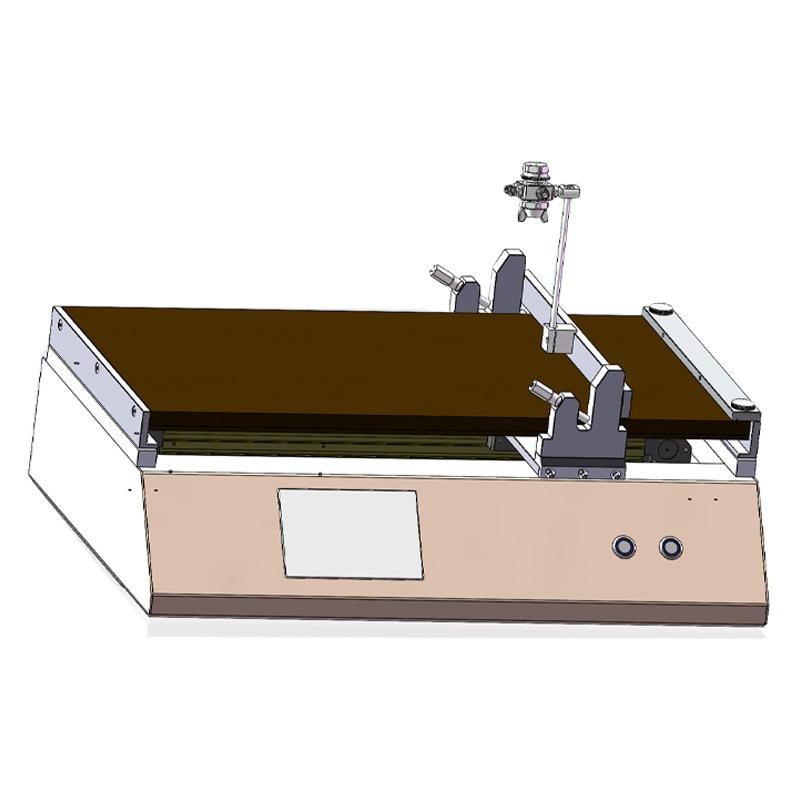

HuiNuo TM1000SPpro automatic lame plating machine Maximum width of lame plating 200mm
SELame plating movement rate 1-300mm/s, accuracy +/- 1%, support up to 600 * 300mm substrate, Spreader travel is flexible, 5 inch touch screen control operation is convenient.
$3491.00/set
PromotionLoading...
Coupon
Model：
TM1000SPpro
HuiNuo TM1000SPpro Automatic lame plating machineSPEC
HuiNuo TM1000SPpro Automatic lame plating machineDetails
HuiNuo TM1000SPpro Automatic lame plating machinePacking list
- SKU
- NB050247
- Lame plating movement rate
- 1-300mm/s
- Wire speed Accuracy
- ±1%
- Spreader Itinerary
- 10~400mm
- Precision of stroke length
- ±2mm
- Maximum film substrate area
- 600*300mm
- Maximum test cardboard thickness
- 10mm
- Maximum test substrate thickness
- 10mm
- Maximum width of lame plating
- 250mm
- Coating ejection
- 60-290L/min
- Coating supply method
- Pressure-feeding type with 1L stainless steel pressure drum
- spoke size
- 50-250mm
- Air usage
- 40-170L/min
- air pressure
- 0.3Mpa
- Miscellaneous film applicator width
- 300mm
- Miscellaneous film applicator adjustable film thickness
- 0.01~ 13Mm (can be customized if required)
- Applicable standard
- ASTM D823
- Dimension
- 440 * 660 * 550Mm (including nozzle)
- Overall Weight
- 45kg
- Host Power Supply
- AC 220V 50Hz
- energy consumption
- 100W
- Drive motor
- Closed loop motor
- Display
- 480 * 272 pixel 5 inch TFT display
- language
- Chinese
- Control mode
- Screen touch control
TM1000SPpro
Automatic lame plating machine
Lame plating movement rate 1-300mm/s, accuracy +/- 1%, support up to 600 * 300mm substrate, Spreader travel is flexible, 5 inch touch screen control operation is convenient.
Product Introduction
TM1000SPpro automatic spraying machine has excellent performance, spraying movement rate of 1-300mm/s, accuracy of ±1%, flexible coating stroke, support up to 600*300mm substrate, spray thickness of 0.01~13mm (higher can be customized). With 1L stainless steel pressure drum, paint spray volume 60-290L/min, spray spokes are adjustable, in line with ASTM D823 standard. The 5-inch touch screen control is easy to operate and has low energy consumption to meet a variety of spraying needs.
FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
