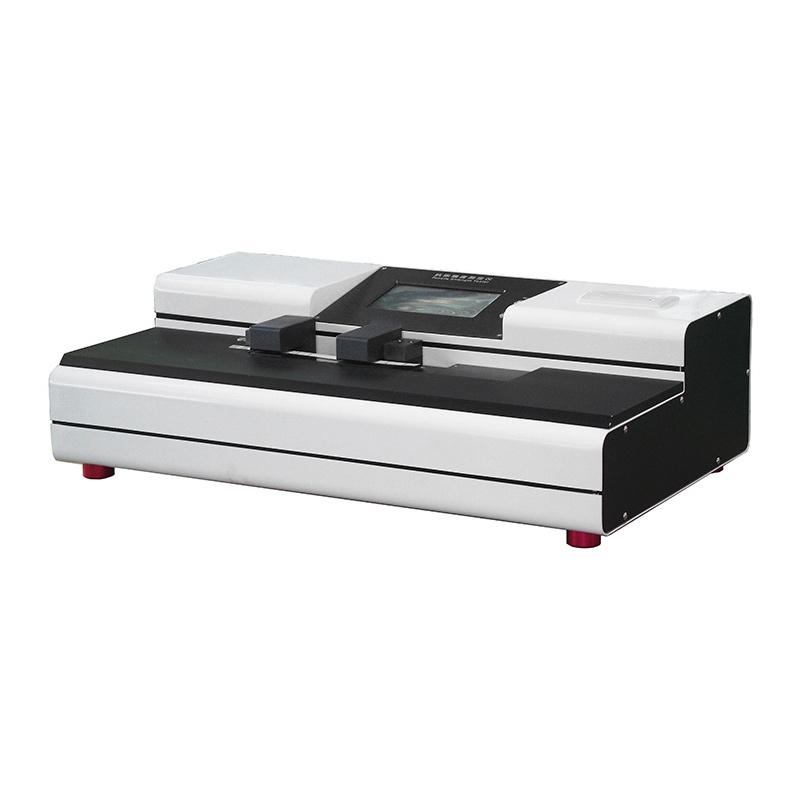

Yunda YD-KZ-W horizontal computer tensile Tester, Tensile Strength Tester
YD-KZ-W
YunDa YD-KZ-W Horizontal computer tensIon MeterSPEC
YunDa YD-KZ-W Horizontal computer tensIon MeterDetails
YunDa YD-KZ-W Horizontal computer tensIon MeterPacking list
- SKU
- NB050249
- Operating Environment
- Temperature (10~35) ℃, Relative Humidity ≤ 85%
- Measurement range
- (0.15~ 30) N/(1~ 300) N/(3~ 1000) N (range optional)
- Indication resolution
- 0.01N(WL30) / 0.1N(WL300) / 0.1N(WL1000)
- error of indication
- +/- 1% (range 5%~ 100%)
- Working Travel
- 300mm
- Specimen width
- 15Mm (25mm, 50mm optional)
- stretching speed
- (1~ 500) mm/min (can be adjusted arbitrarily)
- Thermal printer
- communication interface
- RS232 (default) (USB, WIFI optional)
- show
- 7-Inch color touch screen
- Power supply Voltage
- AC(100～240)V，(50/60)Hz 100W
- Dimension
- 800×400×300 mm
- Net Weight of instrument
- About 35kg
Product Introduction
This instrument adopts a unique horizontal design, which is a new type of instrument researched and developed according to the requirements of the new national standards, and is mainly used in papermaking, plastic film, chemical fiber fiber, aluminum foil production and other industries and other production and commodity inspection departments that need to measure the tensile strength of objects.
Scope of application:
paper, cardboard; aluminum foil, aluminum plastic strip;
plastic film and other non-metallic materials.
Non-woven fabric
Features
Tensile strength, tensile strength, and wet tensile strength of toilet paper were measured
Elongation, fracture length, tensile energy absorption, tensile index, tensile energy absorption index, and elastic modulus were measured
Measure the peel strength of the tape
Product characteristics:
The transmission mechanism is guided by ball screw and linear guide rail, and the transmission is smooth and accurate.
Servo stepper motor is adopted, with low noise and precise control.
Display of the stretch curve in real time.
ARM processor, which improves the response speed of the instrument and ensures the real-time performance of the measurement.
Sudden power failure data saving function, data retention after power on and before power off can be continued for testing.
Features of automatic reset, data memory, overload protection and fault self-diagnosis.
Communicate with microcomputer software (sold separately).
Implementation standards
GB/T 12914，GB/T 2792，GB/T 24218.3，GB/T 1040，TAPPI T 494
