Brand：HuiNuo
Model：TM3200pro/FJ

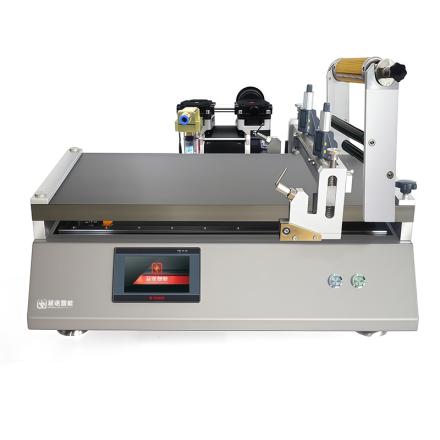

Name：Automatic Film Applicator (with manual unwinding)
Specifications
| Coating Method | Bar + drawdown blade |
| Coating Speed | 1~ 300Mm/s stepless speed regulation (can be customized) |
| Substrate clamping method | Vacuum chuck + fixture |
| Coating table material | Surface hard treatment aluminum alloy |
| Coating table size | 600 * 300Mm (subject to actual customization) |
| Effective coating Area | 400 * 300Mm (can be customized) |
| Meyer rod coating thickness Range | Different bar numbers have different thicknesses, with high-precision imported bars |
| Meyer rod coating Accuracy | ±0.001mm |
| Drawdown blade Coating thickness range | 0.1~ 10Mm (clamshell design is easy to clean) |
| Custom substrate unwinding module | Head manual unwinding |
| unroll width | ≤300mm |
| Drawdown blade material | Die steel |
| Drawdown blade application width | 300mm |
| Drawdown blade Spreader Accuracy | ±0.003mm |
| Vacuum chuck size | 480 * 260Mm (can be customized) |
| Vacuum Aperture | Φ0.8mm |
| Vacuum hole pitch | 20*20mm |
| Drive motor | Servo motor |
| Pumping Speed | 5.4m3/h |
| Ultimate Vacuum | 50KPa |
| Vacuum Pump Power | 180W |
| Vacuum pump Weight | 7.1kg |
| Operating language | Chinese (can be customized in English) |
| Power | 600w |
| Display | Color LCD touch screen |
| Host Power Supply | 220V/50HZ (can be customized 110V/60HZ) |
| Dimension | 658 * 438 * 400mm (subject to actual customization) |
Packing list
Film Applicator X1, bar x1, drawdown blade x1, manual unwinding module x1, product manual X1
After-sales instructions
Warranty days: 730 days
1.仪器设备非人为造成的产品质量问题，在质保期内厂家提供免费质保服务；
2.易损易耗配件不存在质保期，收到货发现产品质量问题，请在7天内申请退换货，逾期不候；
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/50252/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
