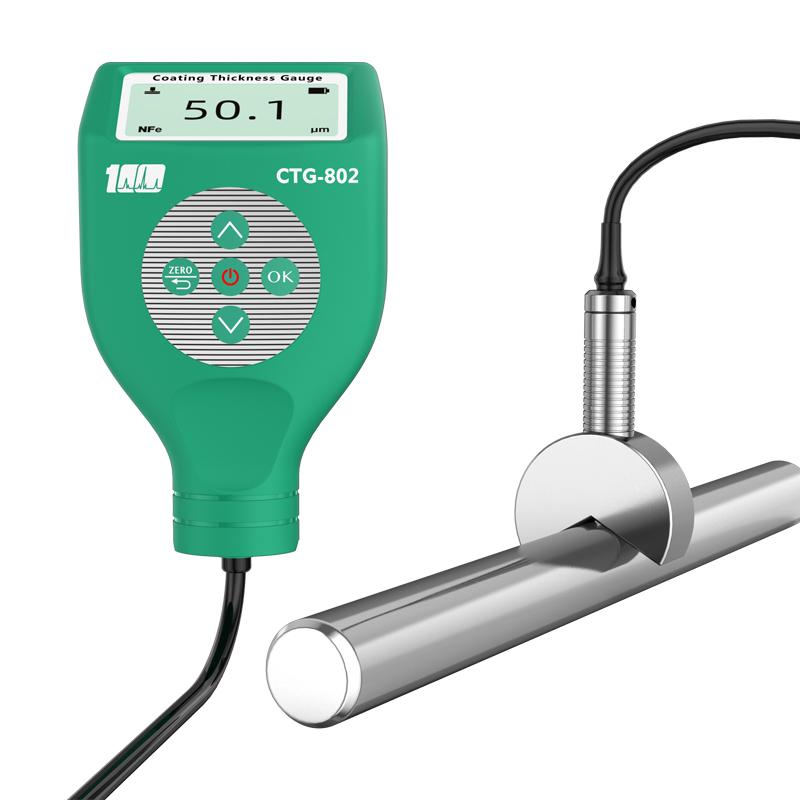

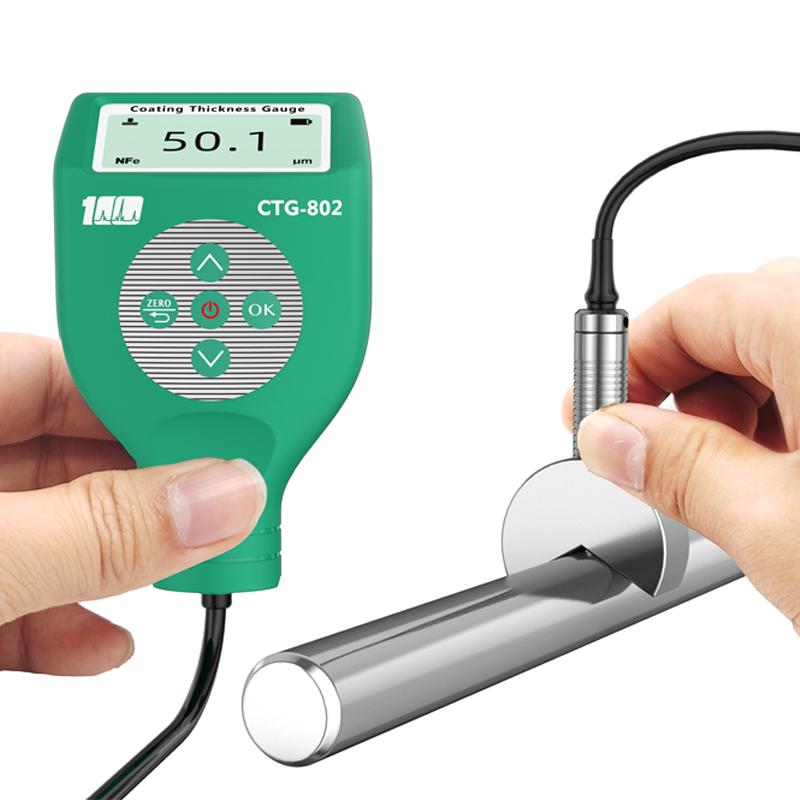

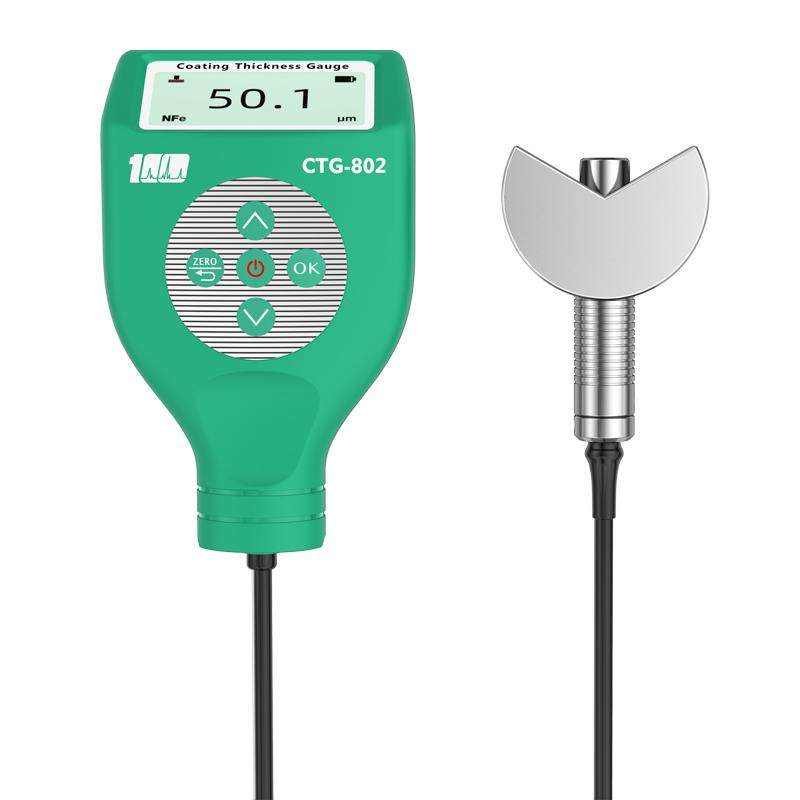

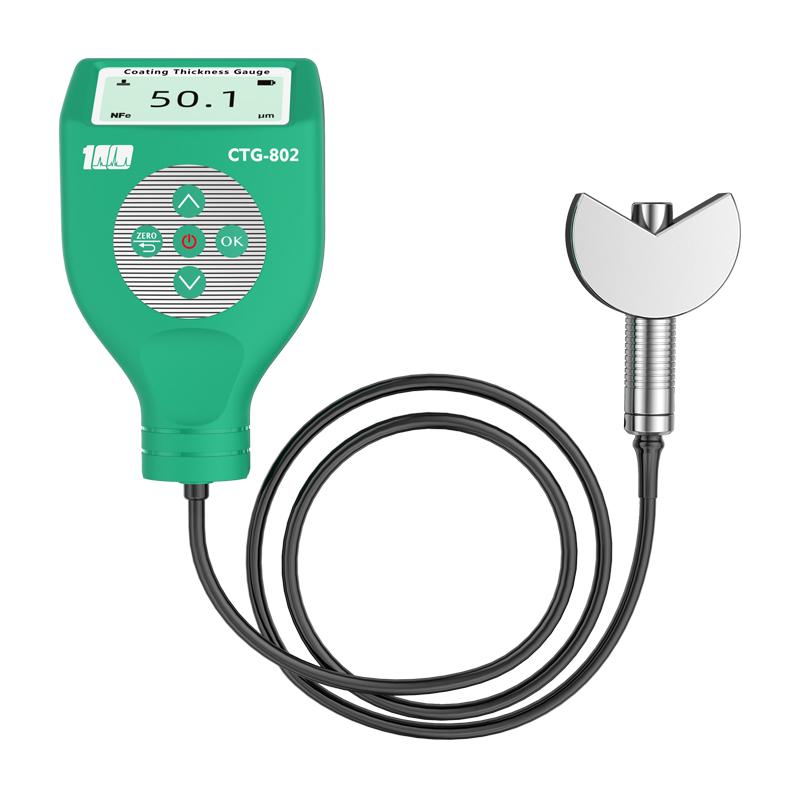

YIBAI CTG-802-3000FNV split iron and aluminum dual-use standard large V-shaped Coating Thickness Gauge

CTG-802-3000FNV split iron-aluminum dual-use standard large V type

Coating Thickness Gauge

Using magnetic Induction and eddy Current automatic conversion technology, Measurement range 0~3000μm, resolution 0.1μm, with super wear-resistant carbide probe, wear-resistant more than 500,000 times, Measurement speed 0.3 seconds/time.

Product Introduction

CTG-802-3000FNV is a split coating Thickness Gauge for both iron and aluminum, which can automatically identify the substrate and adopts magnetic induction and eddy current automatic conversion technology. The measurement method is in line with the international standard ISO2178, ISO2360 and national standards GB4956, GB4957. It can be used for fast, non-destructive, and precise measurement of coating and coating thickness, both in the laboratory and in the engineering field. This instrument is widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields, and is a common instrument for material protection.

Instrument features:

• The thickness of non-magnetic overlays (such as aluminum, chromium, copper, zinc, enamel, rubber, paint, powder, etc.) on magnetic metal substrates (such as steel, iron, alloys and hard magnetic steels, etc.) and the thickness of non-conductive overlays (enamel, rubber, paint, plastic, etc.) on non-magnetic metal substrates (such as copper, aluminum, zinc, tin, etc.) can be measured non-destructively.

• The spring-loaded sleeve probe with ultra-wear-resistant carbide probe can also ensure that the probe has constant pressing force and stable sampling value when measuring on hard or rough surfaces, and the probe is wear-resistant for more than 500,000 times.

• The measurement speed can reach 0.3 seconds/time.

• High accuracy, good stability, can measure 1-5μm ultra-thin coating.

• Wide measurement range and high resolution.

• The light touch measurement accuracy is good.

• It can quickly and automatically identify magnetic and non-magnetic substrates.

• Integrated structure, small size and light weight.

• It adopts a dot matrix backlight display with no parallax, making it suitable for night use.

• This instrument is equipped with automatic shutdown to achieve power saving function.

Packing list：Host X1, Portable Encasement Box X1, Iron Substrate X1, Aluminum Substrate X1, Large V Sleeve X1, Standard Sheet X5, No. 7 Battery X2, Manual X1, Certificate X1, Warranty Card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
