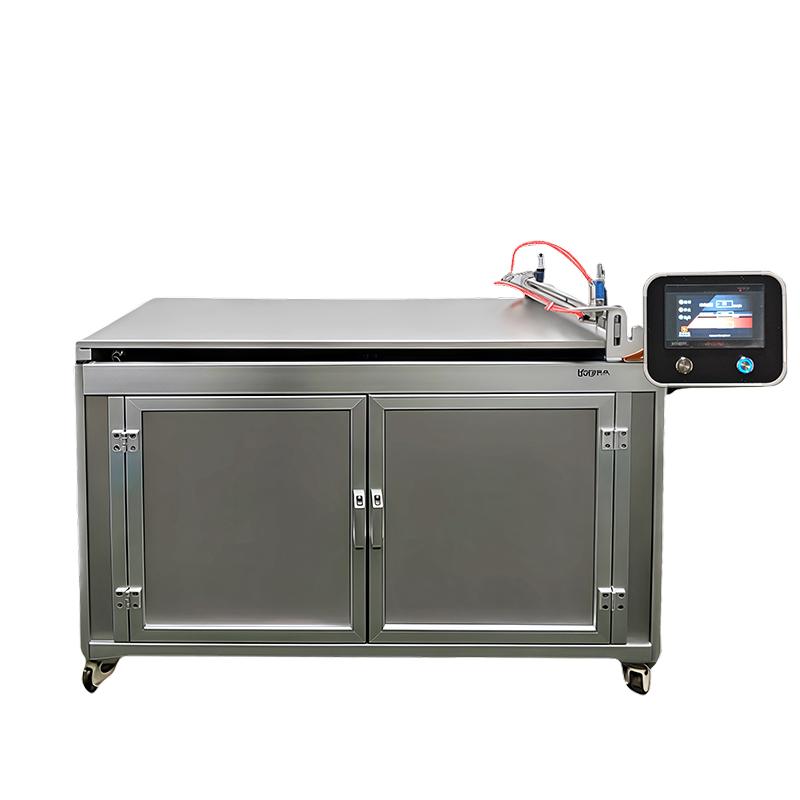

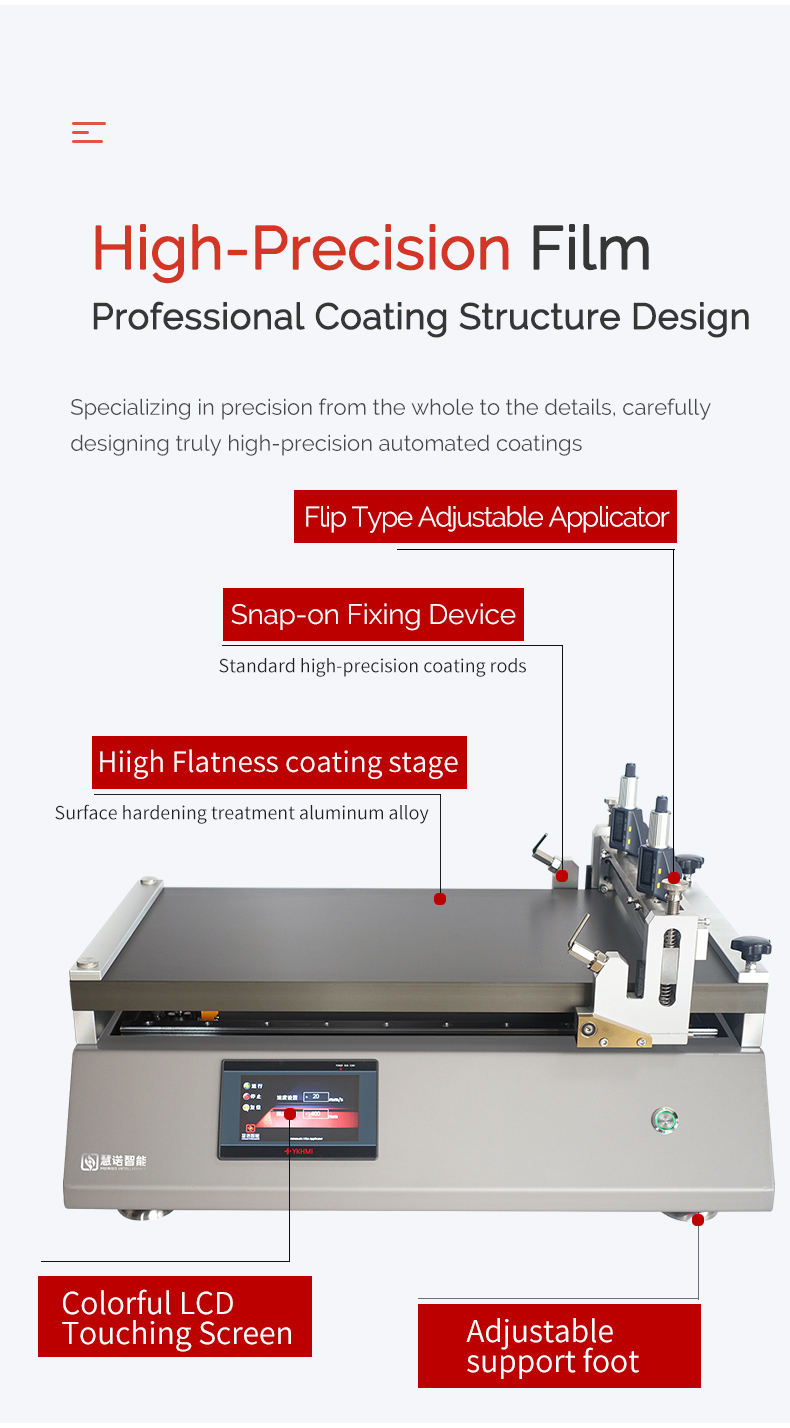

HuiNuo TM3100Pro/05AFD Floor Type Automatic Film Applicator drawdown Bar & blade Spreader 200 * 100cm
SEAdopt bar + Drawdown blade double coating method, coating speed 1~ 300mm/s stepless speed regulation, equipped with high-precision imported bar accuracy of +/- 0.001mm. Glass plate table size 2240 * 1030mm, optional heating function Temperature uniformity +/- 1 ℃.
Price: Please contact customer service
Model：
TM3100pro/05AFD
HuiNuo TM3100pro/05AFD Automatic Film ApplicatorSPEC
HuiNuo TM3100pro/05AFD Automatic Film ApplicatorDetails
HuiNuo TM3100pro/05AFD Automatic Film ApplicatorPacking list
- SKU
- NB050260
- Coating Method
- Bar + Drawdown blade

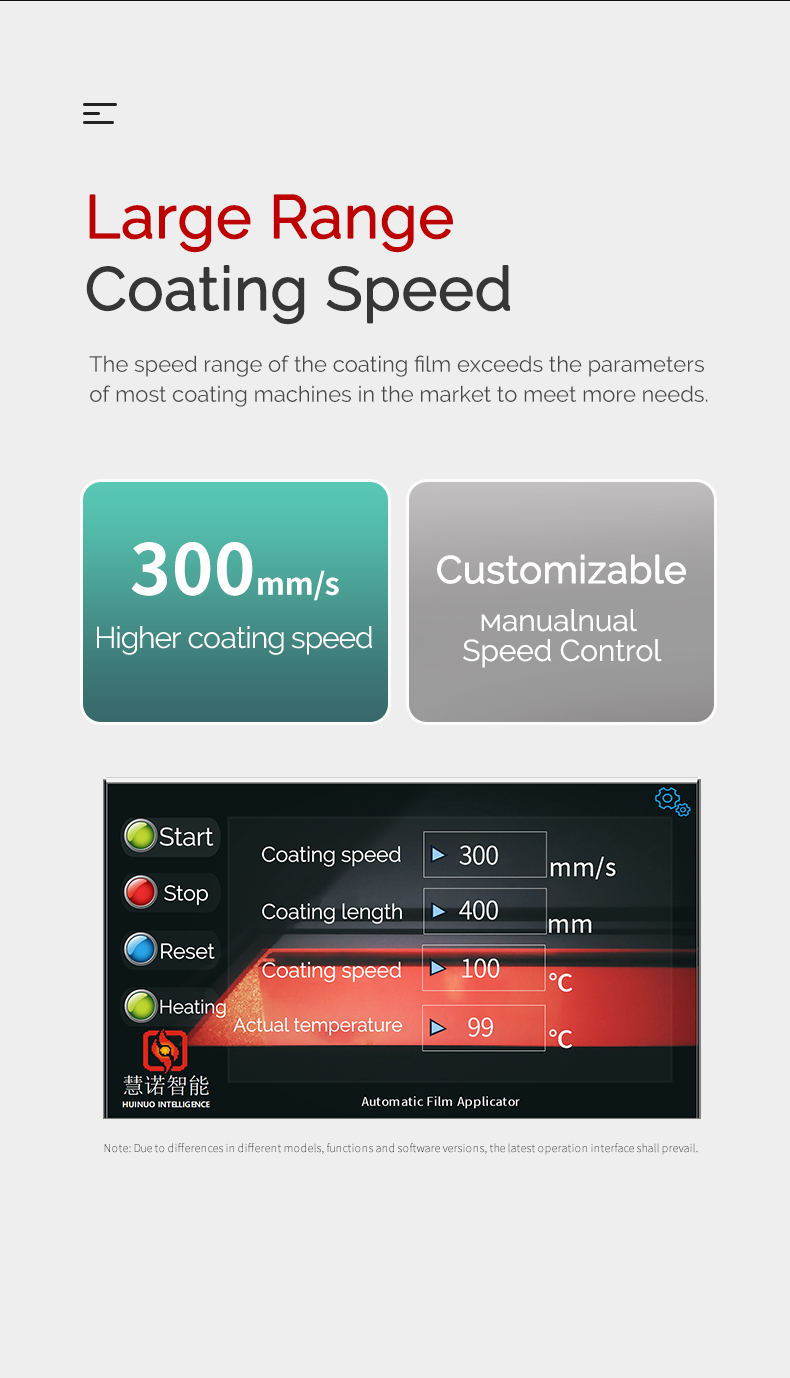

- Coating Speed
- 1~ 300Mm/s stepless speed regulation (can be customized)

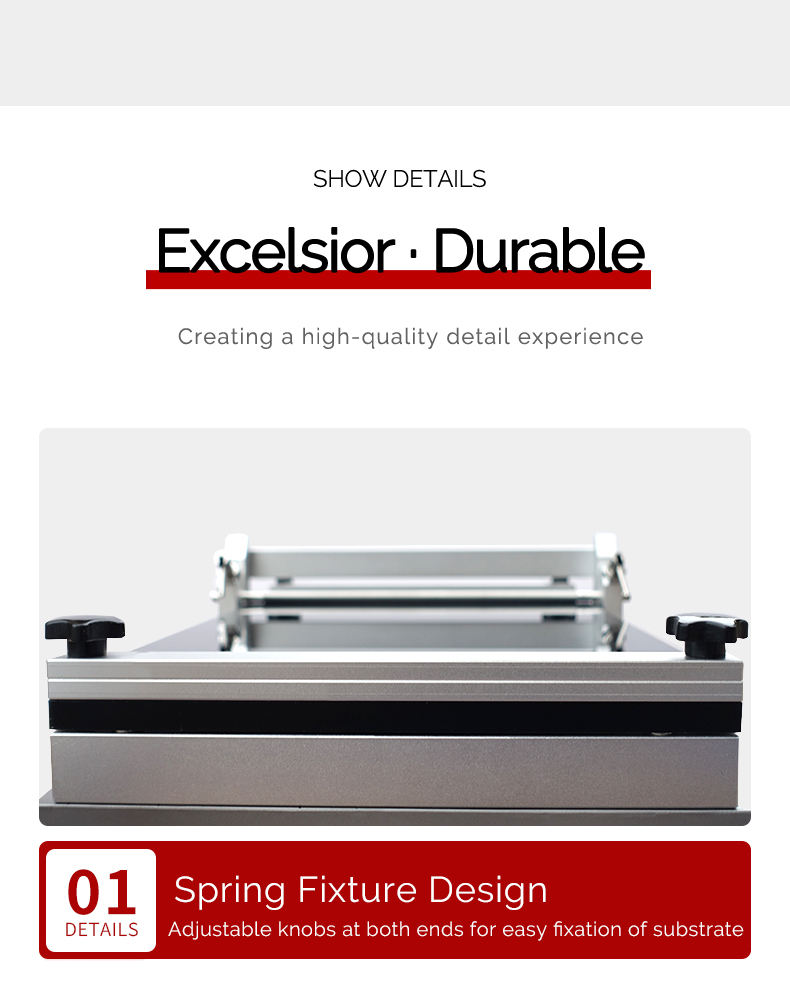

- Substrate clamping method
- fixture

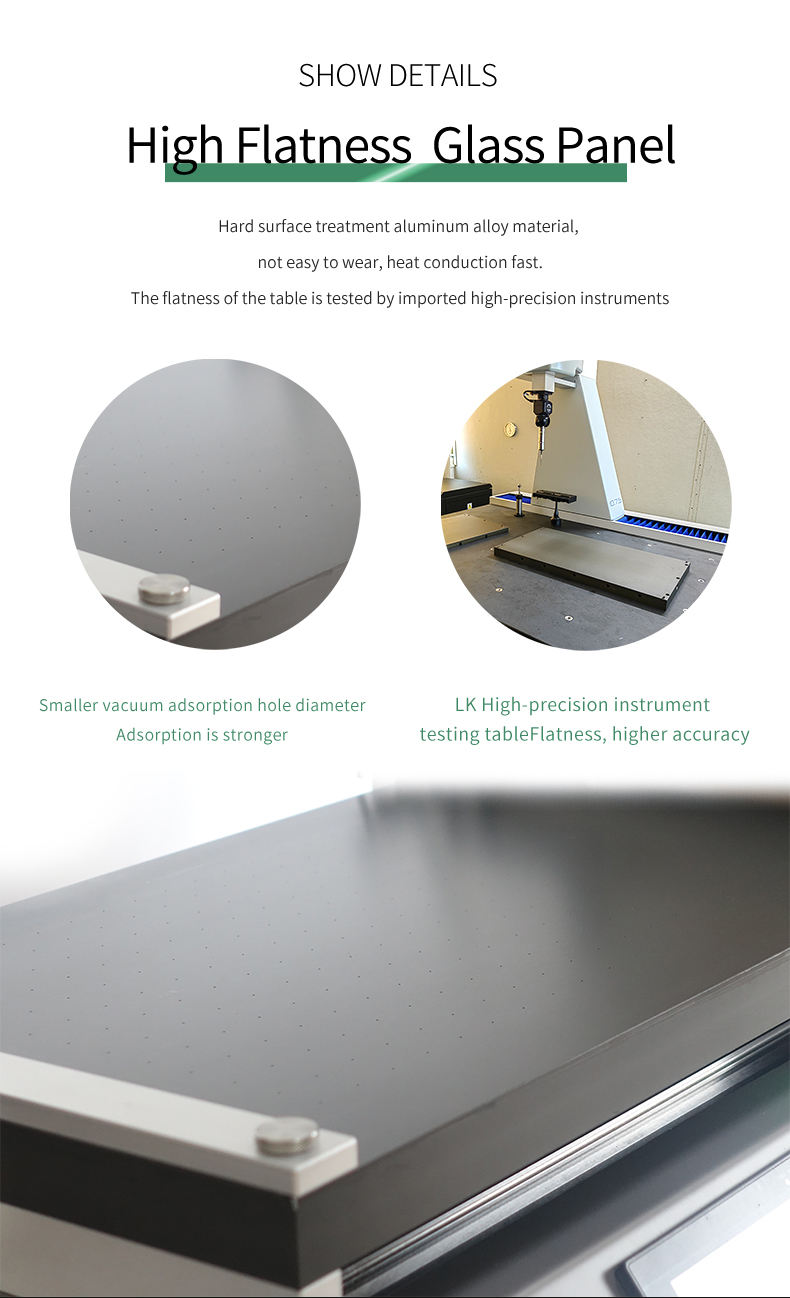

- Coating table material
- Glass plate
- Coating table size
- 2240*1030mm
- Effective coating Area
- 2000 * 1000Mm (can be customized)
- Meyer rod coating thickness Range
- Different bar numbers have different thicknesses, with high-precision imported bars
- Bar Accuracy
- ±0.001mm
- Drawdown blade Coating thickness range

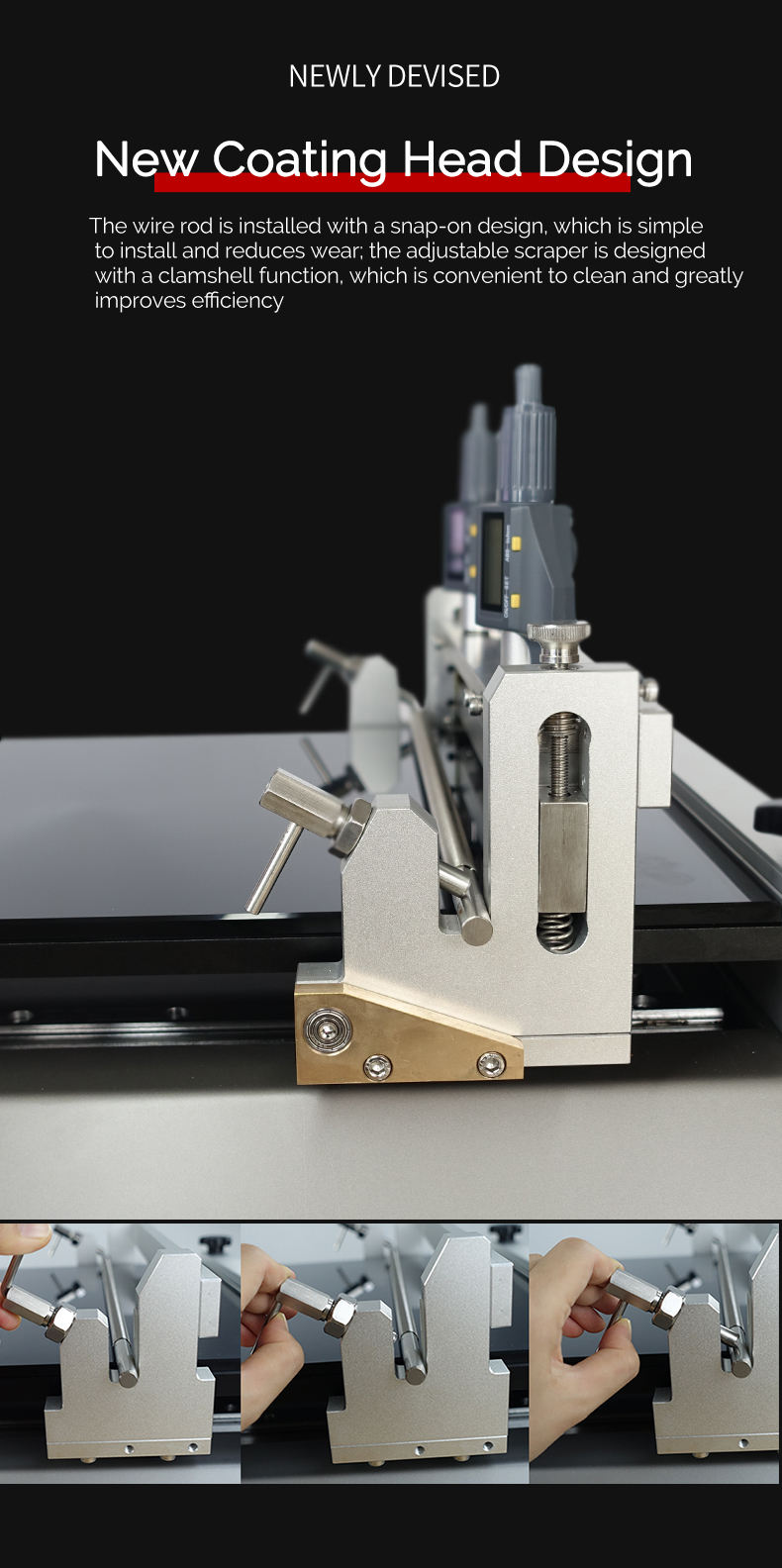

- 0.1~ 10Mm (clamshell design is easy to clean)
- Drawdown blade material
- Die steel
- Drawdown blade application width
- 1000mm
- Drawdown blade Spreader Accuracy
- ±0.003mm
- Dimension
- 2260 * 1140 * 940Mm (subject to the actual product)
- standard feature
- Automatic feeding system
- Feeding principle
- Air source pressure flows out
- Feed Sport Mode
- Reciprocating linear motion
- Feeding back and forth traverse speed
- 2~150mm/s
- spit Volume
- Adjustable (by adjusting the air pressure and the running speed of the discharge port)
- Shaft transmission mode
- Timer belt
- Feeding system air source
- 0.6Mpa, which can be connected to the trachea of < unk > 8 (self-equipped).
- Power Voltage of charging system
- 220V,50Hz
- Tank pressure
- Maximum withstand 8Mpa
- Material of feeding barrel
- 304 stainless steel with a wall thickness of 4mm
- Feeding bucket configuration
- Safety valve, pressure regulating valve, pressure gauge, discharge valve
- Feeding drum Volume
- 1L
- Heating mode
- Mica sheet heating (optional graphene heating, faster thermal conductivity)
- Temperature range
- RT +~ 180 ℃ (can be customized)
- Temperature Uniformity
- ±1℃
- Power
- 400w
- Display
- Color LCD touch screen
- Operating language
- Chinese (can be customized in English)
- Host Power Supply
- 100V~220V/50~60HZ
- optional feature
- Heating, Vacuum chuck
TM3100pro/05AFD
Automatic Film Applicator
Adopt bar + Drawdown blade double coating method, coating speed 1~ 300mm/s stepless speed regulation, equipped with high-precision imported bar accuracy of +/- 0.001mm. Glass plate table size 2240 * 1030mm, optional heating function Temperature uniformity +/- 1 ℃.
