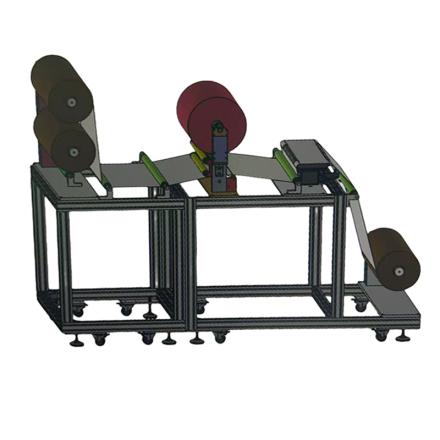

Factory RTRMA-600 Double station unwinding, laminating, hot pressing and winding machine Specifications
Search
Brand：Factory
Model：RTRMA-600
Name：Double station unwinding, laminating, hot pressing and winding machine
Specifications
| Maximum coil width | 600Mm (adjustable within 600mm) |
| Coil outer diameter | Max φ 800mm (substrate 1 & 2) |
| winding outer diameter | Max Φ1000mm |
| Fitting speed | 2-10M/min (stepless speed regulation) |
| unwinding station number | 2 station |
| edge correction machine | 2 front unwinding units correct the edges of the unwinding material respectively |
| edge correction machine | Rear end winding motor for material edge correction winding |
| unwinding method | Inflatable shaft active unwinding |
| Reel diameter | 3 inches. |
| tension control | Magnetic particle braking + PLC closed loop (Accuracy +/- 1%) |
| Deviation correction device | Automatic correction (Accuracy +/- 1mm) |
| Heating device | trough heating |
| Hot pressing method | Double roll hot pressing (upper roll silicone/lower roll steel roll) outer diameter: 150mm |
| heating temperature | Room temperature -200 ℃ (PID temperature control +/- 1 ℃) |
| line pressure | 5-50N/mm (adjustable) |
| Roll surface width | 600Mm (effective heating zone 600mm) |
| Pressurization method | Cylinder pressurization (with pressure sensor) |
| winding method | Center winding + surface assisted winding |
| tension control | 0-200N (PLC dynamic adjustment) |
| Winding Accuracy | Flush error ≤ +/- 1mm |
| Rack material | Q235 carbon steel (surface spray treatment) |
| Number of guide rollers | 8 (chrome-plated hard steel rolls) |
| Guide roller diameter | φ 100mm (straightness ≤ 0.02mm/m) |
| upper roll | φ 250mm Silicone Roller (Shore Hardness 80A) |
| Lower roll | φ 300mm chrome-plated steel roller (mirror-polished Ra ≤ 0.2μm) |
| Human Machine Interface | Color touch screen (including parameter settings) |
| Drive system | Servo motor |
| safety protection | Emergency stop button, overload protection/temperature overrun alarm |
| gas source | 0.5-0 MPa compressed air |
| Host Power Supply | AC380V (three-phase) 50Hz |
| Machine size | 2000 * 900 * 2000Mm (subject to actual customization) |
| Machine Weight | About 600kg (subject to actual customization) |
Packing list
The whole machine x1, the correction system x3, the hot pressure roller x2, the manual x1, and the certificate x1.
After-sales instructions
Warranty days: 365 days
