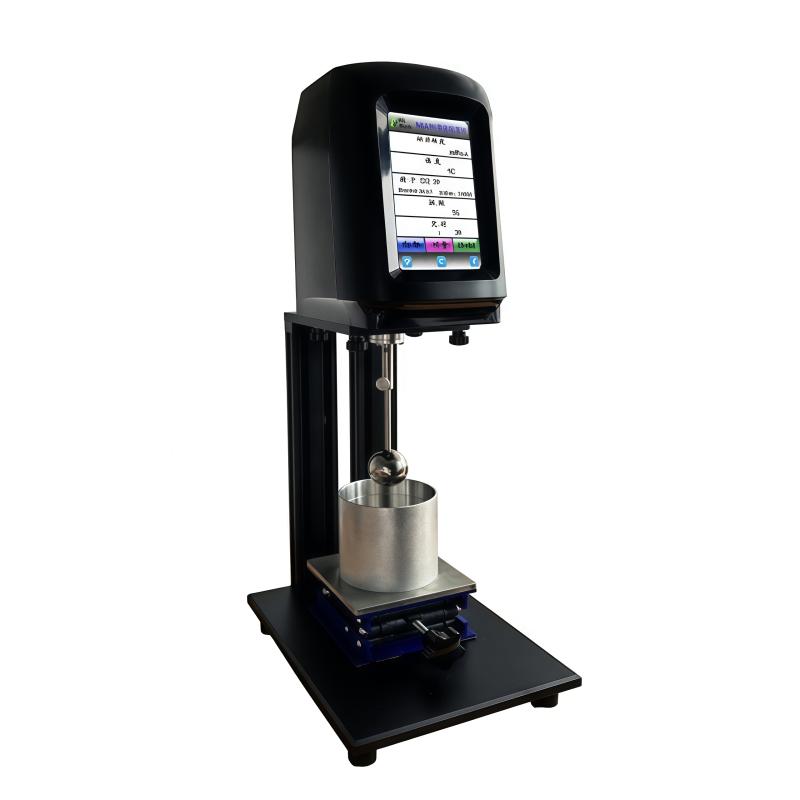

NIRUN DRV-1T dilute Rotational Viscometer anti-static shell 5 inch touch screen
SE5-Inch touch screen is easy to operate, anti-static shell design is safe and reliable, equipped with three rotors to measure 0-55000mPa.s fluid viscosity, Measurement accuracy of +/- 1.0%.
$1781.00/set
PromotionLoading...
Coupon
Model：
DRV-1T
NiRun DRV-1T Diluted Rotational ViscometerSPEC
NiRun DRV-1T Diluted Rotational ViscometerDetails
NiRun DRV-1T Diluted Rotational ViscometerPacking list
- SKU
- NB050287
- Measurement range (mPa.s)
- D1 Rotor: Provides 200S-1 shear rate for measurement of viscosity value 0-2200mPa.s Fluid D2 Rotor: Provides 44S-1 shear rate for measurement of viscosity value 10-10000mPa.s Fluid D3 Rotor: Provides 20S-1 shear rate for measurement of viscosity value 100-55000mPa.s Fluid
- Rotor speed (rev/min)
- 562 RPM ±0.1
- Measurement container
- Meet the requirements 250ml measurement tank (inner diameter 74mm, height 74mm)
- Number of rotors
- One each for D1, D2, and D3
- Measurement Accuracy
- +/- 1.0% (full scale)
- Repeatability
- ±0.5%
DRV-1T
Diluted Rotational Viscometer
5-Inch touch screen is easy to operate, anti-static shell design is safe and reliable, equipped with three rotors to measure 0-55000mPa.s fluid viscosity, Measurement accuracy of +/- 1.0%.
Technical characteristics:
5-inch touch screen, easy to operate, rich display information
Anti-static housing, RTD temperature probe as standard
ARM chip processor for faster data processing
The manual lifting frame structure design reduces the requirements of test liquid level control
Complies with the coatings industry standard ISO 2884-2, BS 3900 A7
The stepper motor is directly driven, without gears, and the speed is accurate
Viscosity value, temperature value, timing function can be locked
The viscosity value shows continuous variation
With automatic test data output print port
Computer full-scale linear correction
AC power adapter 100V-240V, good anti-interference
FAQ
QOur laboratory mainly measures the viscosity of coatings and requires compliance with ISO standards. Do you have any recommendations?
A
The recommended NIRUN DRV-1T dilute rotational viscometer, which meets the coatings industry standard ISO 2884-2, ensures that your test results are consistent with international standards and is suitable for quality control in the coatings industry.
QThe laboratory needs to measure the viscosity of the fluid under different shear rates. What is the recommendation?
A
DRV-1T is suitable, its D1/D2/D3 rotor provides 200S-1, 44S-1, 20S-1 shear rate, covering low, medium and high viscosity fluids, stepper motor direct drive to ensure accurate Rotation speed, suitable for studying fluid behavior under different shear conditions.
QI want to measure the viscosity of the paint, which instrument is suitable?
A
Recommended NIRUN DRV-1T dilute rotational viscometer, which conforms to the coatings industry standard ISO 2884-2 and BS 3900 A7, can accurately measure the viscosity of coatings at different shear rates, ensuring product mass stability.
QThe laboratory needs to measure fluids of different viscosity, how to choose a rotor?
A
DRV-1T is equipped with three rotors: D1 measures 0-2200mPa.s low viscosity fluid, D2 measures 10-10000mPa.s medium viscosity, and D3 measures 100-55000mPa.s high viscosity. Just choose the corresponding rotor according to your sample viscosity range, and the operation is simple.
QWhich Viscometer is Suitable for Measuring Coating Viscosity?
A
The recommended NIRUN DRV-1T rotational viscometer is specifically compliant with ISO 2884-2 standards for the coatings industry, with three rotors covering a viscosity range of 2000 to 50,000 mPa · s and an anti-static housing that securely detects solvent-based paints.
QHow to choose equipment that can measure different viscosity samples in the laboratory?
A
It is enough to choose DRV-1T. It is equipped with three rotors, D1/D2/D3, and can measure both low, medium and high viscosity. The manual lifting frame has low liquid level requirements, and the 5-inch touch screen operation is also simple, making it suitable for multi-sample testing in the laboratory.
