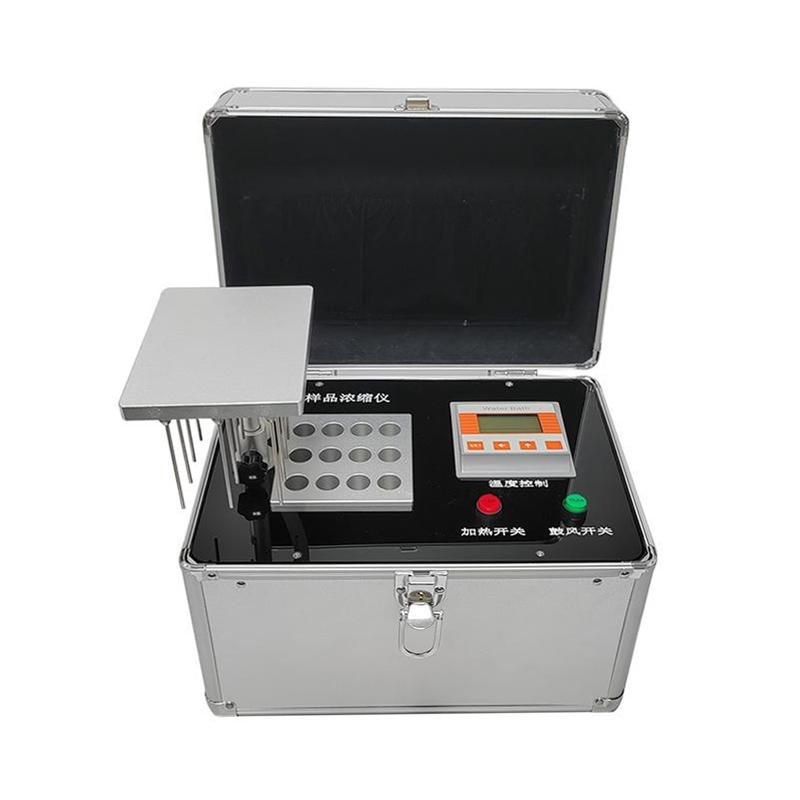

QIWEI QW-NSY-12ST (timing) sample condensing instrument, air drying instrument 12 holes PID temperature control

QW-NSY-12ST (timing)

Sample condenser (air dryer)

Timing, 12-hole independent blowpipe design to avoid cross-contamination, PID temperature control accuracy +/- 0.3 ℃, with its own air source to achieve 0-36L/min Flow rate adjustment, compact body suitable for a variety of environments.

Product Introduction

apply

Sample preparation in sample processing, fluid extraction analysis. Sample concentration is performed by blowing air into the surface of the heated sample.

peculiarity

• This method has the characteristics of time-saving, easy operation and easy control, and can quickly obtain the expected results.

• The sample concentrator adopts a dry constant temperature bath as the heating source, which has good heat transfer and uniform heat transfer, which is conducive to rapid heating and rapid temperature control. Air is blown onto the surface of the sample for rapid concentration of liquid samples. The blowpipes are independent of each other and do not cause cross-contamination.

• The product comes with an air source, compact and easy to carry, equipped with PID LCD display control instrument, high definition display, light indicator button, with temperature control function (optional temperature and timing function control instrument is the timing model), suitable for rapid concentration of samples in any environment.

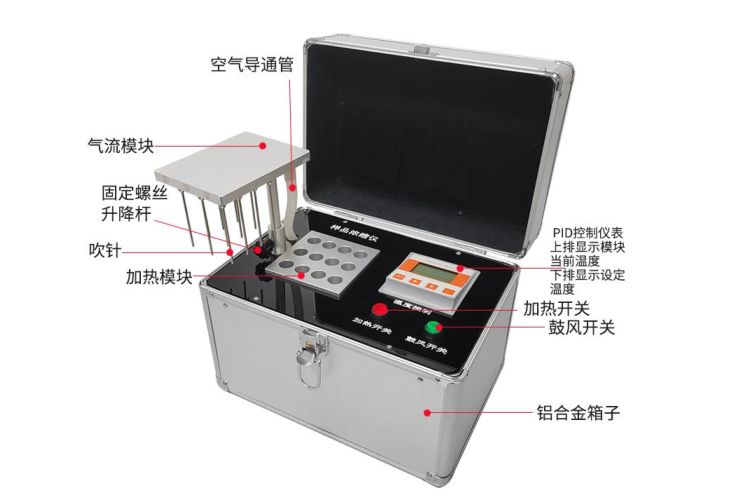

Schematic diagram of the product structure

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
