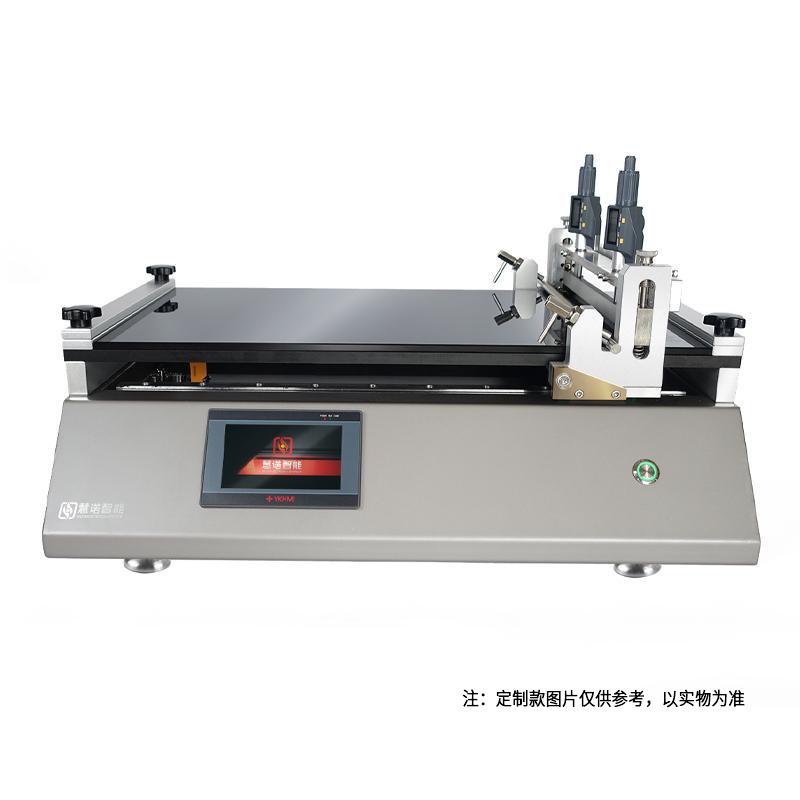

HuiNuo TM2000Pro/04 Dual Blade Automatic Film Applicator Effective area 50 * 50cm
TM2000pro/04
HuiNuo TM2000pro/04 Automatic Film ApplicatorSPEC
HuiNuo TM2000pro/04 Automatic Film ApplicatorDetails
HuiNuo TM2000pro/04 Automatic Film ApplicatorPacking list
- SKU
- NB050392
- Coating Method
- Drawdown blade Spreader
- Spreader head
- Front and rear Dual Blade combination
- Coating Speed
- 1~ 300Mm/s stepless speed regulation (can be customized)
- Substrate clamping method
- fixture
- Coating table material
- aluminum alloy
- Coating table size
- 740*530mm
- Applicable substrate Film thickness
- ≤ 40mm (customized heightening bracket)
- Effective coating Area
- 500 * 500Mm (can be customized)
- Drawdown blade Spreader Film thickness range
- 0~10Mm (clamshell design is easy to clean)
- Drawdown blade material
- Die steel
- Drawdown blade Spreader width
- 500mm
- Drawdown blade Spreader Accuracy
- ±0.003mm
- power
- 400w
- Display
- Color LCD touch screen
- operating language
- Chinese (can be customized in English)
- Host Power Supply
- 100V~220V/50~60HZ
- Dimensions
- Subject to the actual product
- optional feature
- Heating, Vacuum chuck
Product Overview:
Automatic film coating machine is a device used to coat film in the laboratory, replacing manual film coating, automating the film coating, and improving the accuracy and efficiency of film coating. The working principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate by controlling the coating head and coating parameters, forming the desired film.
This coating machine is a scraper type automatic coating machine, using adjustable scraper coating, the new clamshell scraper head design greatly improves the cleaning efficiency, easy to clean, with the function of speed control and coating length adjustment, suitable for high-precision automatic coating in the laboratory, in university research institutes, new materials, lithium batteries, glue, resin and other laboratories for film proofing.
Product Use:
The film coating machine is suitable for coating and sample coating of coatings, inks, paints, pastes, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, pharmaceuticals, etc., and can be scraped on glass, cardboard, and fabrics.
Features
1) The glass countertop is a 3C certified national standard genuine fully tempered glass plate, gold crystal original sheet, heat resistant to 600°C, scratch resistant
2) Big brand differential adjuster, high film thickness control accuracy
3) Clamshell scraper coating head, easy to clean
4) Touch screen control panel, easy to operate
5) The coating length and coating speed can be adjusted freely
