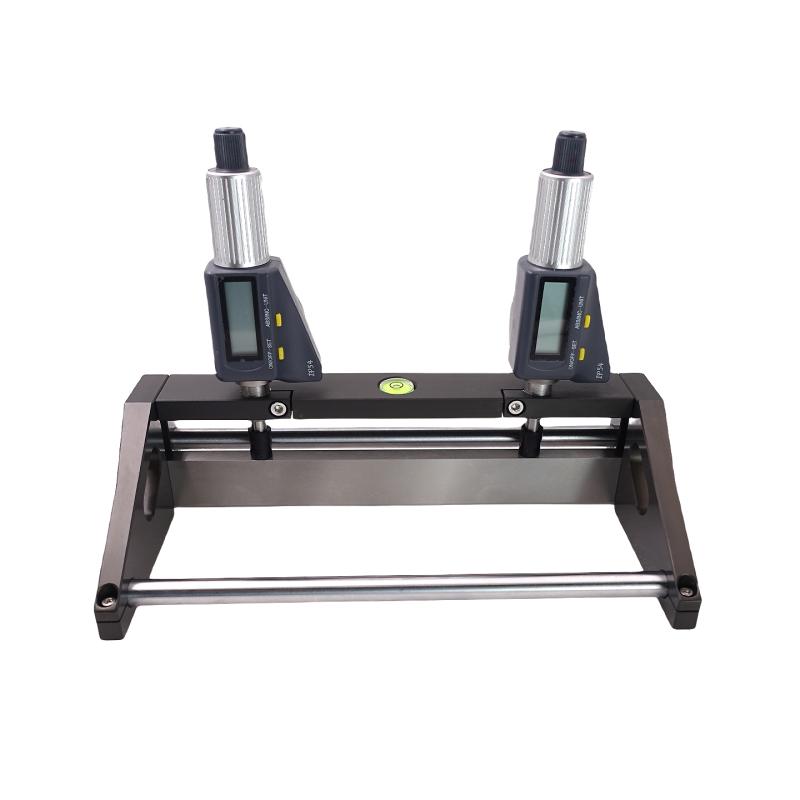

HuiNuo KTQ-700S Adjustable Preparation, Digital Wet-film Spreader, Magnetic drawdown blade

KTQ-700S

Adjustable generator (digital display)

The magnetic suction removable drawdown blade structure is easy to clean, the film thickness adjustment range is 0-5000μm, the accuracy is +/- 5μm, and the high hardness die steel drawdown blade and hard aluminum oxide frame are used, which is wear-resistant and corrosion-resistant.

Product Introduction

Huinuo KTQ series adjustable wet film preparer is a new generation of scraper detachable Film Applicator developed by Huinuo, which meets the principle of differential gap scraping and adopts magnetic scraper design to solve the difficult cleaning problem caused by scraping of materials such as high viscosity and easy curing. This series of equipment offers a variety of coating widths from 50mm to 600mm to meet the needs of different application scenarios.

Product characteristics:

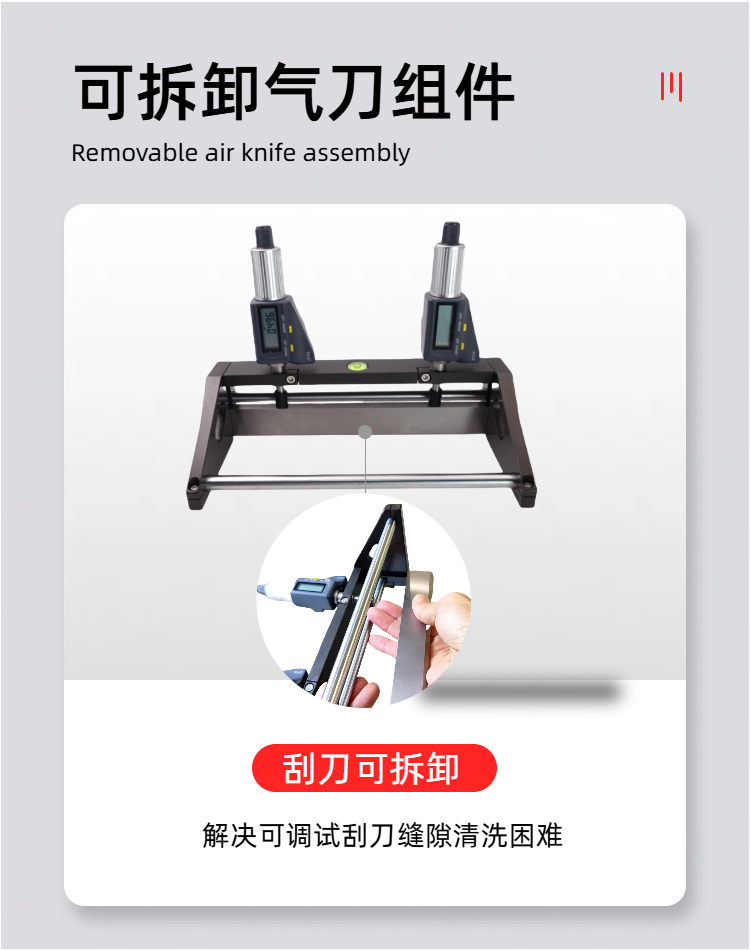

1. Magnetic detachable scraper structure, more convenient to clean

2. Precise thickness adjustment with blue differential head (scale and digital display optional)

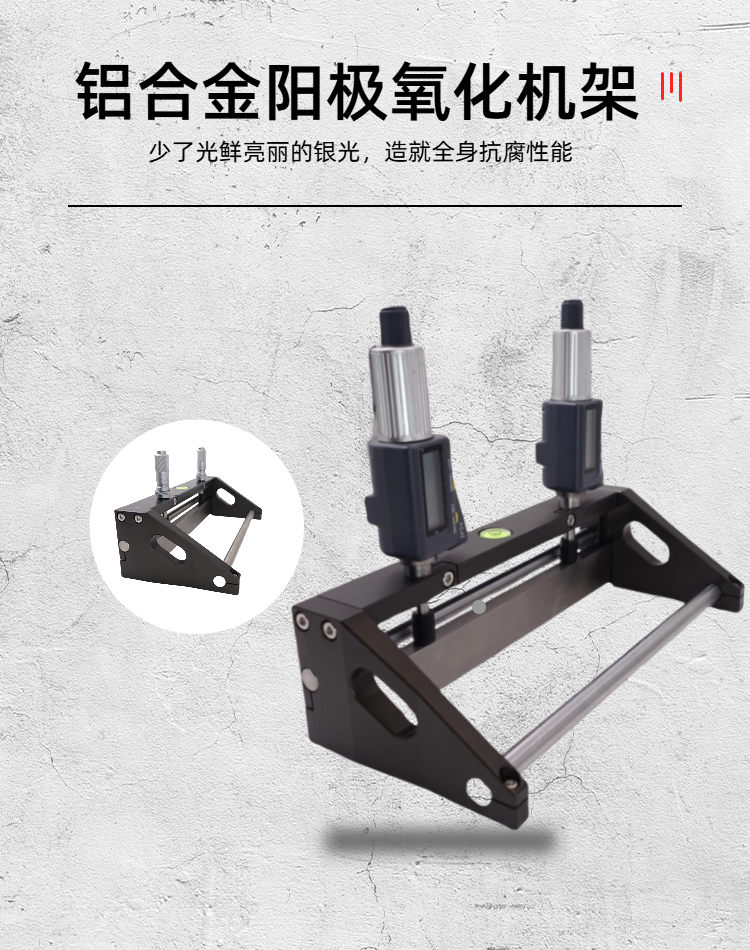

3. The scraper is made of high-hardness mold steel, hard alumina frame, lightweight, wear-resistant and corrosion-resistant

4. The film thickness range is adjustable from 0~5000μm

5. Scraper accuracy± 2μm to 5μm (depending on the specific model, not false standard)

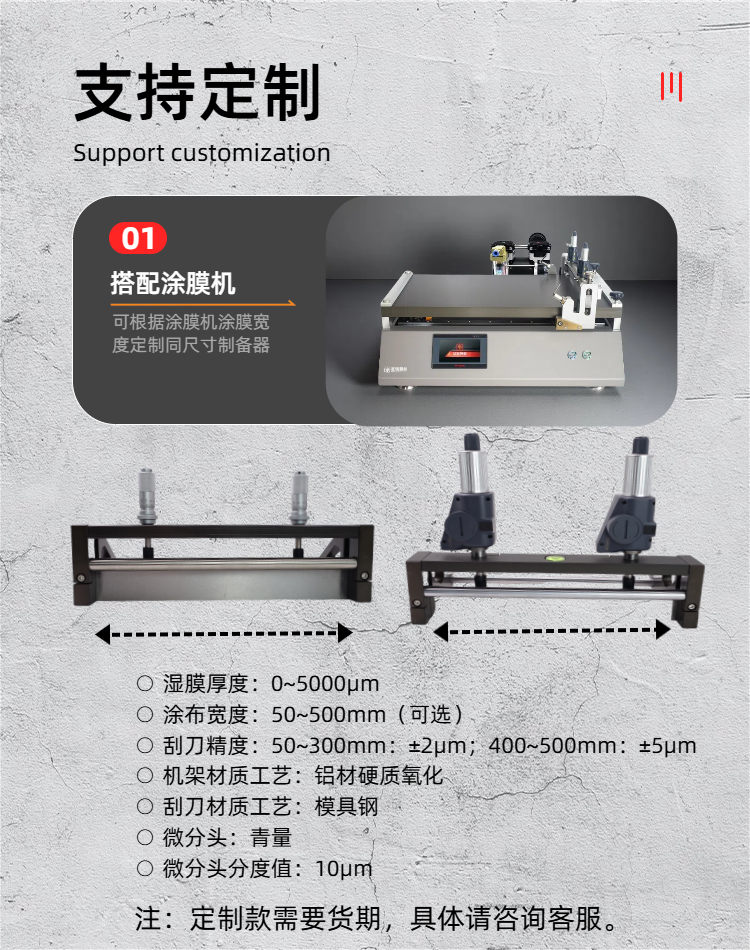

6. Provide 50-600mm multiple coating film widths to choose from, and support customization

Applications:

Coatings, ink R&D and quality inspection, lithium battery electrode preparation, optical film coating, adhesive testing, nanomaterials research

Packing list：Adjustable Applicator × 1, Certificate X1, Manual X1, Warranty Card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
