HuiNuo TM3000UV/02 Automatic Film Applicator bar drawdown blade coater effective coating area 40x30cm
TM3000UV/02
HuiNuo TM3000UV/02 Automatic Film ApplicatorSPEC
HuiNuo TM3000UV/02 Automatic Film ApplicatorDetails
HuiNuo TM3000UV/02 Automatic Film ApplicatorPacking list
- SKU
- NB050449
- Coating Method
- Bar + drawdown blade
- Coating Speed
- 1~ 300Mm/s stepless speed regulation (can be customized)

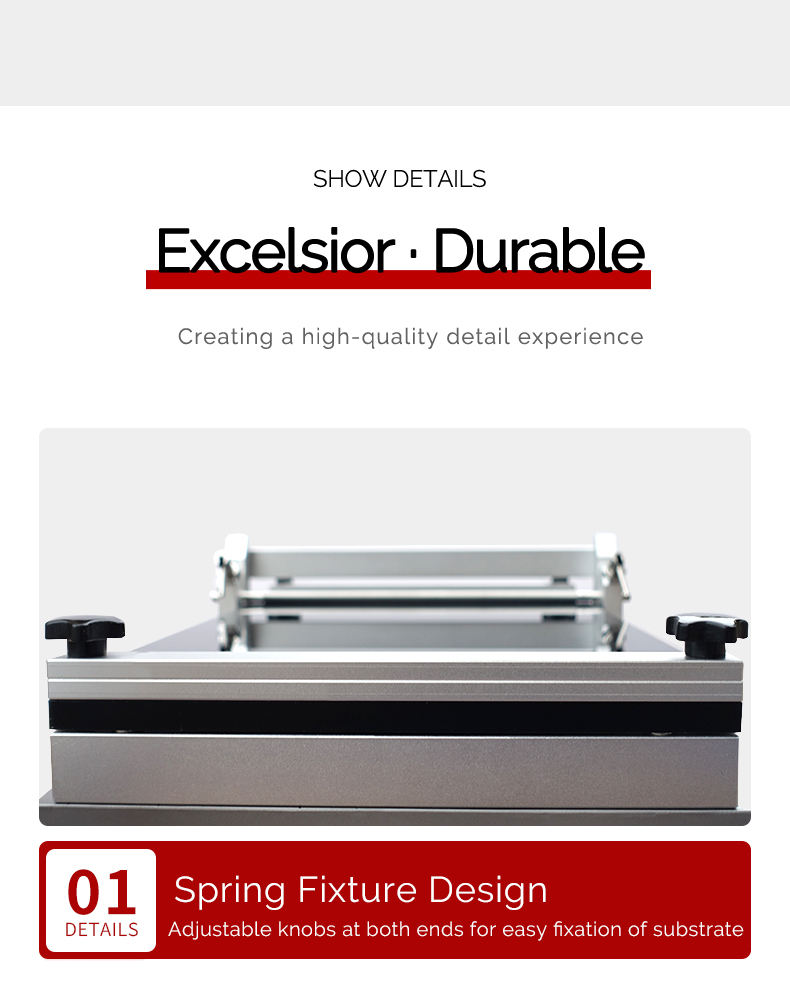

- Substrate clamping method
- fixture
- Coating table material
- Glass plate
- Coating table size
- 540*430mm
- Effective coating Area
- 400X300mm (can be customized)
- Meyer rod coating thickness Range
- Different bar numbers Film thickness is different, with high Accuracy imported bar
- Meyer rod coating Accuracy
- ±0.001mm
- Drawdown blade Spreader Film thickness range
- 0.1~ 10Mm (clamshell design is easy to clean)
- Drawdown blade material
- Die steel
- Drawdown blade Spreader width
- 300mm
Product Overview:
Automatic film coating machine is a device used to coat film in the laboratory, replacing manual film coating, automating the film coating, and improving the accuracy and efficiency of film coating. The working principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate by controlling the coating head and coating parameters, forming the desired film.

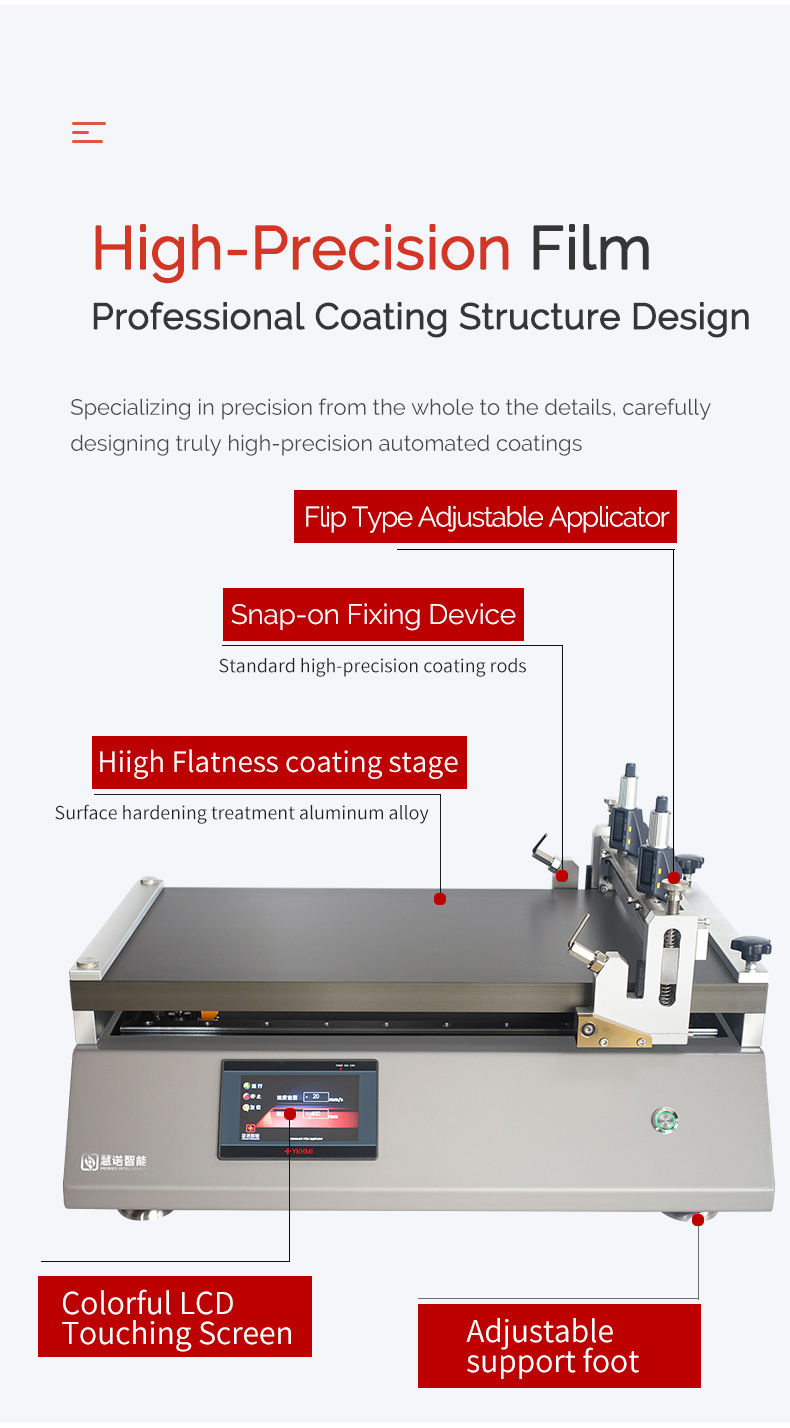

This coating machine is a wire rod scraper coating machine, with two functions of wire rod coating and scraper coating, the new wire rod installation method and clamshell scraper head greatly improve the coating efficiency, easy to clean, with speed control and coating length adjustment function, suitable for high-precision automatic coating of film in the laboratory, in university research institutes, new materials, lithium batteries, glue, resin and other laboratories for film proofing.
Product Use:
The film coating machine is suitable for coating and sample coating of coatings, inks, paints, pastes, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, pharmaceuticals, etc., and can be scraped on glass, cardboard, and fabrics.
Features

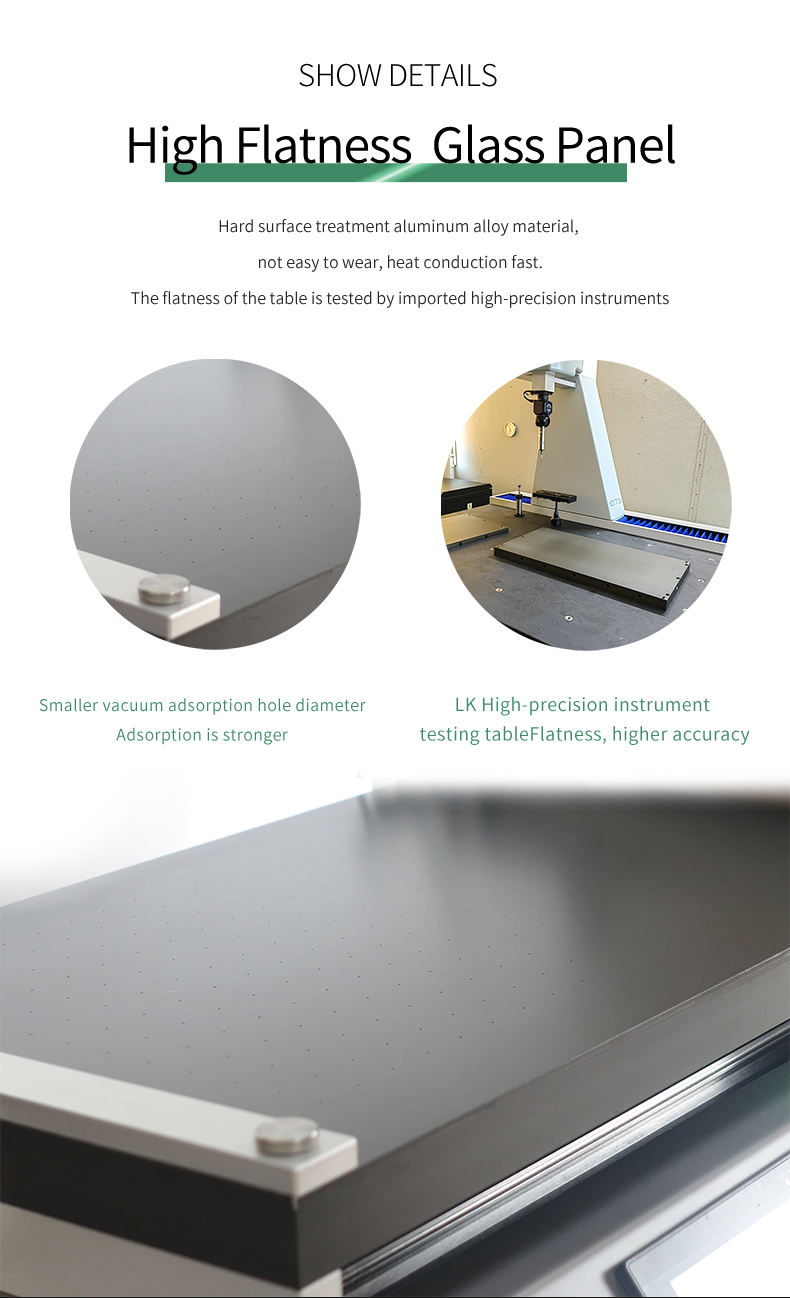

1) The glass countertop is a 3C certified national standard genuine fully tempered glass plate, gold crystal original sheet, heat resistant to 600°C, scratch resistant
2) Big brand differential adjuster, high film thickness control accuracy

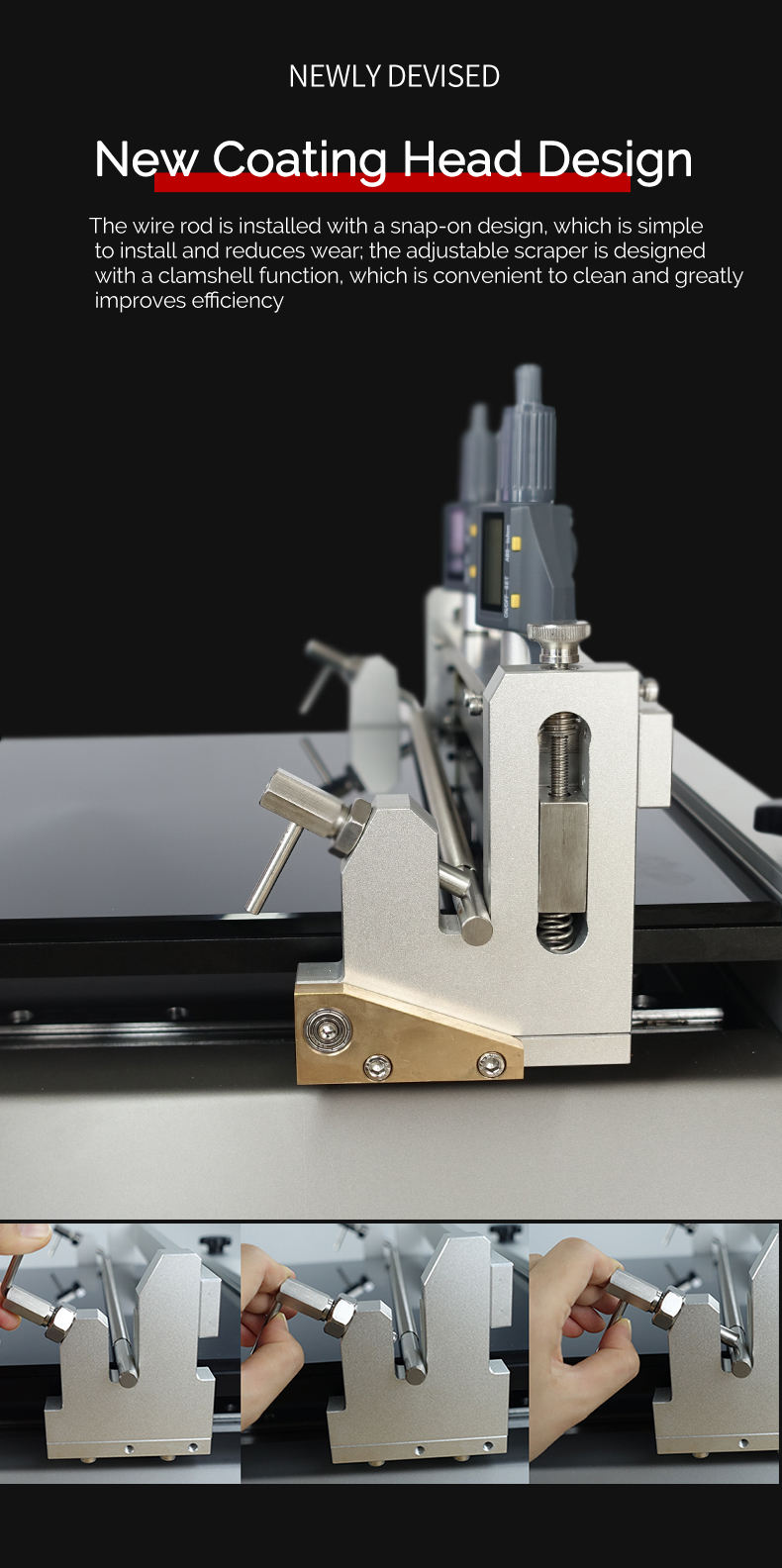

3) Clamshell scraper coating head, easy to clean
4) Equipped with high-precision Film Applicator, the original imported wire rod coating film is uniform and high accuracy

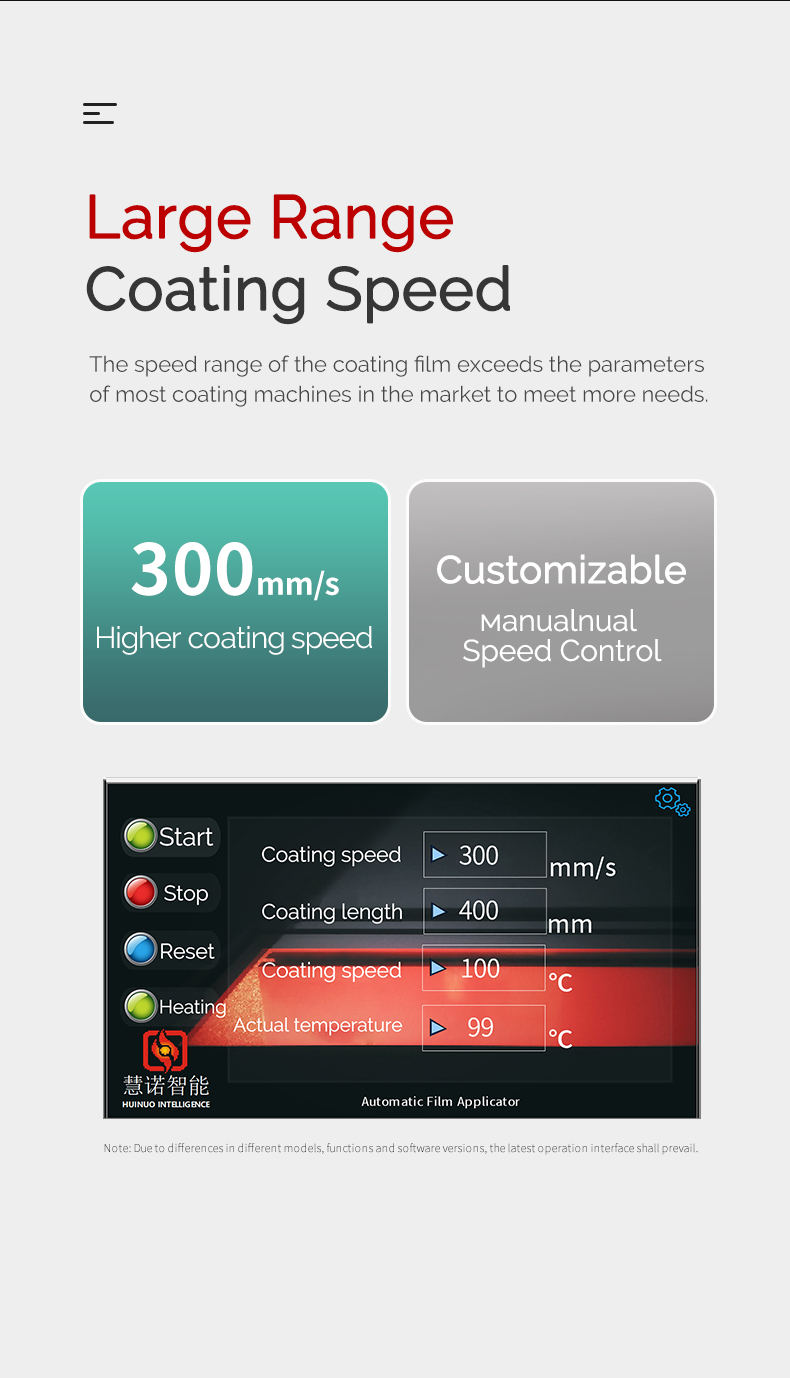

5) Touch screen control panel, easy to operate
6) The coating length and coating speed can be adjusted freely
