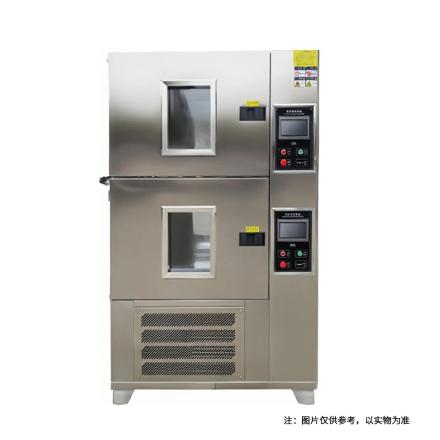

Factory NBC-80L-10/6 Constant Temperature and Humidity Chamber (6-zone independent temperature control) Specifications
Search
Brand：Factory
Model：NBC-80L-10/6
Name：Constant Temperature and Humidity Chamber (6-zone independent temperature control)
Specifications
| Inner box size | 80L 6 inner boxes independently control the temperature and humidity, three layers on the left and three layers on the right |
| temperature range | -10~60℃ |
| Temperature fluctuation | ±0.5-1℃ |
| Temperature Uniformity | ±1.5-2℃ |
| humidity range | 20-98%RH |
| Humidity Deviation | ±1~2% |
| Humidity Uniformity | ±1-3.0%R.H |
| Heating rate | 3 ℃/min nonlinear no-load |
| Cooling rate | 1 ℃/min (no-load nonlinear) |
| Single inner box size | 400 * 400 * 550 (mm), a total of six inner boxes are independently controlled |
| Dimensions | According to the actual situation |
| Weight | ≈163KG |
| Power Supply | 220V/50HZ |
| Permissible Voltage Variation | ±10% |
| Maximum power | 6kw |
| Inner chamber material | Mirror stainless steel plate (SUS #304) |
| Enclosure Material | Mirror stainless steel plate (SUS #304) |
| Ambient Operating Temperature | 0~30℃ |
| Specification Environment | 5~25℃ |
| Operating Environment Requirements | Miscellaneous items should not be placed within 60CM, and the installation ground should not be severely tilted |
Packing list
host X1, manual X1, certificate X1, warranty card X1
After-sales instructions
Warranty days: 365 days
