HuiNuo TM3100Pro/06 Automatic Film Applicator Servo Motor drawdown Bar & Blade Spreader ECA 50 * 40cm
TM3100pro/06
HuiNuo TM3100pro/06 Automatic Film ApplicatorSPEC
HuiNuo TM3100pro/06 Automatic Film ApplicatorDetails
HuiNuo TM3100pro/06 Automatic Film ApplicatorPacking list
- SKU
- NB050454
- Coating Method
- Bar + drawdown blade
- Coating Speed
- 1~ 300Mm/s stepless speed regulation (can be customized)
- Substrate clamping method
- fixture
- Coating table material
- Surface hard treatment aluminum alloy
- Coating table size
- 740*430mm
- Effective coating Area
- 500 * 400Mm (can be customized)
- Meyer rod coating thickness Range
- Different bar numbers Film thickness is different, with high Accuracy imported bar
- Meyer rod coating Accuracy
- ±0.001mm
- Drawdown blade Spreader Film thickness range
- 0.1~ 10Mm (clamshell design is easy to clean)
- Drawdown blade material
- Die steel
- Drawdown blade Spreader width
- 400mm
- Drawdown blade Spreader Accuracy
- ±0.003mm
- Heating method
- Mica sheet heating (optional graphene heating, faster thermal conductivity)
- Heating temperature range
- RT +~ 180 ℃ (can be customized)
- Temperature Uniformity
- ±1℃
- Drive motor
- Servo motor
- power
- 2000w
- operating language
- Chinese (can be customized in English)
- Display
- Color LCD touch screen
- Host Power Supply
- 220V/50HZ (can be customized 110V/60HZ)
- Dimensions
- 760*540*430mm
product description

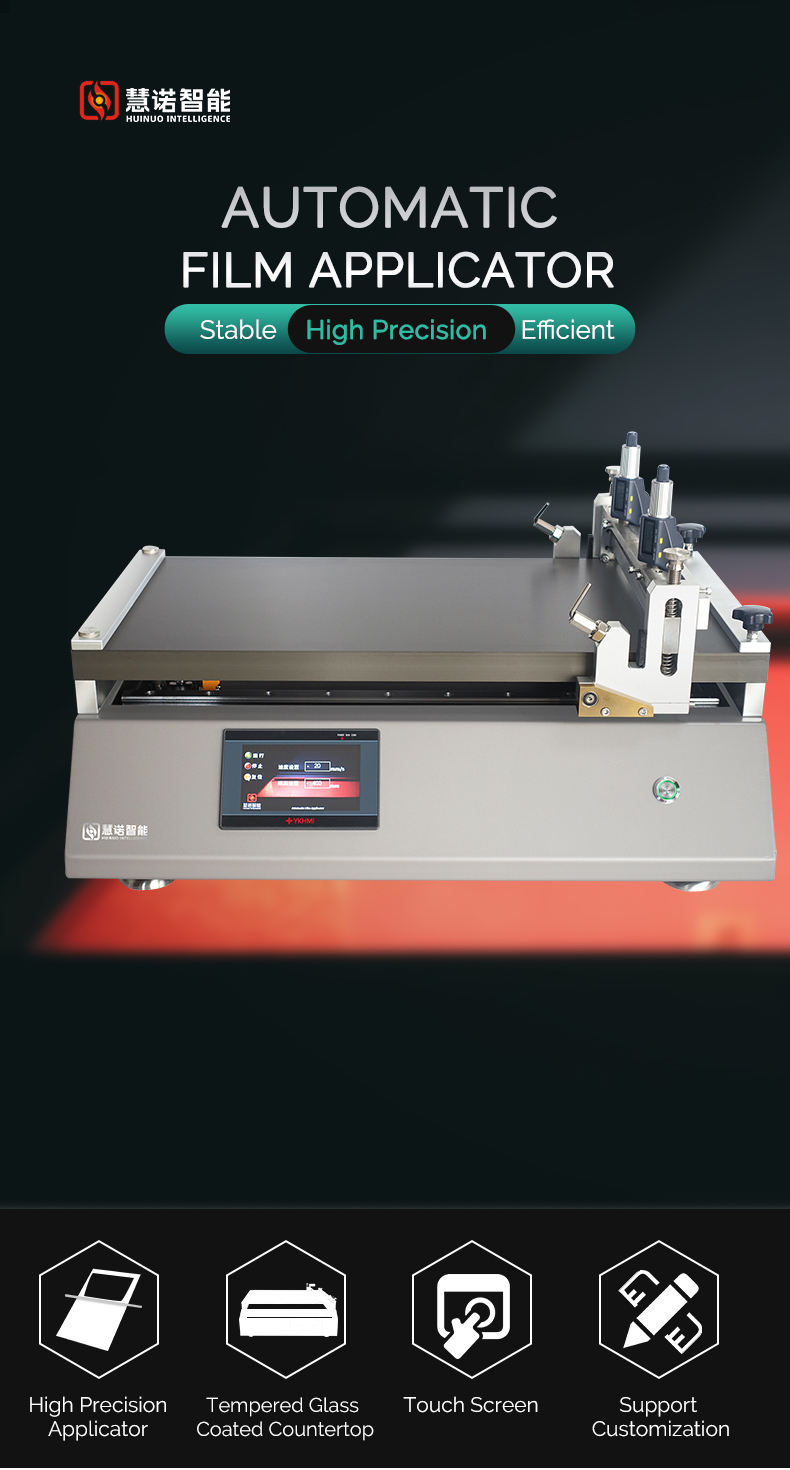

The automatic film coating machine is a device used for coating films in the laboratory. It replaces manual coating and automatically applies film to improve the accuracy and efficiency of coating. The Principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate to form the required film by controlling the coating head and coating parameters.
This coating machine is a wire bar blade coating machine with two functions: wire bar coating and blade coating. The innovative wire bar installation method and flip-type scraper head greatly improve the coating efficiency, facilitate cleaning, and have speed control. And the coating length adjustment function is suitable for high-precision automatic coating in laboratories, and film production and proofing in university research institutes, new materials, lithium batteries, glue, resin and other laboratories.
Applications
The film coating machine is suitable for coating film sample preparation of coatings, inks, paints, slurries, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, pharmaceuticals, etc. It can be applied on glass, cardboard, and cloth.
Features

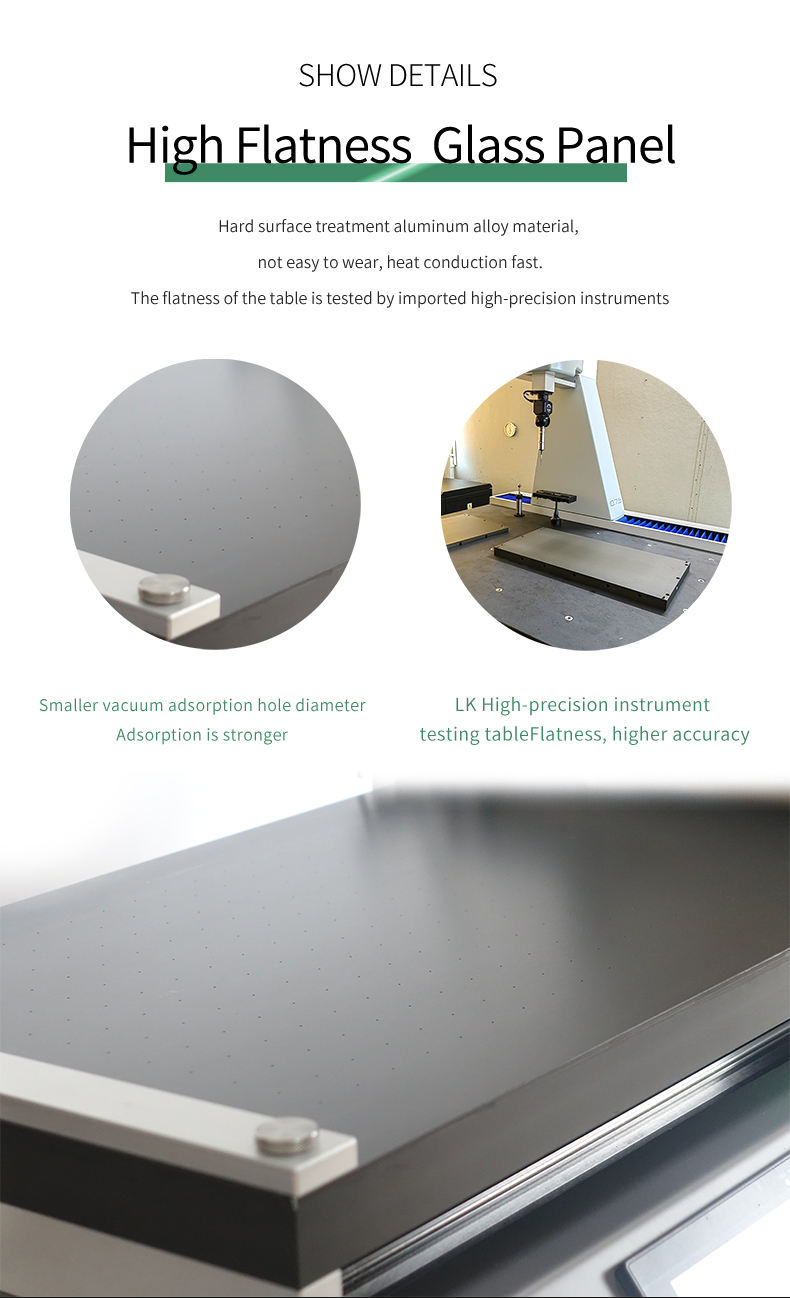

1) The glass tabletop is a 3C certified national standard authentic fully tempered glass plate, original gold crystal, heat-resistant to 600℃, scratch-resistant and scratch-resistant
2) Big brand differential regulator, high film thickness control accuracy

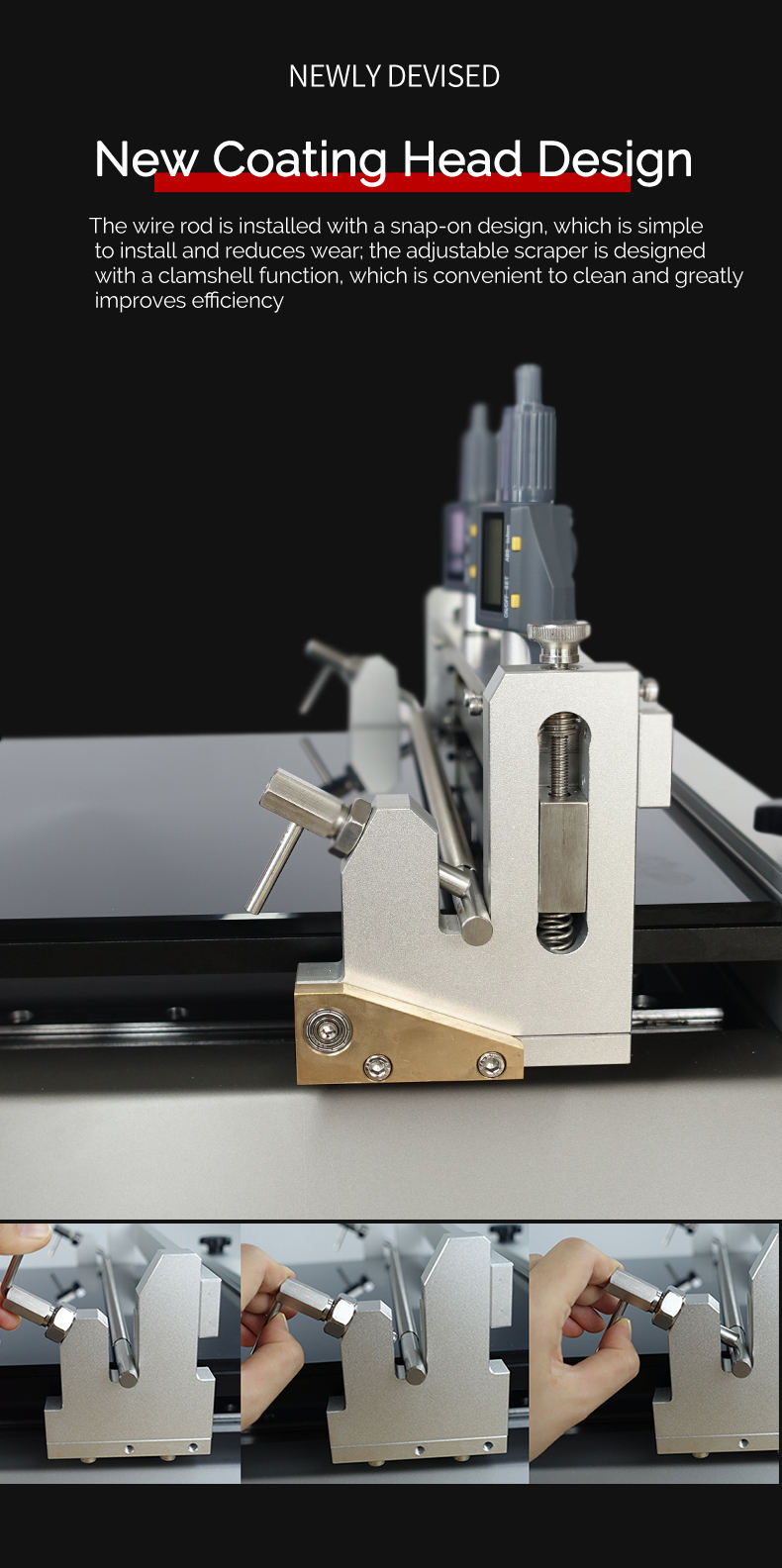

3) Flip-type doctor blade coating head, easy to clean
4) Equipped with a high-precision Film Applicator, the original imported wire rod can apply the film uniformly and with high precision
5) Touch screen control panel, easy to operate
6) Coating length and coating speed can be adjusted freely
