Brand：HuiNuo
Model：TM3200proAF/01

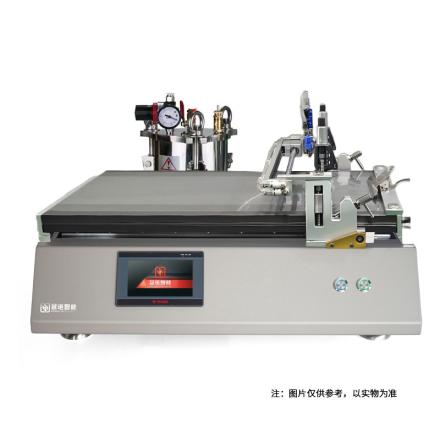

Name：Automatic Film Applicator (with automatic feeding)
Specifications
| Coating Method | Bar + drawdown blade |
| Coating Speed | 1~ 300Mm/s stepless speed regulation (can be customized) |
| Substrate clamping method | Vacuum chuck + fixture |
| Coating table material | Surface hard treatment aluminum alloy |
| Coating table size | 740*430mm |
| Effective coating Area | 500 * 400Mm (can be customized) |
| Meyer rod coating thickness Range | Different bar numbers Film thickness is different, with high Accuracy imported bar |
| Meyer rod coating Accuracy | ±0.003mm |
| Drawdown blade Spreader Film thickness range | 0.1~ 10Mm (clamshell design is easy to clean) |
| Drawdown blade material | Die steel |
| Drawdown blade Spreader width | 300mm |
| Drawdown blade Spreader Accuracy | ±0.003mm |
| Vacuum chuck size | 580 * 360Mm (can be customized) |
| Vacuum Aperture | Φ0.8mm |
| Vacuum hole pitch | 20*20mm |
| Vacuumpump pumping rate | 5.4m3/h |
| Ultimate Vacuum | 50KPa |
| Vacuumpump power | 180W |
| Vacuumpump Weight | 7.1kg |
| Drive motor | Servo motor |
| customization function | Automatic feeding system |
| Feeding principle | Pneumatic pressure feeding |
| Feed Sport Mode | Reciprocating linear motion |
| Feeding back and forth traverse speed | 2-150mm/s |
| spit Volume | Adjustable (by adjusting the air pressure and the running speed of the discharge port) |
| Feeding system air source | Customer-provided compressed air, 0.6Mpa |
| power | 600w |
| operating language | Chinese (can be customized in English) |
| Display | Color LCD touch screen |
| Host Power Supply | 220V/50HZ (can be customized 110V/60HZ) |
| Dimensions | 760 * 540 * 430Mm (subject to actual customization.) |
Packing list
Automatic Film Applicator x1, bar x1, drawdown blade x1, automatic feeding system x1, Vacuumpump x1, manual x1, certificate x1
After-sales instructions
Warranty days: 730 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/50461/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
