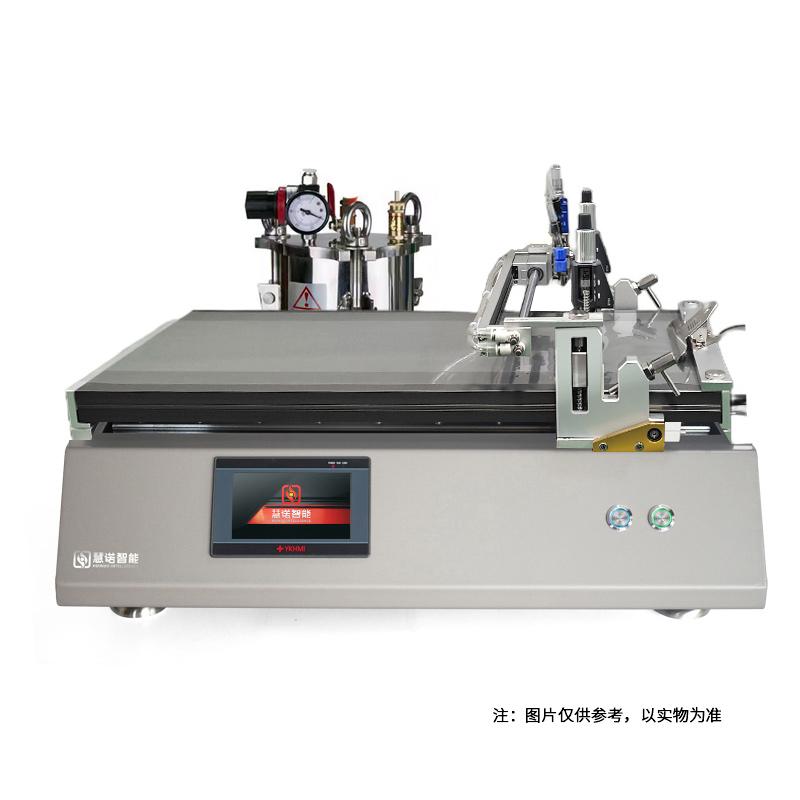

HuiNuo TM3300proAF/02 Automatic Film Applicator bar drawdown blade coater Effective area 65 * 65cm
TM3300proAF/02
HuiNuo TM3300proAF/02 Automatic Film ApplicatorSPEC
HuiNuo TM3300proAF/02 Automatic Film ApplicatorDetails
HuiNuo TM3300proAF/02 Automatic Film ApplicatorPacking list
- SKU
- NB050463
- Coating Method
- Bar + drawdown blade
- Coating Speed
- 1~ 300Mm/s stepless speed regulation (can be customized)
- Substrate clamping method
- Vacuum chuck + fixture
- Coating table material
- Surface hard treatment aluminum alloy
- Coating table size
- 890*680mm
- Effective coating Area
- 650 * 650Mm (can be customized)
- Meyer rod coating thickness Range
- Different bar numbers Film thickness is different, with high Accuracy imported bar
- Meyer rod coating Accuracy
- ±0.001mm
- Drawdown blade Spreader Film thickness range
- 0.1~ 10Mm (clamshell design is easy to clean)
- Drawdown blade material
- Die steel
- Drawdown blade Spreader width
- 650mm
- Drawdown blade Spreader Accuracy
- ±0.003mm
- Vacuum chuck size
- 730 * 610Mm (can be customized)
- Vacuum Aperture
- Φ0.8mm
- Vacuum hole pitch
- 20*20mm
- Vacuumpump pumping rate
- 5.4m3/h
- Ultimate Vacuum
- 50KPa
- Vacuumpump power
- 180W
- Vacuumpump Weight
- 7.1kg
- Heating method
- Mica sheet heating (optional graphene heating, faster thermal conductivity)
- Heating temperature range
- RT +~ 180 ℃ (can be customized)
- Temperature Uniformity
- ±1℃
- Drive motor
- Servo motor
- Dimensions
- 910 * 790 * 430Mm (subject to actual customization)
- customization function
- Automatic feeding system
- Feeding principle
- Pneumatic pressure feeding
- Feed Sport Mode
- Reciprocating linear motion
- Feeding back and forth traverse speed
- 2-150mm/s
- spit Volume
- Adjustable (by adjusting the air pressure and the running speed of the discharge port)
- Feeding system air source
- Customer-provided compressed air, 0.6Mpa
- power
- 1800w
- Weight
- 40kg
- operating language
- Chinese (can be customized in English)
- Host Power Supply
- 100V~220V/50~60HZ
- Display
- Color LCD touch screen
Product Overview:
Automatic film coating machine is a device used to coat film in the laboratory, replacing manual film coating, automating the film coating, and improving the accuracy and efficiency of film coating. The working principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate by controlling the coating head and coating parameters, forming the desired film.
This coating machine is a wire rod scraper coating machine, with two functions of wire rod coating and scraper coating, the new wire rod installation method and clamshell scraper head greatly improve the coating efficiency, easy to clean, with speed control and coating length adjustment function, suitable for high-precision automatic coating of film in the laboratory, in university research institutes, new materials, lithium batteries, glue, resin and other laboratories for film proofing.
Product Use:
The film coating machine is suitable for coating and sample coating of coatings, inks, paints, pastes, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, pharmaceuticals, etc., and can be scraped on glass, cardboard, and fabrics.
Features
1) Surface hard treatment aluminum alloy countertop, high hardness and wear resistance, and the flatness of the countertop is tested by imported high-precision instruments.
2) Big brand differential adjuster, high film thickness control accuracy
3) Clamshell scraper coating head, easy to clean
4) Equipped with high-precision Film Applicator, the original imported wire rod coating film is uniform and high accuracy
5) Touch screen control panel, easy to operate
6) The coating length and coating speed can be adjusted freely
7) With heating and vacuum adsorption function.
8) Servo motor is adopted, which is more stable in operation and higher in coating accuracy.
