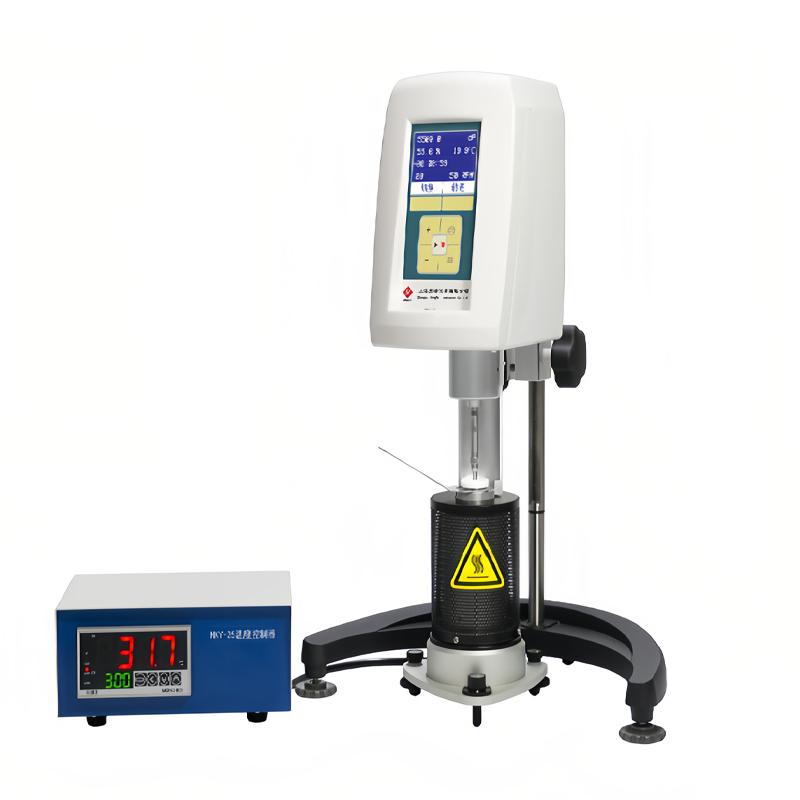

FANGRUI LV-SSR-H Viscometer Coaxial Cylinder Structure, Small Sample Adapter
LV-SSR-H
FangRui LV-SSR-H ViscometerSPEC
FangRui LV-SSR-H ViscometerDetails
FangRui LV-SSR-H ViscometerPacking list
- SKU
- NB050487
- Display mode
- digital display
- Viscosity range
- 3 to 1.6 million cP
- error
- +/-2% (newtonian fluid)
- rotor
- 18 #, 25 #, 31 #, 34 #, one each
- Rotation speed
- 0.3~ 100RPM/min A total of 37 Rotation speed steps are available
- Temperature range
- Room temperature + 10~250 degrees
- Test sample requirement
- 11 to 16mL (depending on the rotor)
Product Introduction
SSR series digital rotary viscometer adopts coaxial cylinder structure, using a small sample adapter, the sample volume required for each measurement is very small, only 7ml-13ml (No. 0 rotor is 21ml), optional constant water jacket with circulation, with constant temperature tank to control the temperature of the tested sample. It is very convenient to operate and the measurement value is accurate. Ideal for precious, low-volume sample measurements.
Application of the product
SSR digital viscometer is widely used in fluid viscosity detection and control of grease, paint, coating, slurry, textile, food, adhesive, cosmetics, etc., to meet the test viscosity of a small number of samples.
Product features:
1. Horizontal bubble front, just adjust the level while sitting, which is very convenient.
2. There is a timed measurement function。
3. Coaxial cylindrical structure。
4. The measurement accuracy of the data is two decimal places。
5. Easy and reliable operation。
6. With a small number of sample adapters, the amount of sample required for testing is very small。
7. The viscometer comes with two RS232 interfaces, which can be directly connected to the micro thermal printer and computer。
Options:
1. Enhanced Ultra-Low Viscosity Adapter ULR (No. 0 Rotor)
Designed for low-viscosity fluid measurement
Jacketed and unjacketed versions are available
The minimum detection limit is 1 cP, which depends on the viscometer used
Model Stainless steel material is easy to clean and clean
It can withstand an operating temperature range of -40°C-200°C
2. DC0506W type viscometer special cryogenic constant temperature tank
SSR parameter comparison
| Instrument model | rotate speed | rotor | Range | Sample volume |
| LV-SSR | 0.3~100 | 18#，25#，31#，34# | 1-200,000 | 7~11 |
| RV-SSR | 0.5~100 | 21#、27#、28#、29# | 6.4-2M | 7.8~11.5 |
| HA-SSR | 12.8~4M | |||
| HB-SSR | 51.2~16M | |||
| *Measuring range M=1000000; Unit:r/min、mPa·s、ml | ||||
| Other parameters | ||||
| Measurement error | ±2% (Newtonian liquid) | |||
| Repeat error | ±1% (Newtonian liquid) | |||
| Output interface | There are two RS232 ports for connecting printers and computers | |||
| Temperature probe interface | Standard | |||
| Dimensions | 300×300×450mm | |||
