Specifications

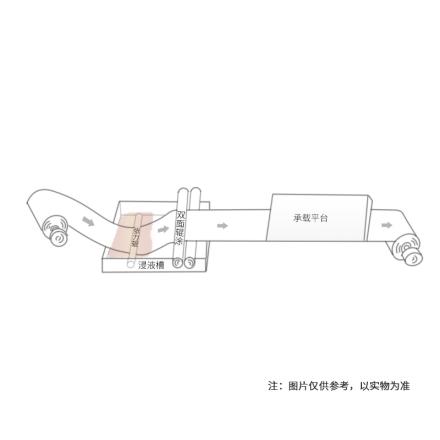

| Spreader process | Unwinding → dip coating → double roll extrusion → winding |
| main substrate | PET or other non-breakable materials |
| glue | Water-based paints, solar-based paints and Miscellaneous |
| Spreader thickness range | Adjustable according to the process (formed) |
| Coating Method | soak |
| Bath size | 1500Mm length * 1000mm width * 300mm depth (built-in circulation system, can be exchanged with external solvents to filtrate) |
| Bath material | Resistant corrosion stainless steel (note, the solution cannot react chemically with the material) |
| Dip tank guide roller | 2 sticks |
| Effective application width | Max.1000mm |
| substrate | Less than 1000mm |
| Roll surface width | 1000mm |
| Extrusion unit - extrusion method | Double roll extrusion |
| Extrusion Unit - Adjustable Range | 0.3-10mm |
| Extrusion Unit - Spreader Adjustment | Handwheel adjustment, dial indicator display |
| Mechanical speed | 1.2M/min (0.1~ 1m/min production speed, depending on the process) The speed can be adjusted slowly |
| unwinding diameter | ≤ φ 400mm (paper core 3 ") |
| winding diameter | ≤ φ 500mm (paper core 3 ") |
| Reel the edges neatly | ±3.0mm |
| Total Installed Power | About 5kW (subject to actual customization) |
| Machine size | (L x W x H) According to process changes and final design drawings |
| Teflon roller | 4 pieces (installed in front of the Spreader head) |
| Power supply Voltage | Three-phase five-wire 380V 50Hz |
| Unwinding Unit - Type | Single station |
| Effective unroll width | 1000mm |
| Effective unwinding diameter | ≤Φ400mm |
| Unwinding Unit - Unwinding Scroll | 3 " (φ 76mm) 1 piece of inflatable shaft (suspended wall structure) |
| Unwinding Unit - Unwinding Tension Control | Automatic tension control, magnetic particle brake, tension Controller |
| Front Traction Unit - Steel Roller | Φ42x1000mm |
| Front Traction Unit - Motor | SEND/0.75KW (servo control) |
| conclusion | 1 meter bearing platform |
| size | About L5000mm x W1300mm x H1500mm (Note: subject to actual customization) |
| Weight | About 1t (subject to actual customization) |
Packing list
machine x1, manual x1, certificate x1
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/50508/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
