Specifications

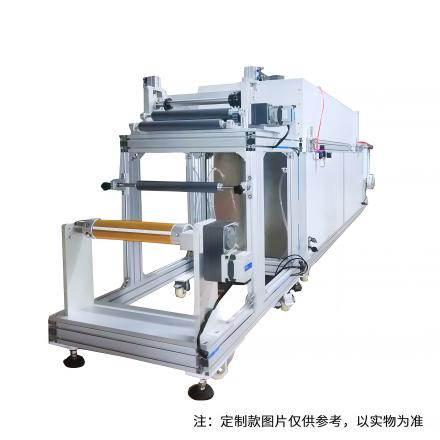

| Spreader process | Rolling → corona → scraping → drying → film laminating → winding |
| request | Unwinding - Corona - Adjustable Scratch Coating - Width 100-500mm (drying one grid 1m, three-stage oven with ventilated) - film laminating - winding |
| Effective application width | Max.Φ500mm |
| Coating Method | scraping |
| Cutting head type | Adjustable drawdown blade |
| Indication Display mode | digital display |
| WFT | 0.005-3mm |
| Regulator Graduation | 0.001mm |
| Spreader Accuracy | ±5% |
| Coating Speed | 1-10M/min (adjustable) |
| unwinding method | Inflatable shaft unwinding |
| winding method | Inflatable shaft winding |
| Outer diameter of winding air expansion shaft | 3-Inch expansion shaft, load-bearing 50KG |
| maximum discharge | Max.Φ500mm |
| Maximum charge | Max.Φ500mm |
| Drying Temperature range | RT+~200℃ |
| Temperature control Accuracy | ±3℃ |
| Heating mode | hot air circulation |
| Oven length | 1M/section * 3 |
| Total length of drying tunnel | About 4m, three-stage oven |
| Drying Power | 1KW/section |
| Tension control range | Automatic constant tension (1-10N) |
| Tension control Accuracy | ±0.5N |
| Motor type | Servo motor |
| Control mode | PLC + touch screen |
| Human Machine Interface | Color touch screen |
| tension control | automatic |
| Correction control | automatic |
| thickness control | manual |
| Fitting method | Roll fit |
| Fitting speed | 0.1~ 10M/min (adjustable) |
| fit width | Max.Φ500mm |
| gas source | 0.5~ 0.8MPa compressed air |
| Applicable coil type | Plastic film, metal foil, paper, non-woven fabric, etc |
| Spreader type | Water-based paints, solar-based paints, UV coatings, etc |
| Application | Encasement, electronics, construction, automotive, medical, etc |
| Environmental temperature | 10℃ ~ 40℃ |
| Environmental humidity | 30～90%RH |
| power requirements | 380V, 50Hz, three-phase five-wire system |
| Total power consumption | 45KW (subject to actual customization) |
| Dimension | About 7000mm (Total length of rack 3m + 4 meters oven) * 1200mm * 1600mm (subject to actual customization) |
| safety protection | emergency stop button |
Packing list
Whole machine x1, drawdown blade x1, corona machine x1, manual x1, certificate x1
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/50512/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
