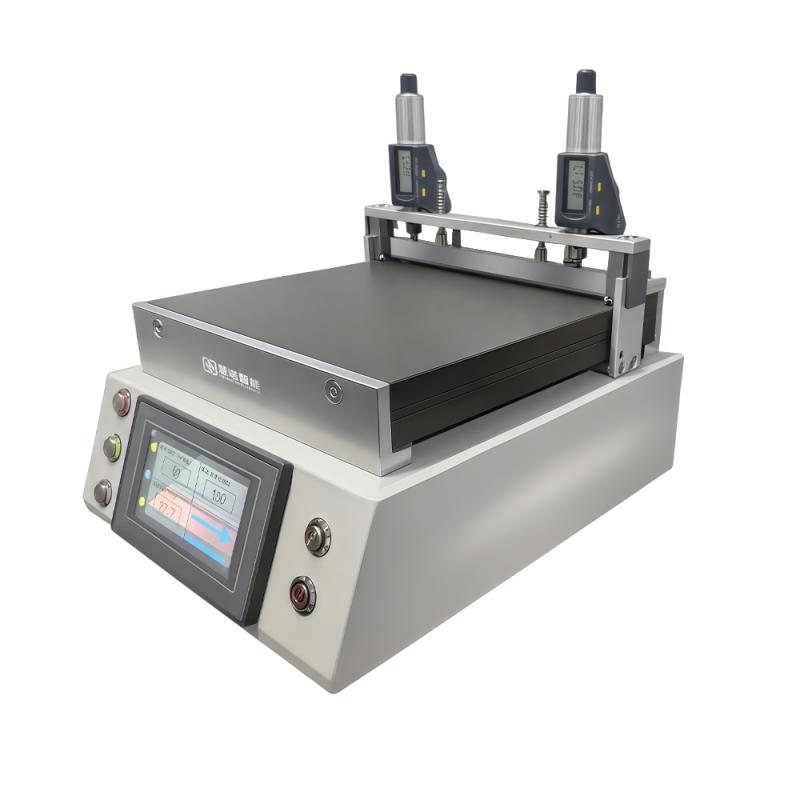

HuiNuo TM3300mini Multifunctional Micro Film Applicator Glove Box Special Mini Small coater
SE
TM3300mini
HuiNuo TM3300mini Automatic Film ApplicatorSPEC
HuiNuo TM3300mini Automatic Film ApplicatorDetails
HuiNuo TM3300mini Automatic Film ApplicatorPacking list
- SKU
- NB050517
- Coating Method
- Bar + drawdown blade
- Coating Speed
- 1~ 300Mm/s stepless speed regulation (can be customized)
- Substrate clamping method
- Vacuum chuck + fixture
- Coating table material
- Surface hard treatment aluminum alloy
- Coating table size
- Subject to the actual product
- Effective coating Area
- 210 * 180Mm (can be customized)
- Meyer rod coating thickness Range
- Different bar numbers have different thicknesses, with high-precision imported bars
- Meyer rod coating Accuracy
- ±0.003mm
- Drawdown blade Coating thickness range
- 0.1~ 10Mm (clamshell design is easy to clean)
- Drawdown blade material
- Die steel
- Drawdown blade application width
- 180mm
- Drawdown blade Spreader Accuracy
- ±0.003mm
- Vacuum chuck size
- 210 * 180Mm (can be customized)
- Vacuum Aperture
- Φ0.8mm
- Vacuum hole pitch
- 20*20mm
- Heating mode
- Mica sheet heating (optional graphene heating, faster thermal conductivity)
- Heating Temperature range
- RT +~ 180 ℃ (can be customized)
- Temperature Uniformity
- ±1℃
- Pumping Speed
- 27L/min
- Ultimate Vacuum
- -95KPA
- Motor type
- Closed loop motor
- Vacuum Pump Power
- 180W
- Vacuum pump Weight
- 7.1kg
- Operating language
- Chinese (can be customized in English)
- Display
- Color LCD touch screen
- Host Power Supply
- 100V~220V/50~60HZ
- Power
- 1800w
- Dimension
- 390 L * 285 W * 200 H (excluding tool holder)
- Weight
- About 30kg, subject to the actual product.
Product Overview:
Automatic film coating machine is a device used to coat film in the laboratory, replacing manual film coating, automating the film coating, and improving the accuracy and efficiency of film coating. The working principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate by controlling the coating head and coating parameters, forming the desired film.
This coating machine is a small coating machine that can be used in the glove box, using the double coating method of wire rod and scraper, the separable tool holder design is easy to clean, the magnetic scraper realizes quick replacement, the closed-loop motor drive accurately controls the scraping distance and speed, and the planetary reducer + rack and pinion transmission is more reliable and durable.
Product Use:
The film coating machine is suitable for coating and sample coating of coatings, inks, paints, pastes, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, pharmaceuticals, etc., and can be scraped on glass, cardboard, and fabrics.
Product features:
1）The surface is hard-treated aluminum alloy countertop, with high hardness and wear resistance, and the flatness of the countertop is tested by imported high-precision instruments.
2) Big brand differential adjuster, high film thickness control accuracy
3) The detachable knife holder is easy to clean, and the magnetic scraper is easy to replace
4) Equipped with high-precision Film Applicator, the original imported wire rod coating film is uniform and high accuracy
5) Touch screen control panel, easy to operate
6) The coating length and coating speed can be adjusted freely
7) With vacuum adsorption and heating function
8) Closed-loop motor drive to accurately control the scraping distance and speed
9) Planetary reducer + rack and pinion transmission is more reliable and durable
