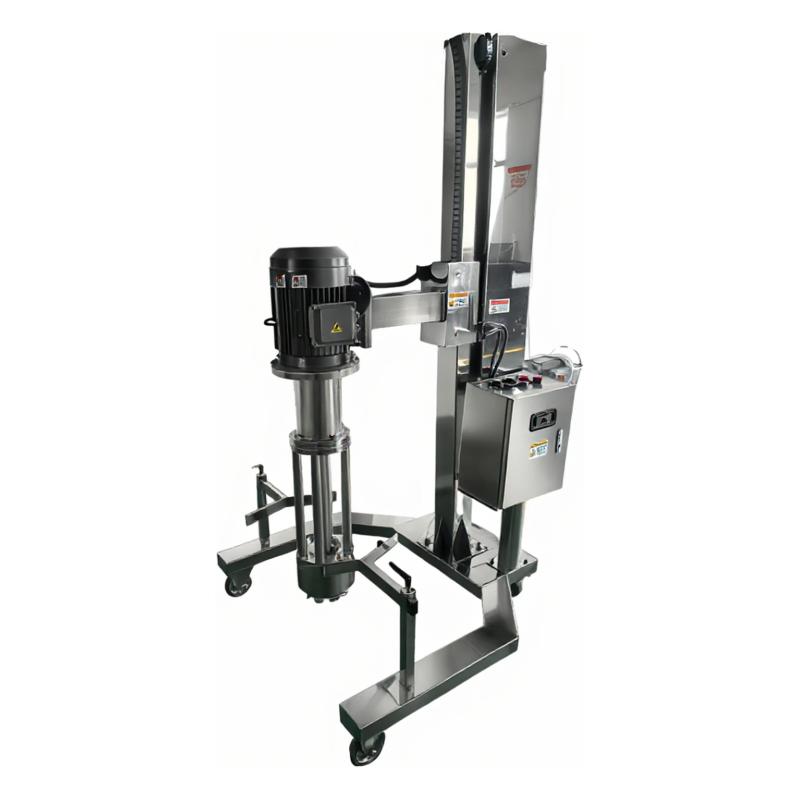

MUXUAN MXY-D-4 Electric Lifting Basket Grinder Wet Dispersion Grinding Equipment

MXY-D-4

Electric Lifting Basket Grinder

Rotation speed 0-1500rpm, grinding capacity 30-100L, using zirconia lever and separation plate to achieve efficient grinding and easy cleaning, small temperature rise and customizable chill down.

Electric dynamic lifting basket Grinder is an economical wet dispersion grinding equipment developed for scientific research institutions and enterprises and institutions. The equipment can operate for a long time, the speed is stable and the noise is low, and the two production processes of dispersion and grinding are completed at the same time, so as to effectively reduce the fineness of medium and low viscosity materials in a short time.

Scope of application

[Material viscosity]: ≤5000 cps (mPas)

[Applicable materials]: materials with high fineness requirements, such as interior wall emulsion paint, industrial paint, wood paint, various color pastes, water-based oil-based inks, pesticide suspensions, etc.

Working principle

The motor of the electric lifting basket Grinder drives the lever and the bottom dispersion disc to rotate at high speed, so that the upper part of the dispersion disc and the inside of the basket cavity form a vacuum, and the slurry is sucked into the basket grinding cavity. The grinding medium in the driving cavity is driven by the lever to generate force in all directions, and the particles in the material are constantly collided and frictioned by the medium, and the particle size becomes smaller and the particle size range narrows. The high-speed operation of the dispersion disc generates vortex to suck out the materials in the cavity and recirculate them to the feed, which has a very significant dispersion and mixing effect, and realizes the lifting of the lifting motor and working head through the electric actuator or solenoid valve jogging control.

Product advantage

High grinding efficiency and good product fineness

The powerful arc impeller kinetic energy drive, the zirconia lever makes the grinding medium in the cavity produce irregular movement, collide and friction with each other at high speed, and make the powder particle size quickly become smaller. The separator plate adopts CNC CNC machining of the whole material, which does not clog and has a long life and reduces maintenance costs.

Easy to operate and clean

The equipment comes with an energy-saving frequency converter, which can directly control the start and speed regulation of the equipment; The equipment uses the cylinder as the lifting actuator, with electric control of the grinding device to rise, stop and fall, and the operation is simple; With a manual bucket clamping device, the grinding barrel can be quickly fixed to prevent accidents caused by displacement of the barrel during work; The rack has casters, which takes up little space and is easy to move.

The temperature rise is small and the product is stable

The batching drum is equipped with a double-layer cooling jacket, which is cooled by water when the equipment is running, which has a good cooling effect and a small conventional temperature rise

The grinding chamber can be customized with cooling.

Non-standard is strong

Non-standard customized explosion-proof type; The grinding cavity can be customized with zirconia material; The equipment material can be customized SS316L stainless steel.

◆The material of the material contact part can be customized according to the characteristics of the material, such as 304/316/Hastelloy/titanium, molybdenum, nickel alloy and other materials.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
