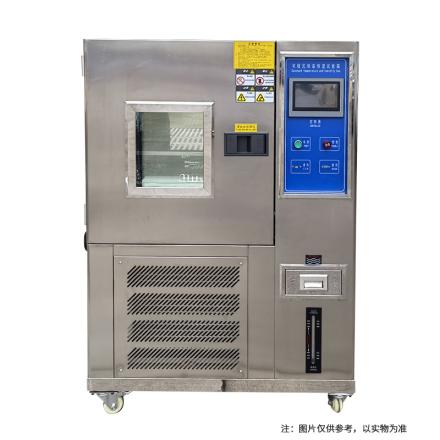

Factory NBC-100L-60/2 Split constant temperature and humidity testing machine Specifications
Search
Brand：Factory
Model：NBC-100L-60/2
Name：Split constant temperature and humidity testing machine
Specifications
| Studio Volume | 100L |
| Temperature range | -60℃~+150℃ |
| Temperature Fluctuation | ±0.5-1℃ |
| Temperature Uniformity | ±1.5-2℃ |
| Humidity Control Range | 20~98%R.H |
| Humidity Deviation | ±1~2% |
| Humidity Uniformity | ±1-3.0%R.H |
| Heating rate | 3 ℃/min nonlinear no-load |
| Cooling rate | 1 ℃/min nonlinear no-load |
| Interior size | 500*400*550mm |
| Dimension | Width 750 deep 950 high 1650 box part, freezer part, width 750 deep 1300 high 1500 |
| Weight | ≈170KG |
| Power supply Voltage | 220V/50HZ |
| Permissible Voltage Variation | ±10% |
| Maximum Power | 6kw |
| Chamber material | Mirror stainless steel plate (SUS #304) |
| Enclosure Material | Mirror stainless steel plate (SUS #304) |
| Environmental temperature | 0~30℃ |
| Specification Environment | 5~25℃ |
| Environmental requirements | Miscellaneous items cannot be placed within 60CM |
Packing list
host X1, manual X1, certificate X1, warranty card X1
After-sales instructions
Warranty days: 365 days
