CHNSPEC CRX-66 Online Color Sensors 45/0 Construction, Contactless Colorimeter

45/0 structure, measurement Repeatability dE * ab ≤ 0.02, inter-station difference dE * ab ≤ 0.25, support non-contact detection, waterproof and dustproof IP66, a variety of communication interfaces, LED Light source long life.
Model：
Certificate
Contact
Details SPEC

CHNSpec CRX-66 Noncontact ColorimeterSPEC

CHNSpec CRX-66 Noncontact ColorimeterDetails

CHNSpec CRX-66 Noncontact ColorimeterPacking list

SKU
NB050543
Measurement structure *
45/0
Measurement Repeatability **
dE*ab≤0.02
Room difference ***
dE*ab≤0.25
Display Accuracy
0.01
Measurement/Lighting Aperture
Φ8mm/Φ21mm
CRX-66
Noncontact Colorimeter
45/0 structure, measurement Repeatability dE * ab ≤ 0.02, inter-station difference dE * ab ≤ 0.25, support non-contact detection, waterproof and dustproof IP66, a variety of communication interfaces, LED Light source long life.

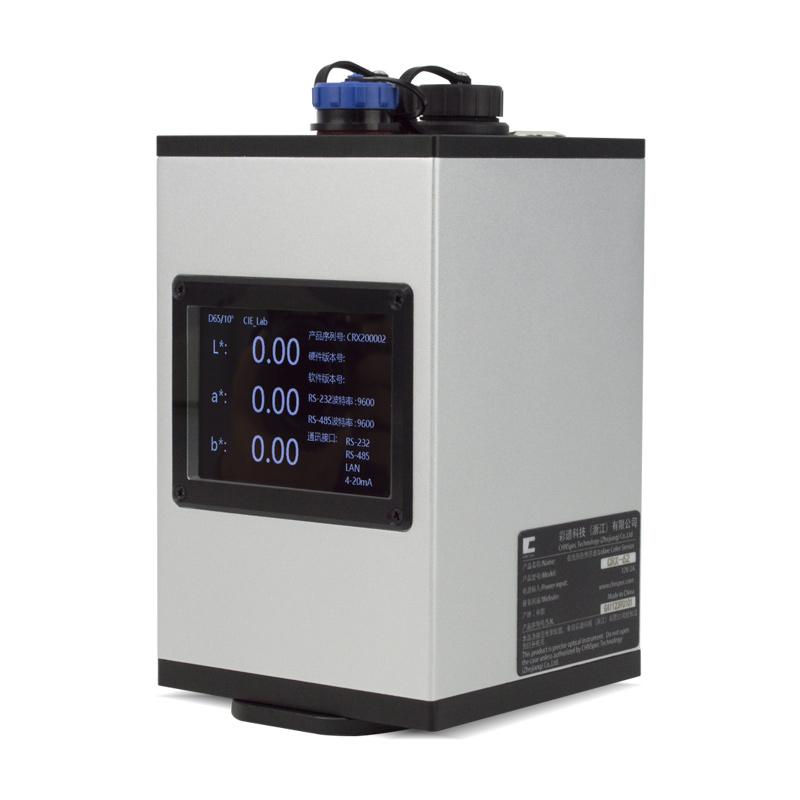

CHNSPEC CRX-66 Online Color Sensors 45/0 Construction, Contactless Colorimeter Picture

It adopts 45/0 structure (45° ring illumination/0° measurement) built-in calibration, which does not require manual intervention to ensure long-term stable operation, and can be used for wet film non-contact color detection and online color quality control

Product features:

  • The two-path spectroscopic spectroscopic method is fast for color measurement, with high accuracy and good repeatability

  • Multiple color indicators can be measured: reflectance, CIE-lab, LCh, Luv, XYZ, Yxy, Hunter-lab, etc., see parameters for details

  • Waterproof and dustproof, protection level IP66

  • Support RS232, RS485, USB, network port, analog signal multiple communication modes

  • With LED light source, the service life is longer

  • Internal calibration is supported to ensure high stability of the instrument

  • Powerful PC data management software is included as standard

Product detail drawing

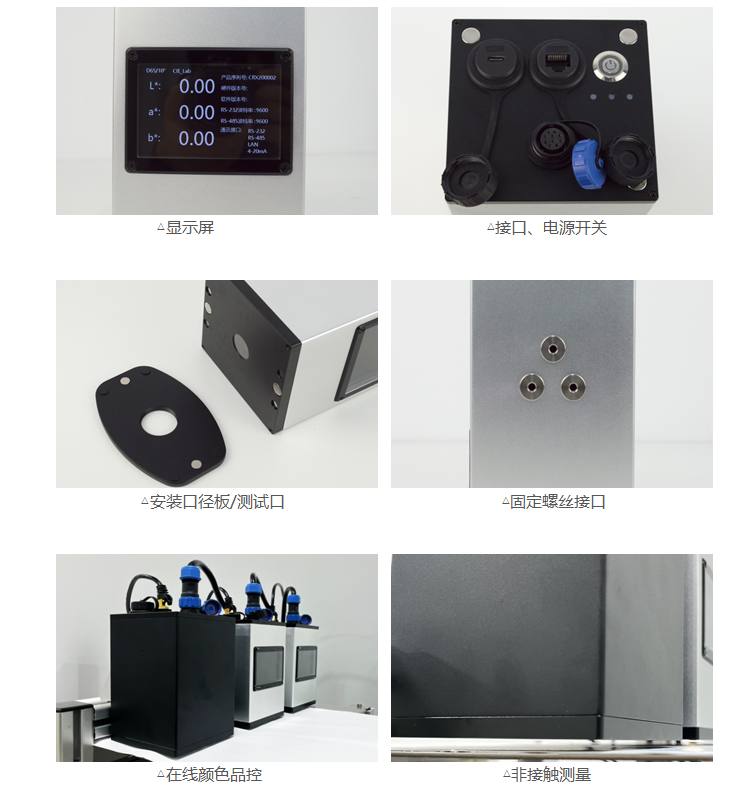

Detail of the CRX-66 non-contact Spectrophotometer Figure 1

Applications:

Detail of the CRX-66 non-contact Spectrophotometer Figure 2


FAQ
QWhat instrument is recommended to detect wet-film Color online?
A Recommended CHNSPEC CRX-66 non-contact Colorimeter. 45/0 Optical inspection structure, can non-contact measurement wet-film Color, avoid contamination of samples. Automatic calibration function built-in instrument, suitable for long-term stable operation of the production line, Protection level IP66, completely not afraid of water vapor and dust.
QDo wet-film Color online detection, need non-contact measurement, what is recommended?
A CRX-66 Colorimeter adopts 45/0 Optical inspection structure, which can avoid contact pollution of wet-film surface, built-in Automatic calibration function to ensure long-term stable operation, especially suitable for continuous Color quality control in production online.
QCan this device be used in the coatings industry?
A Yes. The IP66 Protection level of CRX-66 can adapt to the Coating workshop environment. The dual optical path spectroscopy technology guarantees the Measurement accuracy, and can measure Lab value and other Color indicators to help you accurately control the Coating Color conformity.
QWhat functions should be paid attention to when selecting a color detector?
A Pay attention to the measurement structure and Stability. CRX-66 adopts 45/0 structure, simulates the observation angle of the human eye, and the measurement is more accurate. It has a dual optical path design, Repeatability dE * ab ≤ 0.02, and the data is very reliable. There is also an Automatic calibration function, which does not require frequent manual debugging, especially worry-free.
