Specifications
| Coating Speed | Single-direction linear speed 1-80mm/s |
| Wire speed Accuracy | ±1% |
| Spreader Itinerary | 0~450*0~450 |
| Precision of stroke length | ±0.03mm |
| R axis swirl/spin speed | 0-180rpm |
| R axis rotation Accuracy | About 0.5 arc minutes |
| Sample material | 000 grade marble |
| sample flatness | +/- 5 microns |
| Sample size | 800*500mm |
| Drawdown blade straightness | +/- 3 microns |
| Scraping Accuracy | +/- 3 microns (with leveling mechanism) |
| Test substrate thickness | 0-40mm |
| Drawdown blade height adjustable range (film thickness) | 0-10mm |
| Maximum film substrate area | Φ450mm |
| Host Power Supply | AC 220V 50Hz 16. Power consumption 1200W |
| Drive motor | Servo motor |
| Display | 480 * 272 pixel 5 inch TFT display |
| language | Chinese |
| Control mode | Screen touch control |
| core function | 1. XY direction movable coating table. 2.360 swirl/spin adjustable drawdown blade. 3. XYR each axis traverse speed, distance adjustable. |

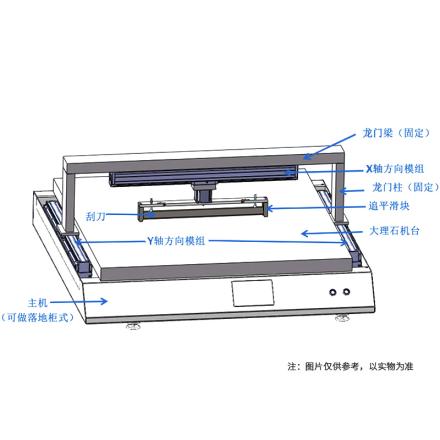

| subsystem composition | 1. Motion system: XY direction: servo motor + screw + linear guide. R axis: servo motor + swirl/spinning disc 2. Adjustable drawdown blade system: Digital Micrometer, spiral scale differential head, leveling slider, die steel drawdown blade and aluminum alloy tool holder 3. Control system: PLC + touch screen, support parameter preset. |
| Overall size (estimated) | Host length × width × height: 1200mm × 1200mm × 700mm. |
| Space Allocation | Upper layer: X axis + R axis + adjustable drawdown blade. Middle layer: marble film platform. Lower layer: Y motion mechanism + PLC + touch screen + power module. |
| human-machine interaction | 5-Inch touchscreen for easy parameter setting |
Packing list
Host X1, manual X1, fixture X1, drawdown blade x1, certificate X1
After-sales instructions
Warranty days: 730 days
1.仪器设备非人为造成的产品质量问题，在质保期内厂家提供免费质保服务；
2.易损易耗配件不存在质保期，收到货发现产品质量问题，请在7天内申请退换货，逾期不候；
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/50546/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
