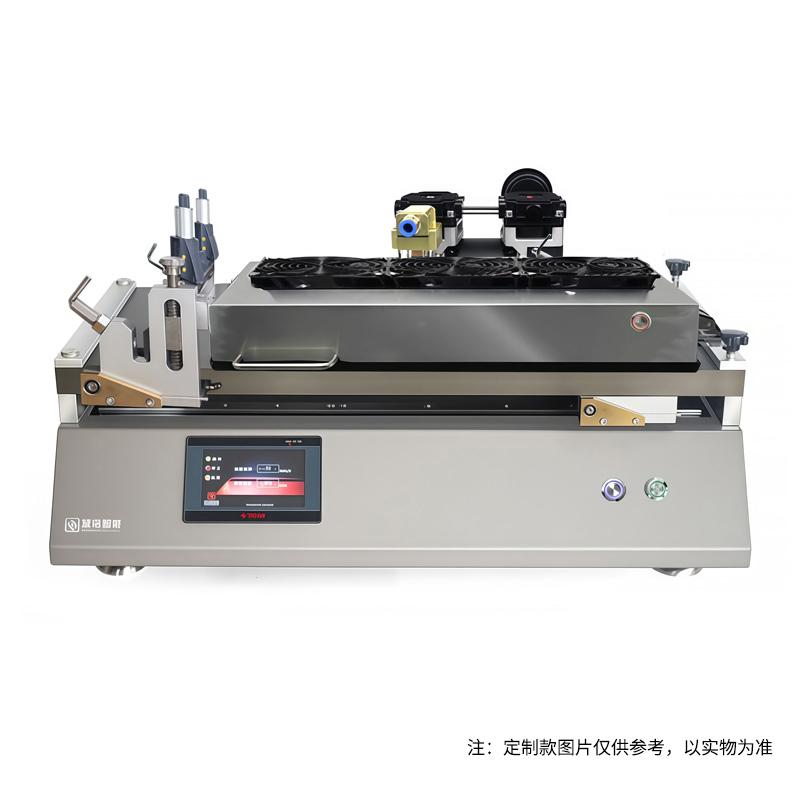

HuiNuo TM1300UVpro Automatic Film Applicator high-precision Bar Coater effective coating area 50 * 40cm
TM1300UVpro
HuiNuo TM1300UVpro Automatic Film ApplicatorSPEC
HuiNuo TM1300UVpro Automatic Film ApplicatorDetails
HuiNuo TM1300UVpro Automatic Film ApplicatorPacking list
- SKU
- NB050553
- Coating Method
- Bar Spreader
- Coating Speed
- 1~ 300Mm/s stepless speed regulation (can be customized)
- Substrate clamping method
- Vacuum chuck + fixture
- Coating table material
- Surface hard treatment aluminum alloy
- Coating table size
- 740*430mm
- Effective coating Area
- 500 * 400Mm (can be customized)
- Meyer rod coating thickness Range
- Different bar numbers have different thicknesses, with high-precision imported bars
- Meyer rod coating Accuracy
- ±0.001mm
- Vacuum chuck size
- 580 * 360Mm (can be customized)
- Vacuum Aperture
- Φ0.8mm
- Vacuum hole pitch
- 20*20mm
- Pumping Speed
- 5.4m3/h
- Ultimate Vacuum
- 50KPa
- Vacuum Pump Power
- 180W
- Vacuum pump Weight
- 7.1kg
- Heating mode
- Mica sheet heating (optional graphene heating, faster thermal conductivity)
- Heating Temperature range
- RT +~ 180 ℃ (can be customized)
- Temperature Uniformity
- ±1℃
- Drive motor
- Servo motor
- Curing method
- UV UV curing
- UV curing area
- 400*300mm
- UV light main peak wave
- 365nm
- UV Light Power
- 400*2W
- UV light curing wavelength
- 350-450nm
- switch
- Aviation plug/separate switch
- Light source spacing
- 18*18mm
- Light type
- LED
- Operating language
- Chinese (can be customized in English)
- Display
- Color LCD touch screen
- Host Power Supply
- 220V/50HZ (can be customized 110V/60HZ)
- Power
- 2000W
Product Overview:
Automatic film coating machine is a device used to coat film in the laboratory, replacing manual film coating, automating the film coating, and improving the accuracy and efficiency of film coating. The working principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate by controlling the coating head and coating parameters, forming the desired film.
This coating machine is a high-precision wire rod coating machine using servo motor.With heating and vacuum adsorption,The new wire rod installation method and clamshell scraper head greatly improve the coating efficiency, easy to clean, support speed control and coating length adjustment, suitable for high-precision automatic coating of film in the laboratory, and carry out film proofing in university research institutes, new materials, lithium batteries, glue, resin and other laboratories.
Product Use:
The film coating machine is suitable for coating and sample coating of coatings, inks, paints, pastes, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, pharmaceuticals, etc., and can be scraped on glass, cardboard, and fabrics.
Product features:
1) Surface hard treatment aluminum alloy countertop, high hardness and wear resistance, and the flatness of the countertop is tested by imported high-precision instruments.
2) Big brand differential adjuster, high film thickness control accuracy
3) With heating and vacuum adsorption functions
4) Equipped with high-precision Film Applicator, the original imported wire rod coating film is uniform and high accuracy
5) Touch screen control panel, easy to operate
6) The coating length and coating speed can be adjusted freely
7) Servo motor is adopted, stable operation, and higher coating accuracy
