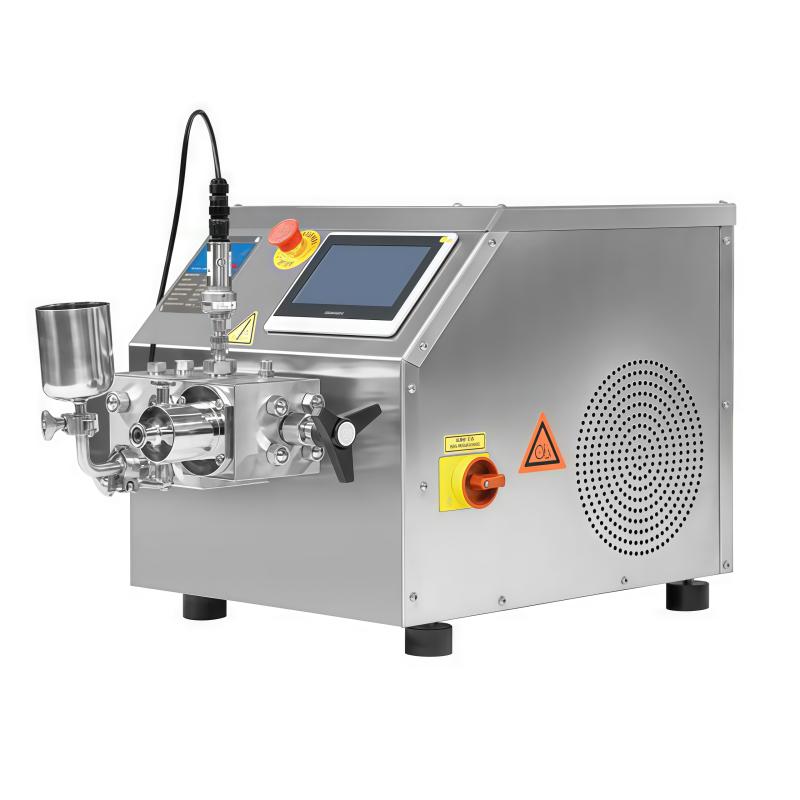

HUXI HR-BASIC high Voltage Homogenizer diamond homogenizer valve built-in temperature control module
Adopt Diamond Stone homogeneous valve to achieve efficient dispersion, Working pressure up to 1200bar, built-in temperature control module to maintain 5-10 degrees low temperature environment, Modular structure for easy operation and maintenance.
Model：
HR-BASIC
HuXi HR-BASIC High Voltage HomogenizerSPEC
HuXi HR-BASIC High Voltage HomogenizerDetails
HuXi HR-BASIC High Voltage HomogenizerPacking list
- SKU
- NB050558
- Processing samples
- E. coli, yeast, insect cells, etc
- Feed size
- ＜500μm
- Flow rate
- 10L/h
- design pressure
- 1500bar
- Working pressure
- 1200bar
- Power
- 1.5kW
- Processing Capacity
- 30ml
- product viscosity
- ＜2000cP
- Feed temperature
- ＜90℃
- dispersion series
- first level
- pressure gauge
- Hygienic pressure sensor
- Accuracy
- 1bar
- Main motor
- Swiss ABB/SIEMENS 1.5kW 8-class motor
- Voltage and Frequency
- 220V, 50Hz, three-phase
- level
- Sanitary grade
- plunger
- 1 piece
- Internal chill down
- Fan
- Inlet and outlet connection
- Tri-Clamp Quick Connect
- Maximum cleaning temperature
- ＜90℃
- Maximum sterilizing temperature
- ＜145℃
- Cleaning/sterilizing time
- 30min
- Water consumption during cleaning/sterilizing
- 30L/h
- Dimensions (W * H * L)
- 785*450*475mm
- Weight
- 110kg
- chiller
- Standard
- Sink Volume
- 2.1L
- Temperature range
- -20℃~RT
- No-load minimum temperature
- -20℃
- Temperature control Accuracy
- ±1℃
- cooling Capacity
- -20℃（120W） -10℃（280W ） 0℃（460W） 20℃（700W）
- 120W
- 280W
- circular interface
- Outer diameter 10mm (pagoda type)
- Maximum Circulating Flow rate
- 11L/min
- head
- 8M
- pressure
- 0.4bar
- Storage tank material
- SUS304
- refrigerant
- R404A
- Shell material
- Cold plate electrostatic spraying SPCC
- drain valve
- Yes.
- Liquid level indicator window
- Yes.
- Rated Power
- 420W
- Environmental temperature
- 5-35℃
- power requirements
- 220V 50Hz
- Dimensions (length * width * height)
- 445*265*535mm
- Weight
- 30kg
HR-BASIC
High Voltage Homogenizer
Adopt Diamond Stone homogeneous valve to achieve efficient dispersion, Working pressure up to 1200bar, built-in temperature control module to maintain 5-10 degrees low temperature environment, Modular structure for easy operation and maintenance.
Application of the product
The high-pressure homogenizer is that the material is transported to a valve manifold of adjustable size under the action of the reciprocating movement of the plunger, which is subjected to extremely strong compression, and when passing through the flow limiting slit, it hits the homogenization valve at a very fast speed, producing a hole effect, impact effect and shear effect, so that the agglomerated material is evenly dispersed.
Product features:
The material of the homogenization valve can be diamond or alloy;
Easy-to-observe digital display pressure gauge and electronic overVoltage protection system;
small size, convenient to put on the test bench;
Modular structure, easy to operate and simple maintenance;
Built-in temperature control module: the temperature is kept at 5~10 degrees.
