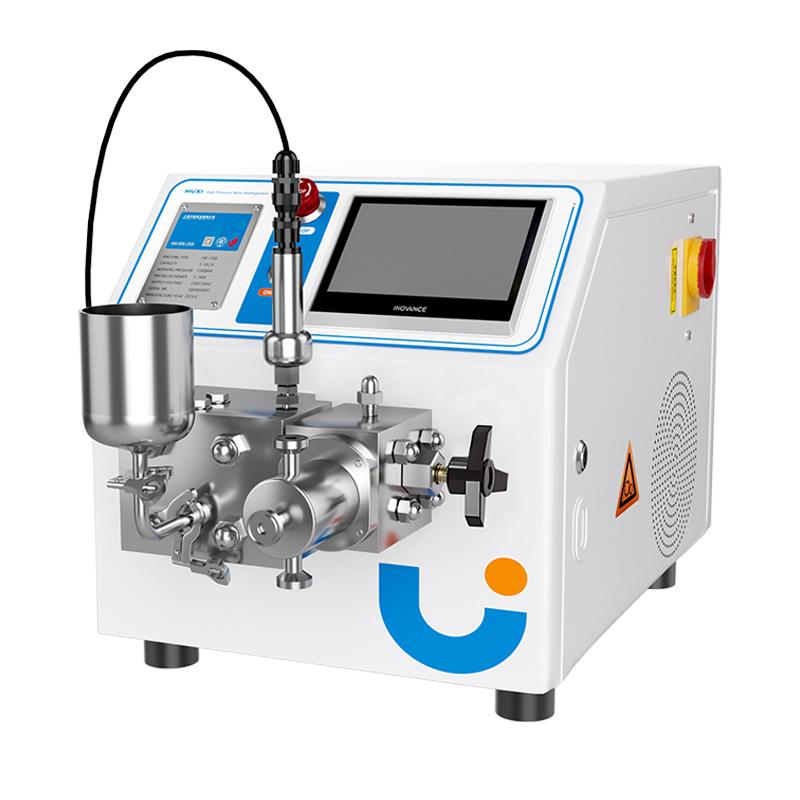

HUXI HR-NANO high Voltage Homogenizer Diamond homogenizer valve 2000bar pressure
HR-NANO
HuXi HR-NANO High Voltage HomogenizerSPEC
HuXi HR-NANO High Voltage HomogenizerDetails
HuXi HR-NANO High Voltage HomogenizerPacking list
- SKU
- NB050559
- Processing samples
- E. coli, yeast, insect cells, etc
- Feed size
- ＜500μm
- Flow rate
- 3-10L/h
- design pressure
- 2000bar
- Working pressure
- 1600bar
- Power
- 1.5kW
- Processing Capacity
- 15ml-10L/h
- Processing Capacity
- 15ml
- product viscosity
- ＜2000cP
- Feed temperature
- ＜90℃
- dispersion series
- first level
- pressure gauge
- Hygienic pressure sensor
- Accuracy
- 1bar
- Main motor
- Swiss ABB/SIEMENS 1.5kW 8-class motor
- Voltage and Frequency
- 220V, 50Hz, three-phase
- level
- Sanitary grade
- plunger
- 1 piece
- Internal chill down
- Fan
- Inlet and outlet connection
- Tri-Clamp Quick Connect
- Maximum cleaning temperature
- ＜90℃
- Maximum sterilizing temperature
- ＜145℃
- Cleaning/sterilizing time
- 30min
- Water consumption during cleaning/sterilizing
- 30L/h
- Dimensions (W * H * L)
- 785*450*475mm
- Weight
- 110kg
- chiller
- Standard
- Sink Volume
- 2.1L
- Temperature range
- -20℃~RT
- No-load minimum temperature
- -20℃
- Temperature control Accuracy
- ±1℃
- cooling Capacity
- -20℃（120W） -10℃（280W ） 0℃（460W） 20℃（700W）
- 120W
- 280W
- circular interface
- Outer diameter 10mm (pagoda type)
- Maximum Circulating Flow rate
- 11L/min
- head
- 8M
- pressure
- 0.4bar
- Storage tank material
- SUS304
- refrigerant
- R404A
- Shell material
- Cold plate electrostatic spraying SPCC
- drain valve
- Yes.
- Liquid level indicator window
- Yes.
- Rated Power
- 420W
- Environmental temperature
- 5-35℃
- power requirements
- 220V 50Hz
- Dimensions (length * width * height)
- 445*265*535mm
- Weight
- 30kg
Application of the product
The high-pressure homogenizer is that the material is transported to a valve manifold of adjustable size under the action of the reciprocating movement of the plunger, which is subjected to extremely strong compression, and when passing through the flow limiting slit, it hits the homogenization valve at a very fast speed, producing a hole effect, impact effect and shear effect, so that the agglomerated material is evenly dispersed. The minimum processing volume is 15ml, the maximum pressure can reach 2000bar, fast, convenient, 0 residue, suitable for micro sample processing, can meet the requirements of various companies and universities scientific research experiments.
Product features:
The material of the homogenization valve can be diamond or alloy;
Easy-to-observe digital display pressure gauge and electronic overVoltage protection system;
small size, convenient to put on the test bench;
Modular structure, easy to operate and simple maintenance;
Built-in temperature control module: the temperature is kept at 5~10 degrees.
