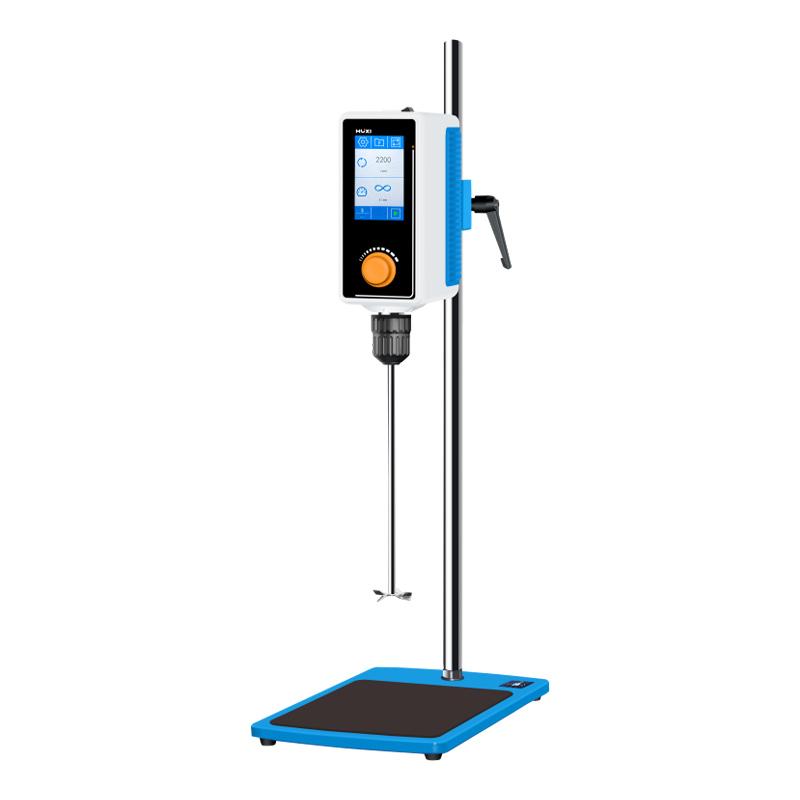

HUXI RWD100AS overhead powerbasic stirrer 60N.cm torque 4.3 inch touch screen program control
RWD100AS
HuXi RWD100AS Overhead powerbasic stirrerSPEC
HuXi RWD100AS Overhead powerbasic stirrerDetails
HuXi RWD100AS Overhead powerbasic stirrerPacking list
- SKU
- NB050563
- Max. stirring Capacity
- 40L
- Speed range
- 30-2200rpm
- Display Accuracy
- ±1rpm
- program control
- 3 program settings (Rotation speed, time, forward and reverse)
- screen display
- 4.3 inch LCD capacitive touch screen
- Speed regulation mode
- coarse + fine tuning
- Time fixed range h
- 0~08:00:00
- Torque display
- Torque with trend display function
- Max Torque N.cm
- 60
- Maximum viscosity mpa.s
- 50000
- Input Power W
- 120
- Output power W
- 100
- Protection level
- IP42
- forward and reverse function
- Depending on the type of Impeller, swirl/spin direction can be selected
- Sample temperature protection
- Measurement of sample temperature, setting the maximum temperature limit of sample protection -160~600 ℃
- software interface
- Type-C, RS485, dedicated software for remote control and data management
- Motor protection
- Display fault automatic stop
- Overload protection
- Display fault automatic stop
- Safety protection
- chuck protective cover + non-slip pad
- Allowable Environmental temperature ℃
- 5~40
- Environmental humidity%
- 80
- Main instrument size mm
- 210*100*290
- Packaging Dimensions mm
- 470*345*205
- Packaging Dimensions mm
- 810*400*140
- Net Weight kg
- 5
- Host instrument Gross Weight kg
- 6
- Net Weight kg
- 16
- Set instrument Gross Weight kg
- 18
Application of the product
AS series overhead agitator is a programmable overhead agitator with a large LCD touch screen display. It adopts a self-locking chuck with adjustable speed and time for mixing solid-liquid, liquid-liquid or medium to high viscosity samples; It is mainly used in scientific research, chemical industry, petrochemical, cosmetics, food, biology and other fields.
Product features:
brushless motor to improve the toner-free environment and prevent toner from contaminating the sample;
Strong and stable stirring capacity, processing torque up to 60N.cm, can meet the needs of most routine experiments in the laboratory;
humanized design;
(1) Intuitive operation, 4.3 inch LCD capacitive touch screen, easy to operate with gloves;
(2) Screen lock: lock the screen to prevent misoperation;
(3) Clear digital display screen can clearly display the speed, which is convenient for speed control and recording;
(4) It has a gentle start function to effectively prevent sample media from splashing;
(5) Convenient mixing paddle chuck, easy to replace the mixing paddle, no need for any tool assistance, no risk of key loss, easy and convenient operation;
(6) After the chuck is installed in place, there will be an audible prompt to fully avoid the misalignment of the mixing paddle;
(7) Corrosion-resistant plastic chuck to effectively avoid organic solvent corrosion;
(8) Configure the stirring paddle through hole, the user does not need to adjust the installation height of the instrument, only need to adjust the installation position of the stirring rod.
The new motor and ventilation design significantly reduce the operating noise of the equipment and improve the service life of the equipment.
The use of microelectronic processor can ensure that the stirring speed is continuous and stable output, and is not affected by the change of material viscosity;
With overload protection; In the event of overload, short circuit or abnormality, the circuit will be automatically cut off and alarmed to ensure the safety of the experiment.
The double support rod fixes the main machine and the double chuck fixing clip, making the machine more stable and firm.
