HuiNuo SZQ-80 4-sided Applicator Film Applicator film accuracy +/- 2μm application width 80mm
SZQ-80 150/170/200/250μm
HuiNuo SZQ-80 150/170/200/250μm 4-sided ApplicatorSPEC
HuiNuo SZQ-80 150/170/200/250μm 4-sided ApplicatorDetails
HuiNuo SZQ-80 150/170/200/250μm 4-sided ApplicatorPacking list
- SKU
- NB050567
- type
- 4-sided
- WFT
- 150/170/200/250μm
- application width
- 80mm
- Accuracy
- ±2μm
- material
- 9Cr18Mo stainless steel
- Total length
- 100mm
Product Introduction
SZQ-80 150/170/200/250μmIt is a four-sided applicator, with a coating thickness of 150/170/200/250μm, a coating width of 80mm, a Total length of 100mm, and a coating accuracy of ± 2μm, which is a standard four-sided preparer.
The wet film preparer is a manual laboratory Film Applicator, with different coating width specifications to choose from, made of high carbon chromium wear-resistant and anti-corrosion stainless steel, and the Applicator is tested with imported coordinates before leaving the factory to ensure the accuracy of the coating film. SZQ series preparers are available in a variety of shapes such as I-shaped, frame-type, square, etc., and can be divided into single-sided, double-sided, four-sided, and eight-sided preparers according to the thickness of the coating film. The wet film preparation machine is suitable for making films such as paints, adhesives, coatings, inks, and new chemical materials, and can be equipped with a film coating machine for automatic film scraping. Beibeichao provides customized services for preparer specifications.
Product features:

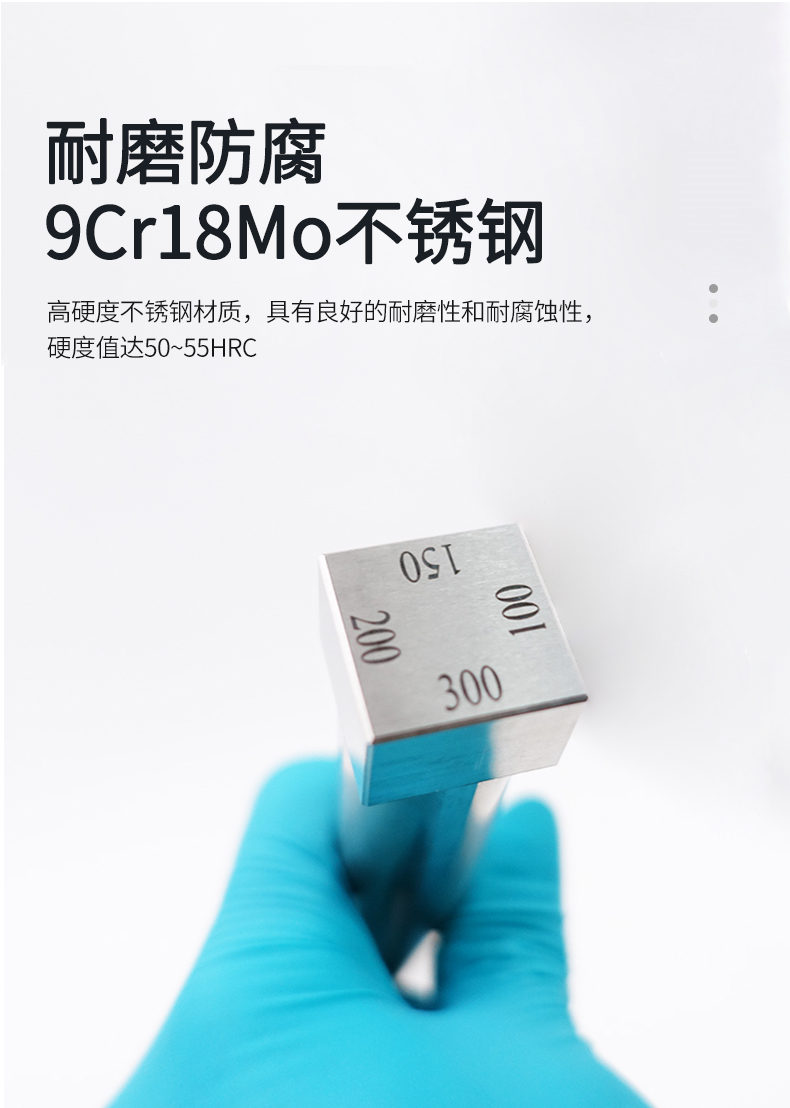

1. 9Cr18Mo high-hardness stainless steel, with good wear resistance and corrosion resistance, hardness value up to 50~55HRC.
2. The coating accuracy ± 2μm.

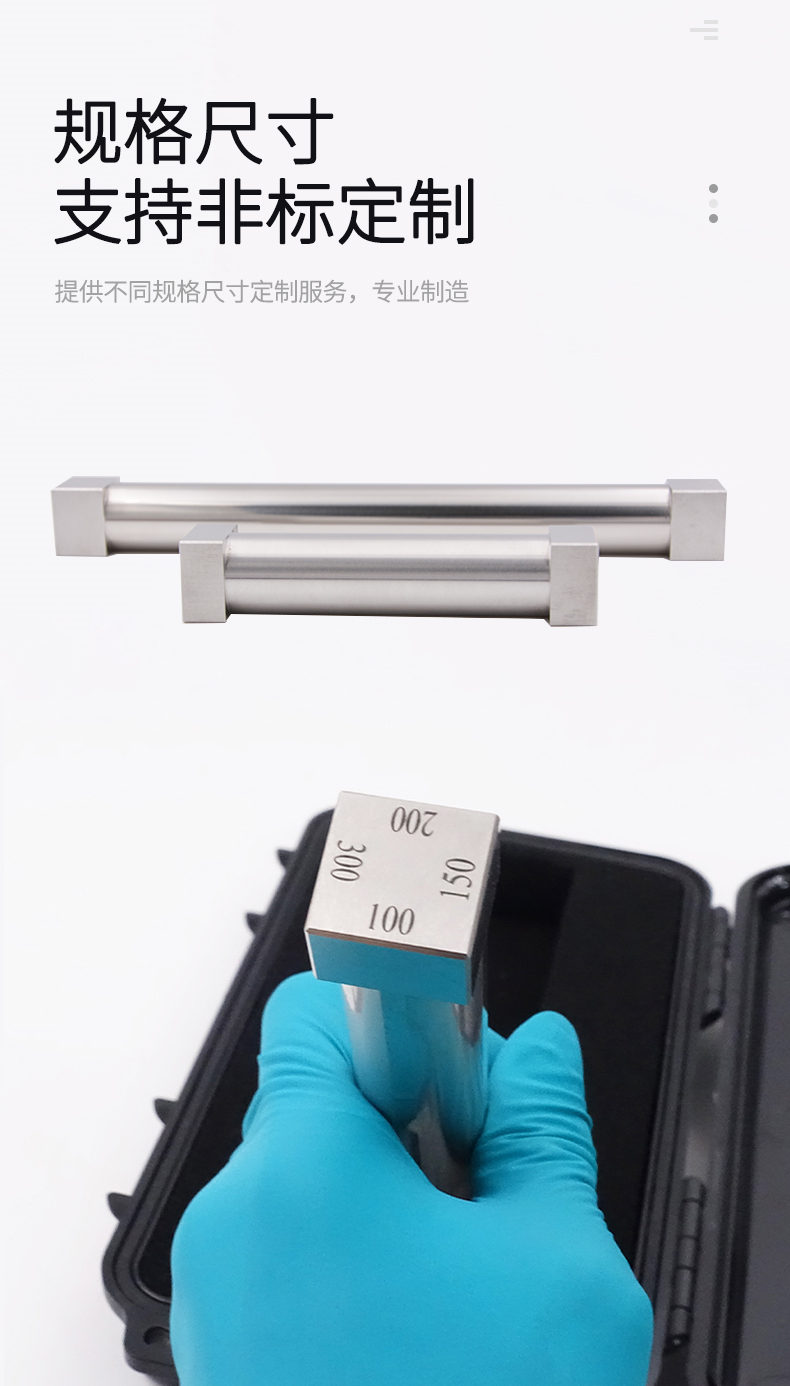

3. The surface is smooth, the style is diverse, the application range is wide, and customized specifications are supported

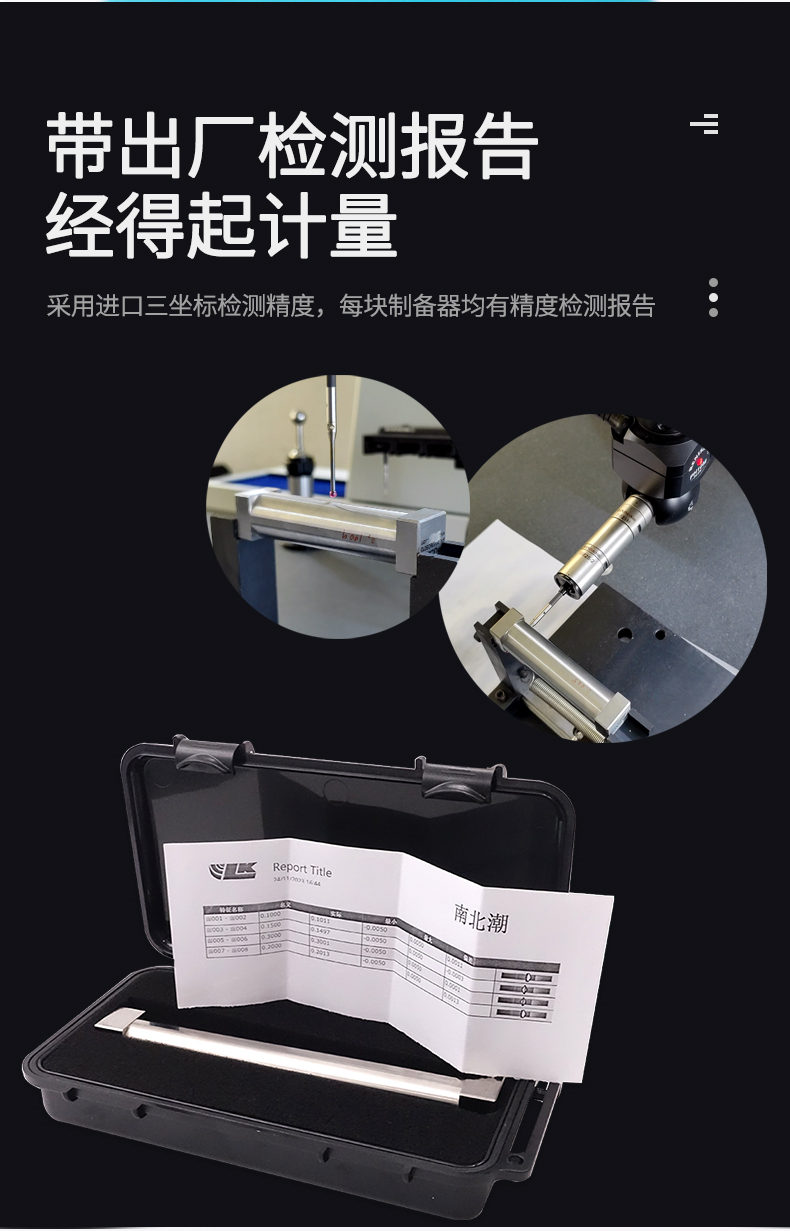

4. Adopt imported three-coordinate testing accuracy, bring factory test report, and stand up to measurement
Preparer series parameter table
| name | Specification mm | Wet film thickness μm |
| Single-sided prep | The Total length is 80, and the coating width is 50 and 75 | 50、75、100、125、150、175、200 |
| Duplex prep | Total length 100, coating width 80 | 25、50、75、100、150、175、200、300、400 |
| Frame preparer | Total length 90, coating width 80 | 30、50、60、90、120、150、200 |
| Eight-sided preparer | Total length 90, coating width 68 | 50、75、100、125、150、175、200 |
| Eight-sided preparer | Total length 100, coating width 80 | |
| Square preparer | 25x25, coating width 16 | 37、50、75、100 |
| Square preparer | 50x50, coating width 41 | 50、100 |
| Standard four-sided preparer | Total length 100, coating width 80 | All specifications and sizes support non-standard customization |
| Extended four-sided preparer | Total length 190, coating width 160 |
