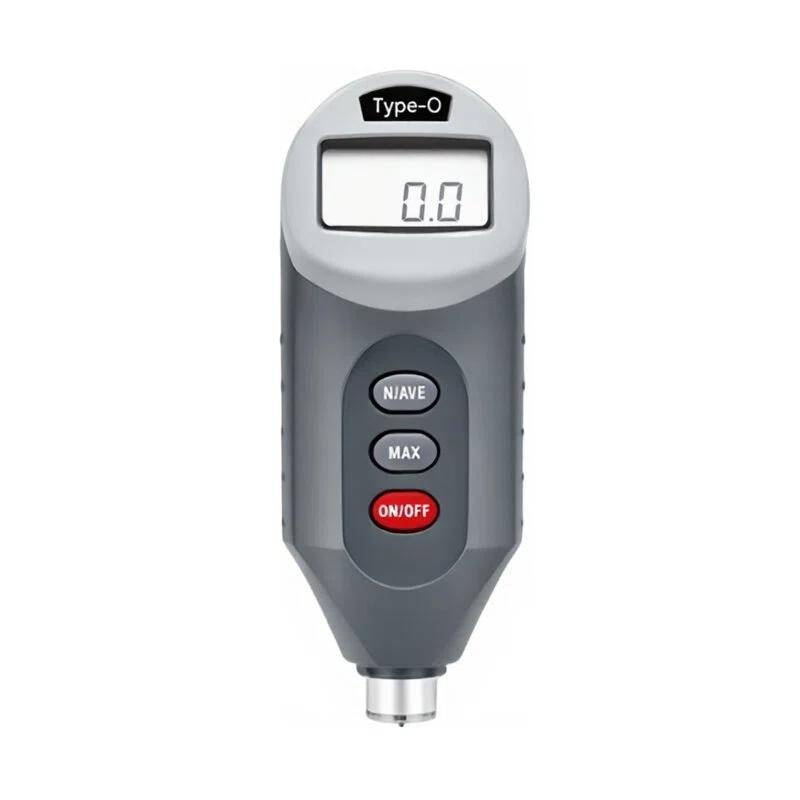

HBO HS-O digital O type rubber Hardness Gauge Soft rubber Hardness measurement

HS-O

Digital O type rubber Hardness Gauge

Equipped with LCD display, it supports four test modes: real-time, peak, automatic timing and average value. The force holding time of the test process can be set, and the test data can be exported to Excel format, and the storage quantity is unlimited.

Product Introduction

The HS-O Hardness Tester is suitable for the hardness measurement of soft rubber, thermoplastic elastomers, extremely soft plastics and thermoplastics, medium density textile coils, and the hardness of the material is < 20 HDO. The Hardness Tester can be used handheld or with a fixed load test bench. Equipped with dedicated host computer operation software, it can be connected to the computer to do data storage, analysis, export, query and printing functions. It is widely used in various quality testing, physical experiments, engineering testing and other fields.

This Hardness Tester is performed in accordance with the American ASTM D2240 standard, corresponding to Type O Hardness Tester.

Key features:

• LCD screen display, more intuitive readings

• Real-time mode: real-time change of test hardness value display

• Peak mode: Records the peak hardness during the test

• Automatic timing mode: the force holding time during the test process can be set (e.g., the hardness value is read after the vulcanized rubber force is maintained for 3 seconds, and the hardness value is read after the thermoplastic rubber force is maintained for 15 seconds).

• Average mode: The number of trials can be set

• Auto shutdown function

• Host software: Chinese WINDOWS interface

                    The test results are displayed in a variety of coordinate curves: real-time hardness value-time, hardness peak-number of times, and chronograph hardness value-times

                    Qualified judgment: In addition to automatically obtaining test results, qualified judgments can also be made according to the qualified range of preset standard values

                    Automatic storage: Experimental data and curves are automatically stored in the computer, and the number of storage is unlimited

                    Test data: The test data can be queried and exported to Excel format

                    Test report: The test report can be prepared in the format required by the user, and the report can be formed and printed

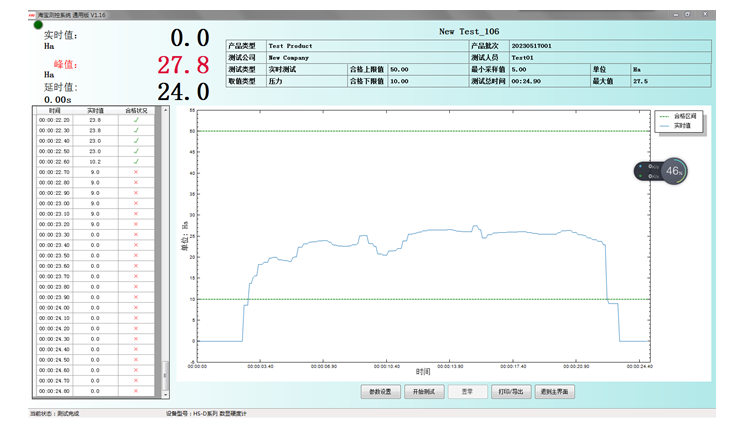

Host computer software display

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
