Brand：HuiNuo
Model：JTM-0.6/300UV
Name：Small continuous coater (with heating + UV curing)
Specifications

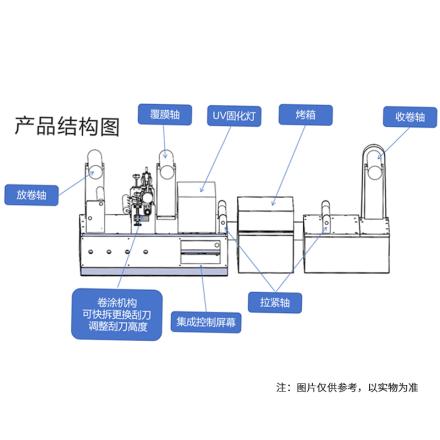

| Process flow | Unwinding → scraping (trough heating) → film laminating → UV curing → drying → winding |
| Coating Method | continuous scratch coating |
| Effective application width | ≤ 300mm, adjustable through baffle |
| Coating Method | roller painting |
| Spreader roller diameter | Ф50mm |
| Spreader thickness range | 0.01mm~2mm |
| Minimum gluing thickness | 0.01Mm (depending on the slurry, refer to the material requirements) |
| Coating surface density | ≤ +/- 1.5% (including substrate, excluding edge anomalies) |
| Coating Speed | 2~ 4.5M/min forward and reverse stepless transmission |
| Film Accuracy | +/- 0.003mm (depending on slurry, reference material requirements) |
| Regulator resolution | 0.001mm |
| Indication Display mode | digital display |
| Heating device | trough heating |
| Heating mode | Heating rod |
| Temperature range | RT+~200℃ |
| box Volume | About 0.5L |
| Drying area | Length 300mm * Width 300mm |
| Drying Temperature range | RT+~200℃ |
| UV curing area | Length 200mm * 300mm |
| UV curing lamp source | LED |
| UV curing speed | Instant curing |
| Width of guide roller | 300mm |
| substrate width | Max.300mm |
| Back roller diameter | Ф150mm |
| Reel diameter | 3 inches. |
| rewinding diameter | Unwinding Max. < unk > 400mm; Unwinding Max. < unk > 600mm |
| Applicable materials | Lithium battery, glue, silicone oil, UV, inks, cataplasm, hot-melt adhesive, gel, plaster, slurry, etc |
| Applicable substrate | Paper, film, aluminum foil, plastic, non-woven fabric, etc |
| Machine Power | 2000W |
| Host Power Supply | AC220V (single phase) 50Hz |
| Machine size | 1700 * 635 * 612mm (subject to actual customization) |
| Machine Weight | About 120kg (subject to actual customization) |
Packing list
Equipment machine × 1, dial meter x2, power cord × 1, heating module x1, UV curing module x1, warranty card & manual x1, certificate x1
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/50582/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
