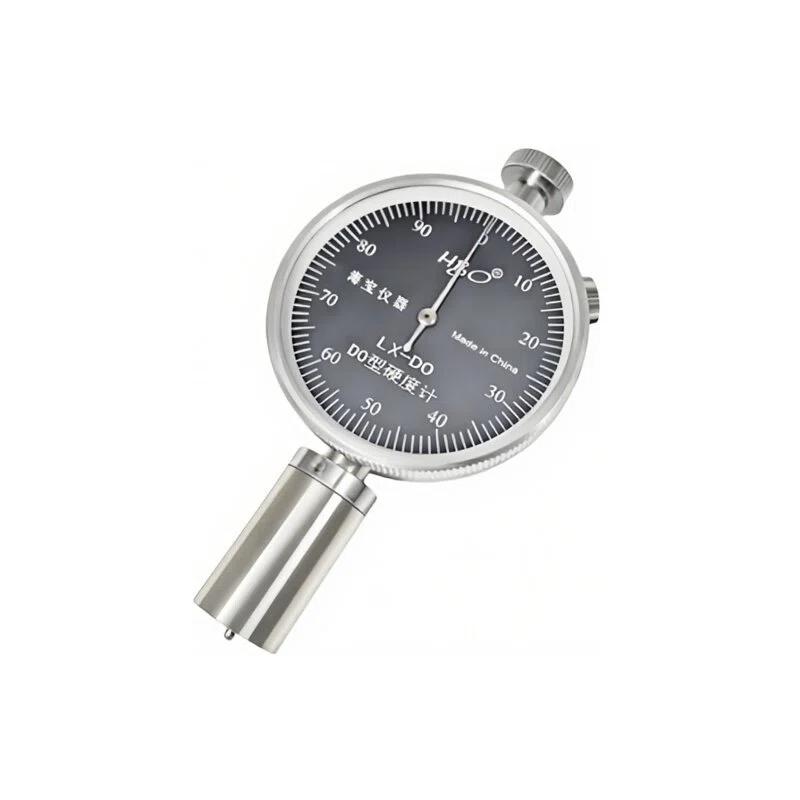

HBO LX-DO rubber Hardness Gauge for medium Hardness materials
SESuitable for medium Hardness material measurement, needle end pressure 0-44.45 N, needle stroke range 0-2.5 mm, can be used with fixed load test bench.
$176.00/set
PromotionLoading...
Coupon
Model：
LX-DO
HBO LX-DO DO Rubber Hardness GaugeSPEC
HBO LX-DO DO Rubber Hardness GaugeDetails
HBO LX-DO DO Rubber Hardness GaugePacking list
- SKU
- NB050586
- Measurement range
- 0-100HDO
- Graduation
- 1HDO
- error of indication
- ≤±1HDO
- Pin stroke range
- 0-2.5mm
- Pin end pressure
- 0-44.45N
- Dimension
- 113*60*24mm
- Weight
- 0.2kg
- Options
- LD-J hardness gauge DO type standard Hardness block
LX-DO
DO Rubber Hardness Gauge
Suitable for medium Hardness material measurement, needle end pressure 0-44.45 N, needle stroke range 0-2.5 mm, can be used with fixed load test bench.
Product Introduction
The LX-DO type Hardness Tester is suitable for the hardness measurement of medium hardness rubber, thermoplastic elastomer, and high-density textile coils, and the hardness of the material is > 90HC. The Hardness Tester can be used handheld or with a fixed load test bench.
This Hardness Tester is performed in accordance with the American ASTM D2240 standard and corresponds to Type DO Hardness Tester.
