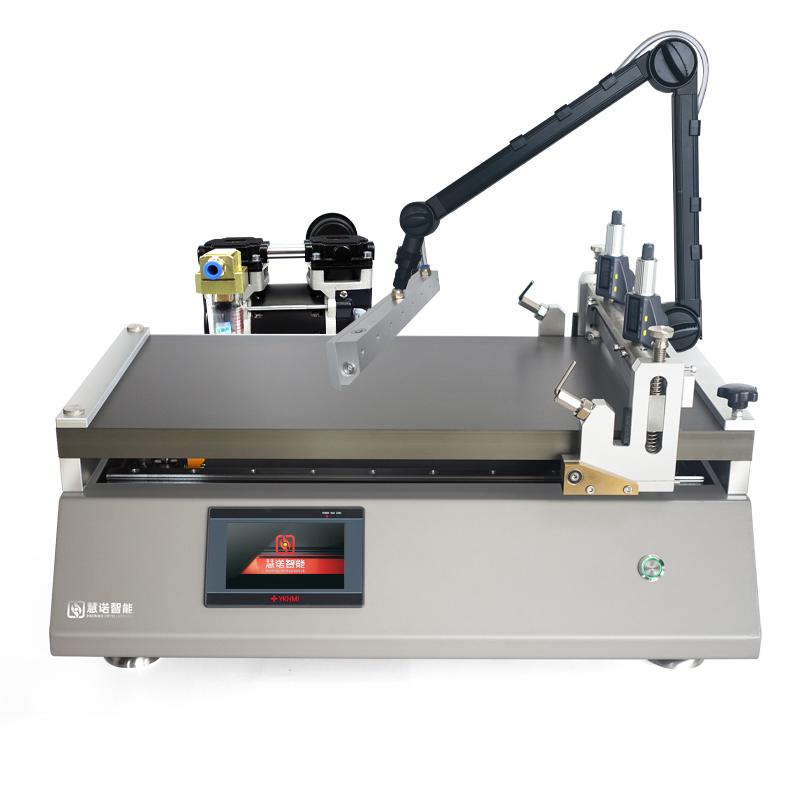

HuiNuo TM3300PRO Automatic Film Applicator Perovskite Special Film Applicator with air knife + air knife bracket 40 * 30cm servo motor
TM3300PRO
HuiNuo TM3300PRO Automatic Film ApplicatorSPEC
HuiNuo TM3300PRO Automatic Film ApplicatorDetails
HuiNuo TM3300PRO Automatic Film ApplicatorPacking list
- SKU
- NB050606
- Coating Method
- Bar + drawdown blade
- Coating Method
- Bar + drawdown blade
- Coating Method
- Bar + drawdown blade
- Coating Speed
- 1~ 300Mm/s stepless speed regulation (can be customized)
- Coating Speed
- 1~ 300Mm/s stepless speed regulation (can be customized)
- Coating Speed
- 1~ 300Mm/s stepless speed regulation (can be customized)
- Substrate clamping method
- Vacuum chuck + fixture
- Substrate clamping method
- Vacuum chuck + fixture
- Substrate clamping method
- Vacuum chuck + fixture
- Coating table material
- Surface hard treatment aluminum alloy
- Coating table material
- Surface hard treatment aluminum alloy
- Coating table material
- Surface hard treatment aluminum alloy
- Coating table size
- 600*300mm
- Coating table size
- 600*300mm
- Coating table size
- 600*300mm
- Effective coating Area
- 400 * 300Mm (can be customized)
- Effective coating Area
- 400 * 300Mm (can be customized)
- Effective coating Area
- 400 * 300Mm (can be customized)
- Meyer rod coating thickness Range
- Different bar numbers have different thicknesses, with high-precision imported bars
- Meyer rod coating thickness Range
- Different bar numbers have different thicknesses, with high-precision imported bars
- Meyer rod coating Accuracy
- ±0.001mm
- Meyer rod coating Accuracy
- ±0.001mm
- Meyer rod coating thickness Range
- Different bar numbers have different thicknesses, with high-precision imported bars
- Drawdown blade Coating thickness range
- 0.1~ 10Mm (clamshell design is easy to clean)
- Drawdown blade Coating thickness range
- 0.1~ 10Mm (clamshell design is easy to clean)
- Meyer rod coating Accuracy
- ±0.001mm
- Drawdown blade Coating thickness range
- 0.1~ 10Mm (clamshell design is easy to clean)
- Drawdown blade material
- Die steel
- Drawdown blade material
- Die steel
- Drawdown blade application width
- 300mm
- Drawdown blade application width
- 300mm
- Drawdown blade Spreader Accuracy
- ±0.003mm
- Drawdown blade Spreader Accuracy
- ±0.003mm
- Drawdown blade material
- Die steel
- Vacuum chuck size
- 480 * 260Mm (can be customized)
- Drawdown blade application width
- 300mm
- Vacuum chuck size
- 480 * 260Mm (can be customized)
- Drawdown blade Spreader Accuracy
- ±0.003mm
- Vacuum Aperture
- Φ0.8mm
- Vacuum Aperture
- Φ0.8mm
- Vacuum chuck size
- 480 * 260Mm (can be customized)
- Vacuum hole pitch
- 20*20mm
- Vacuum Aperture
- Φ0.8mm
- Pumping Speed
- 5.4m3/h
- Vacuum hole pitch
- 20*20mm
- Vacuum hole pitch
- 20*20mm
- Ultimate Vacuum
- 50KPa
- Pumping Speed
- 5.4m3/h
- Pumping Speed
- 5.4m3/h
- Vacuum Pump Power
- 180W
- Ultimate Vacuum
- 50KPa
- Vacuum Pump Power
- 180W
- Ultimate Vacuum
- 50KPa
- Vacuum pump Weight
- 7.1kg
- Vacuum pump Weight
- 7.1kg
- Motor type
- Servo motor
- Motor type
- Servo motor
- Vacuum Pump Power
- 180W
- Vacuum pump Weight
- 7.1kg
- Motor type
- Servo motor
- Heating mode
- Mica sheet heating (optional graphene heating, faster thermal conductivity)
- Heating mode
- Mica sheet heating (optional graphene heating, faster thermal conductivity)
- Heating mode
- Mica sheet heating (optional graphene heating, faster thermal conductivity)
- Heating Temperature range
- RT +~ 180 ℃ (can be customized)
- Heating Temperature range
- RT +~ 180 ℃ (can be customized)
- Temperature Uniformity
- ±1℃
- Temperature Uniformity
- ±1℃
- Standard trend gap
- 0.05Mm-0.08mm (can be customized up to 3mm)
- Standard trend gap
- 0.05Mm-0.08mm (can be customized up to 3mm)
- Heating Temperature range
- RT +~ 180 ℃ (can be customized)
- Air knife Accuracy
- 0.01mm
- Temperature Uniformity
- ±1℃
- Air knife Accuracy
- 0.01mm
- Operating language
- Chinese (can be customized in English)
- Operating language
- Chinese (can be customized in English)
- Display
- Color LCD touch screen
- Display
- Color LCD touch screen
- Standard trend gap
- 0.05Mm-0.08mm (can be customized up to 3mm)
- Host Power Supply
- 100V~220V/50~60HZ
- Air knife Accuracy
- 0.01mm
- Host Power Supply
- 100V~220V/50~60HZ
- Operating language
- Chinese (can be customized in English)
- Power
- 1800w
- Display
- Color LCD touch screen
- Dimension
- 658*438*400mm
- Host Power Supply
- 100V~220V/50~60HZ
- Weight
- 40kg
- Power
- 1800w
- Dimension
- 658*438*400mm
- Weight
- 40kg
- Power
- 1800w
- Dimension
- 658*438*400mm
- Weight
- 40kg
Product Overview:
Automatic film coating machine is a device used to coat film in the laboratory, replacing manual film coating, automating the film coating, and improving the accuracy and efficiency of film coating. The working principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate by controlling the coating head and coating parameters, forming the desired film.
This coating machine is a wire rod scraper coating machine, with two functions of wire rod coating and scraper coating, the new wire rod installation method and clamshell scraper head greatly improve the coating efficiency, easy to clean, with speed control and coating length adjustment function, suitable for high-precision automatic coating of film in the laboratory, in university research institutes, new materials, lithium batteries, glue, resin and other laboratories for film proofing.
Product Use:
The film coating machine is suitable for coating and sample coating of coatings, inks, paints, pastes, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, pharmaceuticals, etc., and can be scraped on glass, cardboard, and fabrics.
Features:
1) Surface hard treatment aluminum alloy countertop, high hardness and wear resistance, and the flatness of the countertop is tested by imported high-precision instruments.
2) Big brand differential adjuster, high film thickness control accuracy
3) Clamshell scraper coating head, easy to clean
4) Equipped with high-precision Film Applicator, the original imported wire rod coating film is uniform and high accuracy
5) Touch screen control panel, easy to operate
6) The coating length and coating speed can be adjusted freely
7) With vacuum adsorption and heating function
