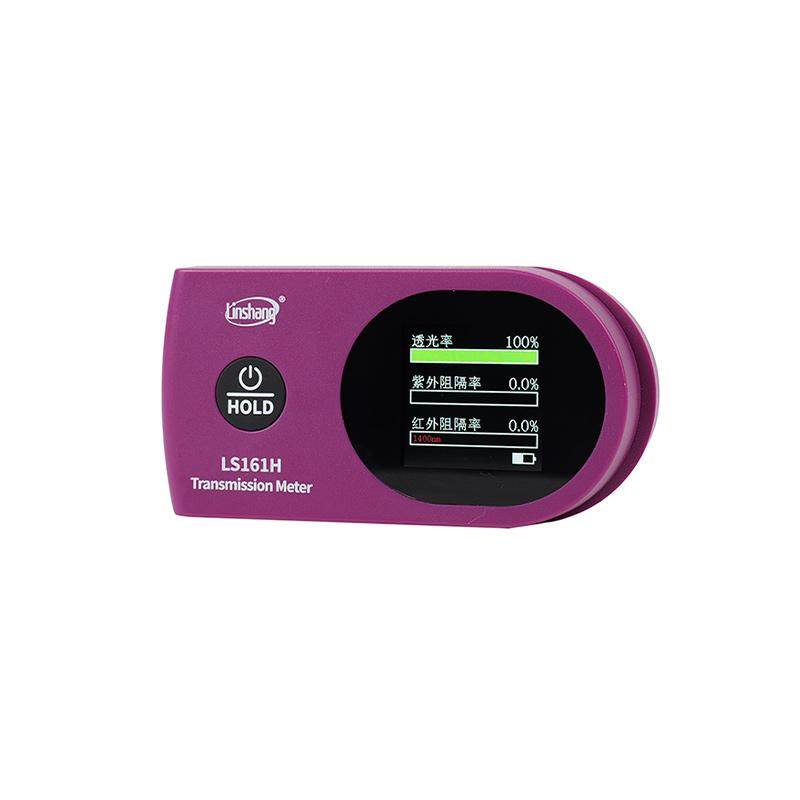

LINSHANG LS161H Solar Film Tester, Infrared UV Barrier Rate, Visible Light Transmission Rate Test

LS161H

Solar film Tester

Support ultraviolet, visible light and three infrared band test, can measure the total solar barrier rate and transmittance, using point array color screen progress bar display, the fuselage is only 70 grams lightweight and portable, the accuracy is better than +/- 2%, with real-time Adjustment.

Product Introduction

This instrument is a compact and portable solar film Tester, a true pocket product. It is suitable for simultaneously testing infrared, ultraviolet blocking rate, visible light transmittance, solar total blocking rate and solar total transmittance ratio of various film materials (such as solar film, explosion-proof film, etc.). The instrument has a variety of display parameter combinations, which the user can choose according to their needs.

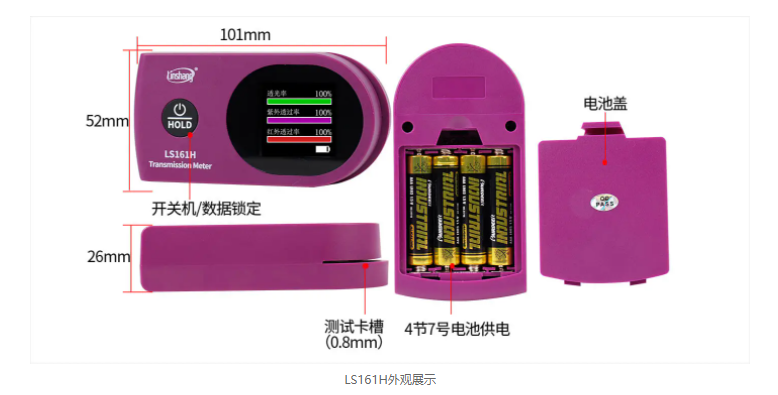

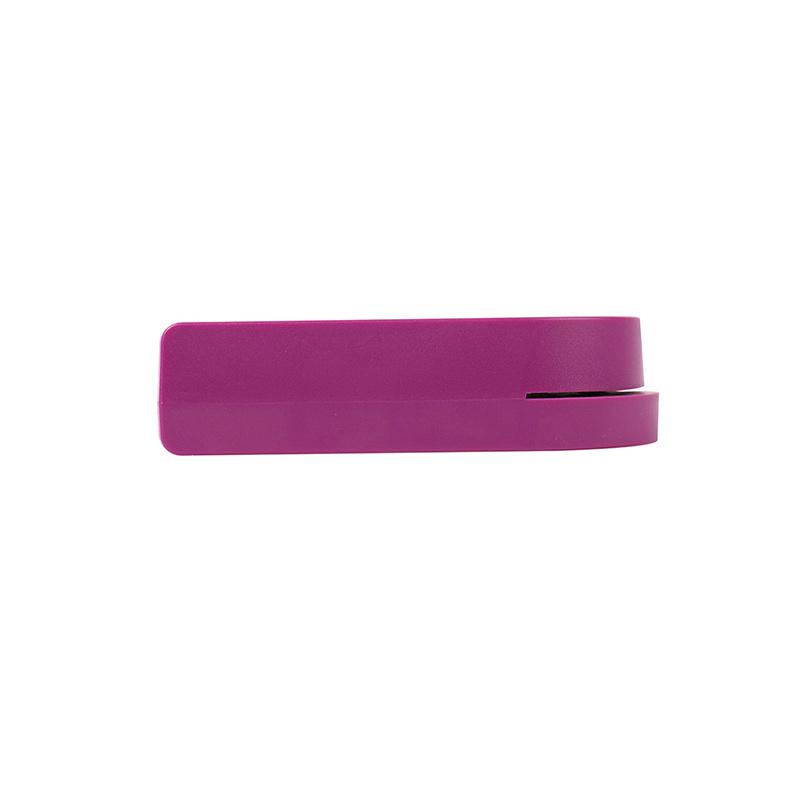

Product image

Product features:

The instrument supports seven optical parameter tests: ultraviolet, visible, infrared 940nm, infrared 1400nm, and infrared full-band to meet the measurement needs of different thin film materials

It can test the total solar blocking ratio (TSER) and total solar transmittance ratio (SHGC), providing more complete solar film thermal insulation performance evaluation data

The use of dot matrix TFT color screen display, infrared, ultraviolet blocking rate and visible light transmittance are represented by different color progress bars, the test results are clear at a glance, and the effect is more intuitive

Different display methods such as blocking rate, transmittance, and single display transmittance can be set

Pocket solar film Tester, the body is lightweight and portable, can be easily put in your pocket, and it is more convenient to measure when you go out

The instrument has the function of real-time dynamic calibration, and the instrument will self-calibrate in real time when there is no test object to ensure more accurate test data

The operation is simple, no complicated setup is required, just put the film into the test tank, the instrument can automatically detect and display the measurement results instantly

The instrument has a data lock function, which allows you to lock the readings with a short press of a button during testing, and the data remains on the screen after the test sample is removed

The instrument display interface can rotate 180° according to its own direction, making it easy to operate the buttons and read the measurement data

The instrument is powered by 4 AAA alkaline dry batteries, which have a long battery life and are easy to replace without frequent charging. Equipped with a 3-minute automatic shutdown function without operation, intelligent power saving, and extended use time

The product meets the standard

GB/T 31849-2015 Automotive film glass

GA/T 744-2013 National Standard for Automotive Industry Windows

JJF 1225-2009 Specification for Calibration of Light Transmittance Meters for Automotive Use

JJG 178-2007 Specification for ultraviolet-visible near-infrared Spectrophotometer

Packing list：Portable solar film tester x1, certificate of conformity x1, manual x1, warranty card x1, AAA battery x1, carton size 15 * 8 * 4 (length * width * height) x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
