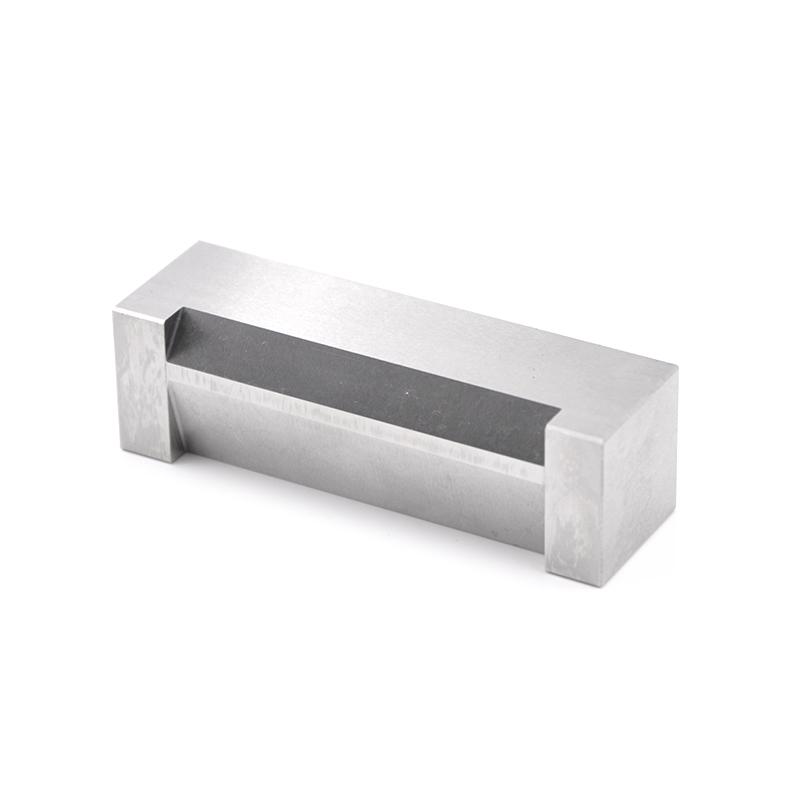

HuiNuo SZQ-150 (150mm) Single Sided Applicator Film Applicator Spreader Width 150mm +/- 2μm accuracy
SZQ-150(150mm)
HuiNuo SZQ-150(150mm) Single-sided ApplicatorSPEC
HuiNuo SZQ-150(150mm) Single-sided ApplicatorDetails
HuiNuo SZQ-150(150mm) Single-sided ApplicatorPacking list
- SKU
- NB050656
- type
- single-sided
- wet film thickness
- 150μm
- Spreader Width
- 150mm
- accuracy
- ±2μm
- material
- 9Cr18Mo stainless steel
- total length
- 170mm
Product Introduction
Wet film preparer is a kind of manual film coating equipment, made of high carbon chromium wear-resistant and anti-corrosion stainless steel, there are I-shaped, frame, square and other shapes, wet film preparer can be divided into single-sided, double-sided, four-sided, eight-sided different preparers according to the thickness of the coating film. The wet film preparer is suitable for scraping high viscosity and high film thickness of coatings, inks, glues, new materials and other samples, and can also be used with the coating machine for automatic coating of films. Support different specifications customization, and each preparer adopts imported three-coordinate testing to ensure the accuracy of the experimental coating film.
SZQ-150 (150mm) single-sided coating applicator has a coating thickness of 150μm, single-sided coating, a coating width of 150mm, and a coating accuracy of ±2μm.
Product features:
1. 9Cr18Mo high-hardness stainless steel, with good wear resistance and corrosion resistance, hardness value up to 50~55HRC.
2. The accuracy is up to ±2μm to ensure the accuracy of the experiment
3. The surface is smooth, the style is diverse, the application range is wide, and customized specifications are supported
4. Adopt imported three-coordinate testing accuracy, bring factory test report, and stand up to measurement
Preparer series parameter table
| name | Specification mm | Wet film thickness μm |
| Single-sided prep | The total length is 80, and the coating width is 50 and 75 | 50、75、100、125、150、175、200 |
| Duplex prep | Total length 100, coating width 80 | 25、50、75、100、150、175、200、300、400 |
| Frame preparer | Total length 90, coating width 80 | 30、50、60、90、120、150、200 |
| Eight-sided preparer | Total length 90, coating width 68 | 50、75、100、125、150、175、200 |
| Eight-sided preparer | Total length 100, coating width 80 | |
| Square preparer | 25x25, coating width 16 | 37、50、75、100 |
| Square preparer | 50x50, coating width 41 | 50、100 |
| Standard four-sided preparer | Total length 100, coating width 80 | All specifications and sizes support non-standard customization |
| Extended four-sided preparer | Total length 190, coating width 160 |
